Driver Side Door Entry Unlock Function does not Operate [08/2013 - ]: Procedure

  1. CHECK POWER DOOR LOCK OPERATION
    1. When the master switch assembly door control switch is operated, check that the locked doors unlock.

      OK

      Door locks operate normally.

    NG → See step   9

    OK: Go to next step

  2. READ VALUE USING TECHSTREAM (TOUCH SENSOR)
    1. Using the Techstream, read the Data List.
      SMART ACCESS

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      D-Door Touch Sensor Driver side door touch sensor / ON or OFF ON: Touch sensor touched
      OFF: Touch sensor not touched      		 -

      OK

      "ON" (sensor is touched) and "OFF" (sensor is not touched) appears on the screen.

    NG → See step   3

    OK → See step   10

  3. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU [SMART KEY ECU ASSEMBLY] - DOOR ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the E29 ECU connector.

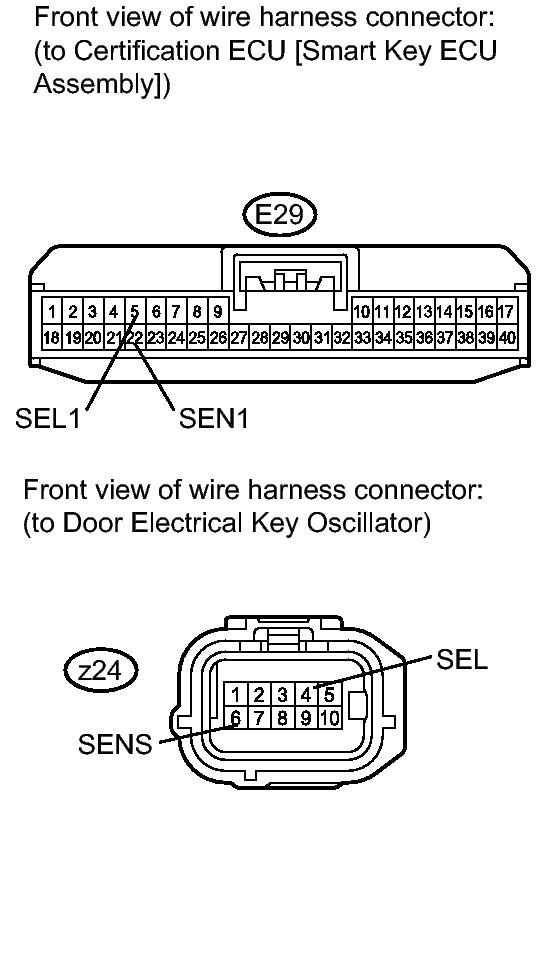

      GTY123850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the z24 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E29-5 (SEL1) - z24-4 (SEL) Always Below 1 Ω
      E29-22 (SEN1) - z24-6 (SENS) Always Below 1 Ω
      E29-5 (SEL1) - Body ground Always 10 kΩ or higher
      E29-22 (SEN1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (DOOR ELECTRICAL KEY OSCILLATOR - FRONT DOOR OUTSIDE HANDLE)
    1. Disconnect the z23 handle connector.

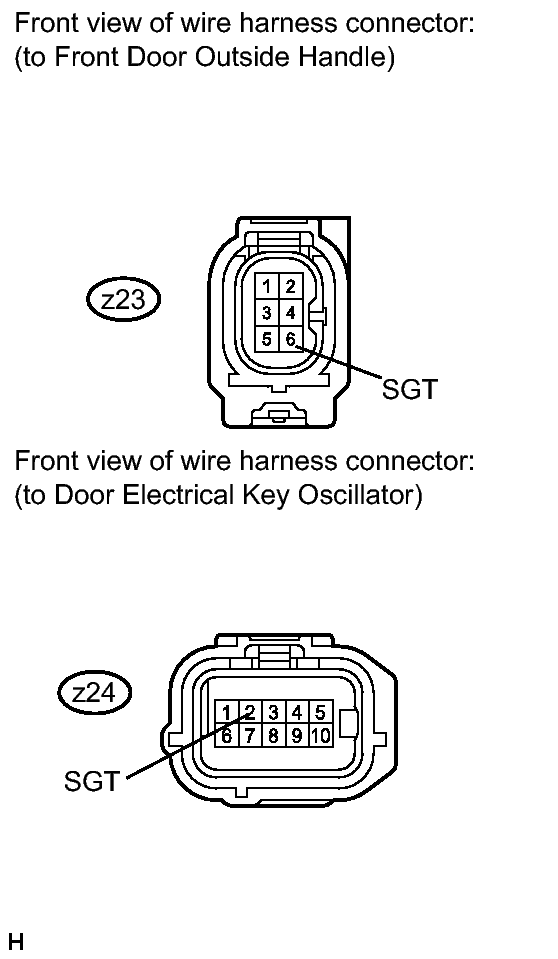

      GTY116694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the z24 oscillator connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      z23-6 (SGT) - z24-2 (SGT) Always Below 1 Ω
      z23-6 (SGT) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. REPLACE DOOR ELECTRICAL KEY OSCILLATOR
    1. Replace the door electrical key oscillator. Refer to DISASSEMBLY [08/2013 - ] .

    NEXT: Go to next step

  6. CHECK DOOR ELECTRICAL KEY OSCILLATOR OPERATION
    1. Check that the entry function operates normally.

      OK

      Operates normally.

    NG → See step   7

    OK → END (DOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  7. REPLACE FRONT DOOR OUTSIDE HANDLE
    1. Replace the front door outside handle. Refer to DISASSEMBLY [08/2013 - ] .

    NEXT: Go to next step

  8. CHECK FRONT DOOR OUTSIDE HANDLE OPERATION
    1. Check that the entry function operates normally.

      OK

      Operates normally.

    NG → See step   10

    OK → END (FRONT DOOR OUTSIDE HANDLE IS DEFECTIVE)

  9. GO TO POWER DOOR LOCK CONTROL SYSTEM. Refer to  PROBLEM SYMPTOMS TABLE [08/2013 - ]
  10. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2013 - ]
