Front Passenger Side Door Entry Lock Function does not Operate [08/2013 - ]: Wiring Diagram

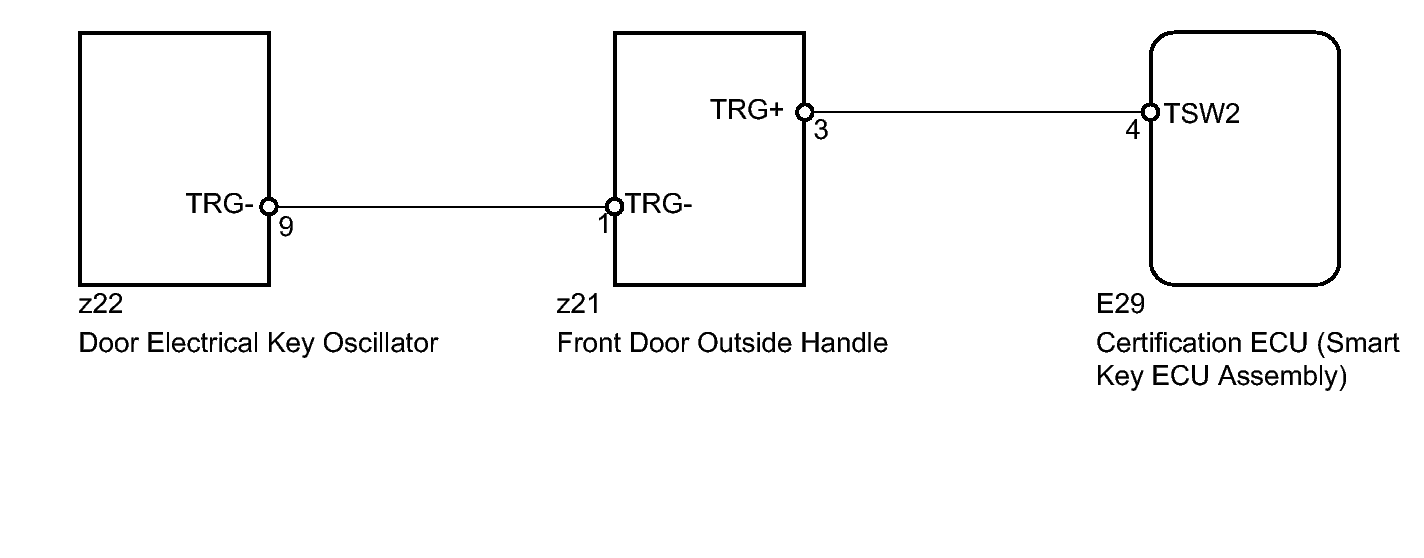

Fig 1: Front Passenger Side Door Lock Function Wiring Diagram
GTY115688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
