Parts Location [08/2013 - ]: Illustration

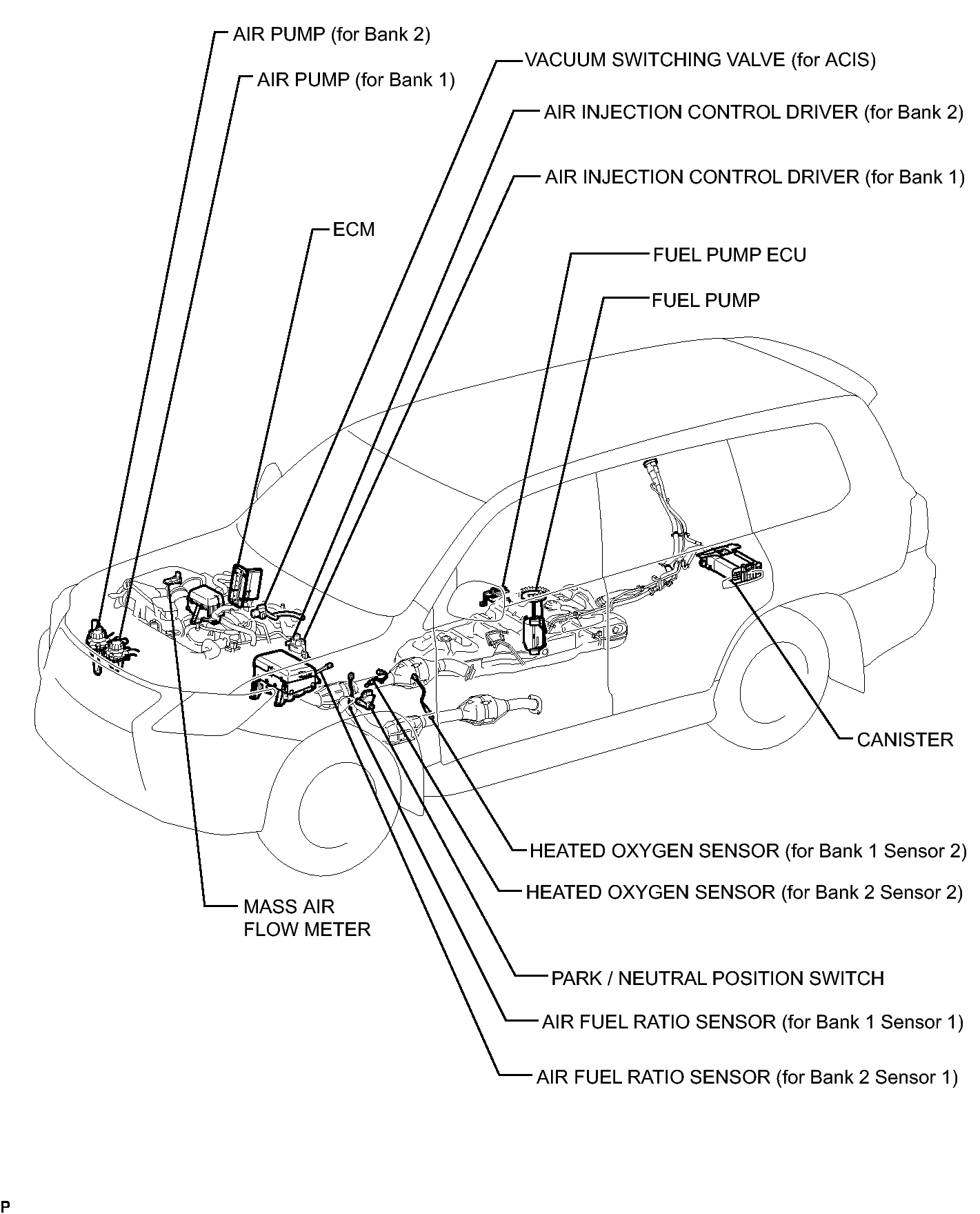

Fig 1: Identifying Engine Control System Components Location (1 Of 6)
GTY458934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

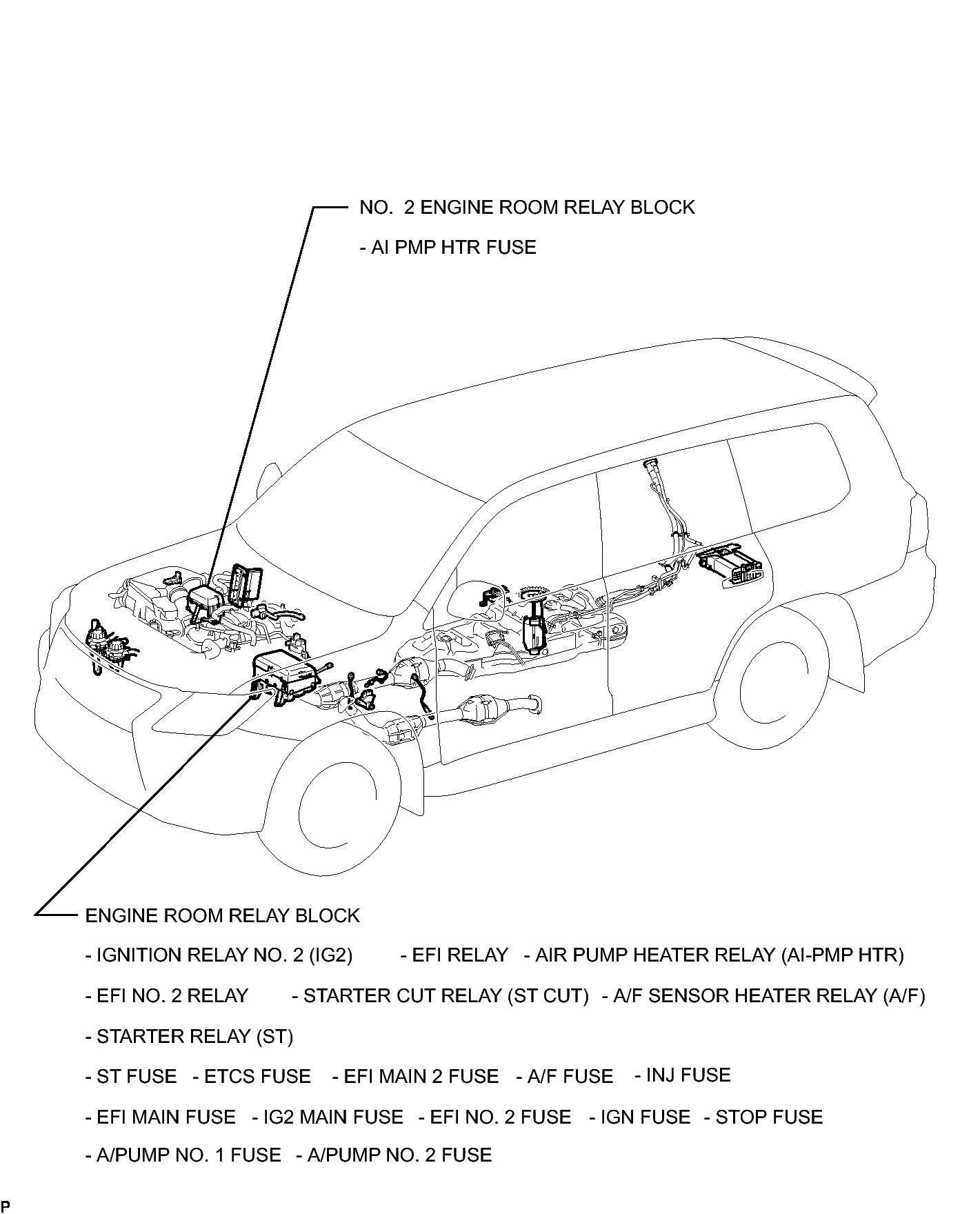

Fig 1: Identifying Engine Control System Components Location (2 Of 6)
GTY469143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Components Location (3 Of 6)
GTY356529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Components Location (4 Of 6)
GTY351088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Engine Control System Components Location (5 Of 6)
GTY353974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

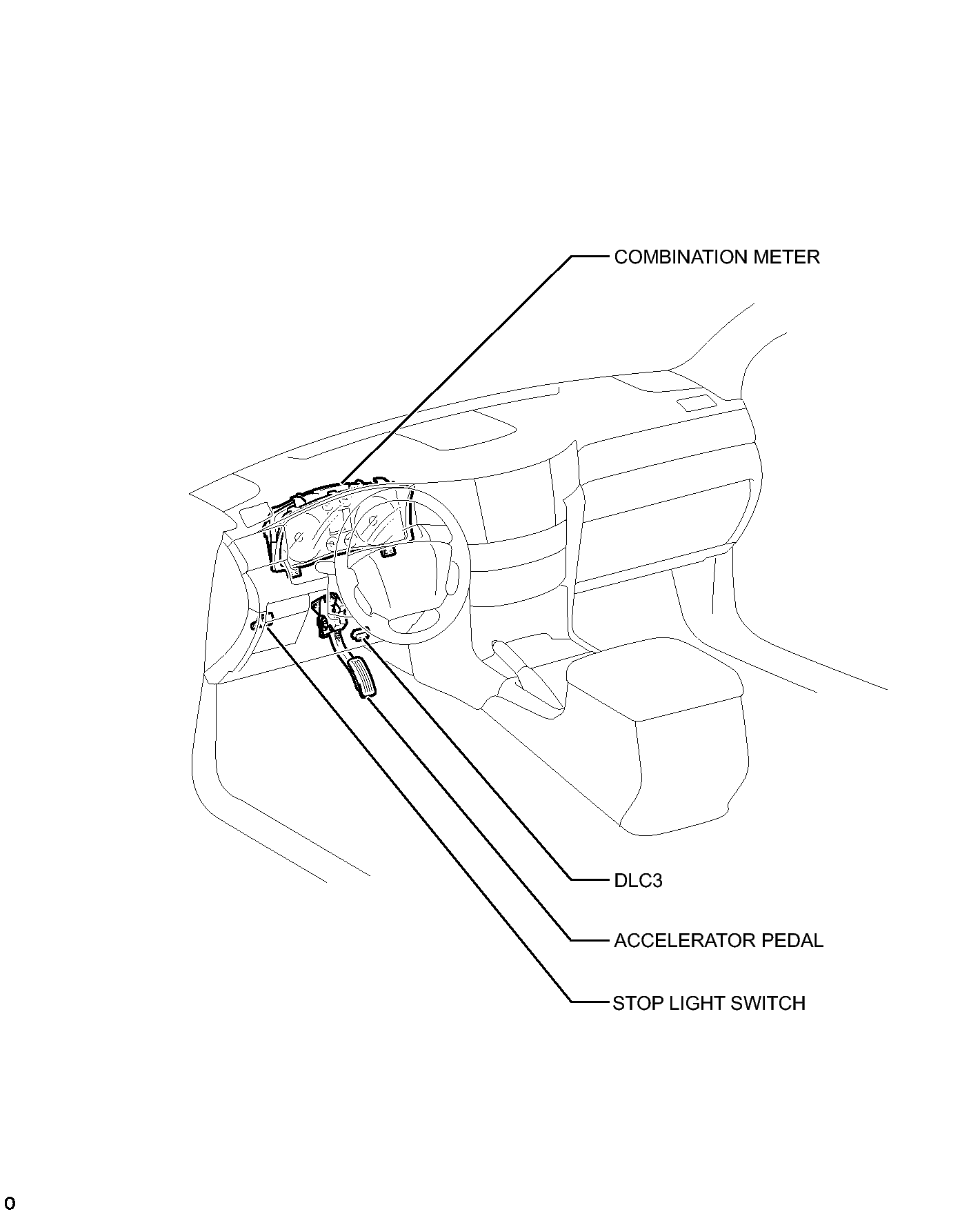

Fig 1: Identifying Engine Control System Components Location (6 Of 6)
GTY409450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
