Installation [08/2014 - ]: Procedure

  1. INSTALL CLEANER CONTROL RELAY

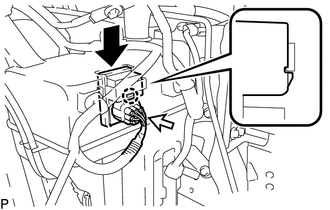

    1. Engage the claw as shown in the illustration to install the cleaner control relay.
      GTY463154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL HEADLIGHT ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side (See article. Refer to INSTALLATION [08/2014 - ] ).
