All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate [08/2014 - ]: Wiring Diagram

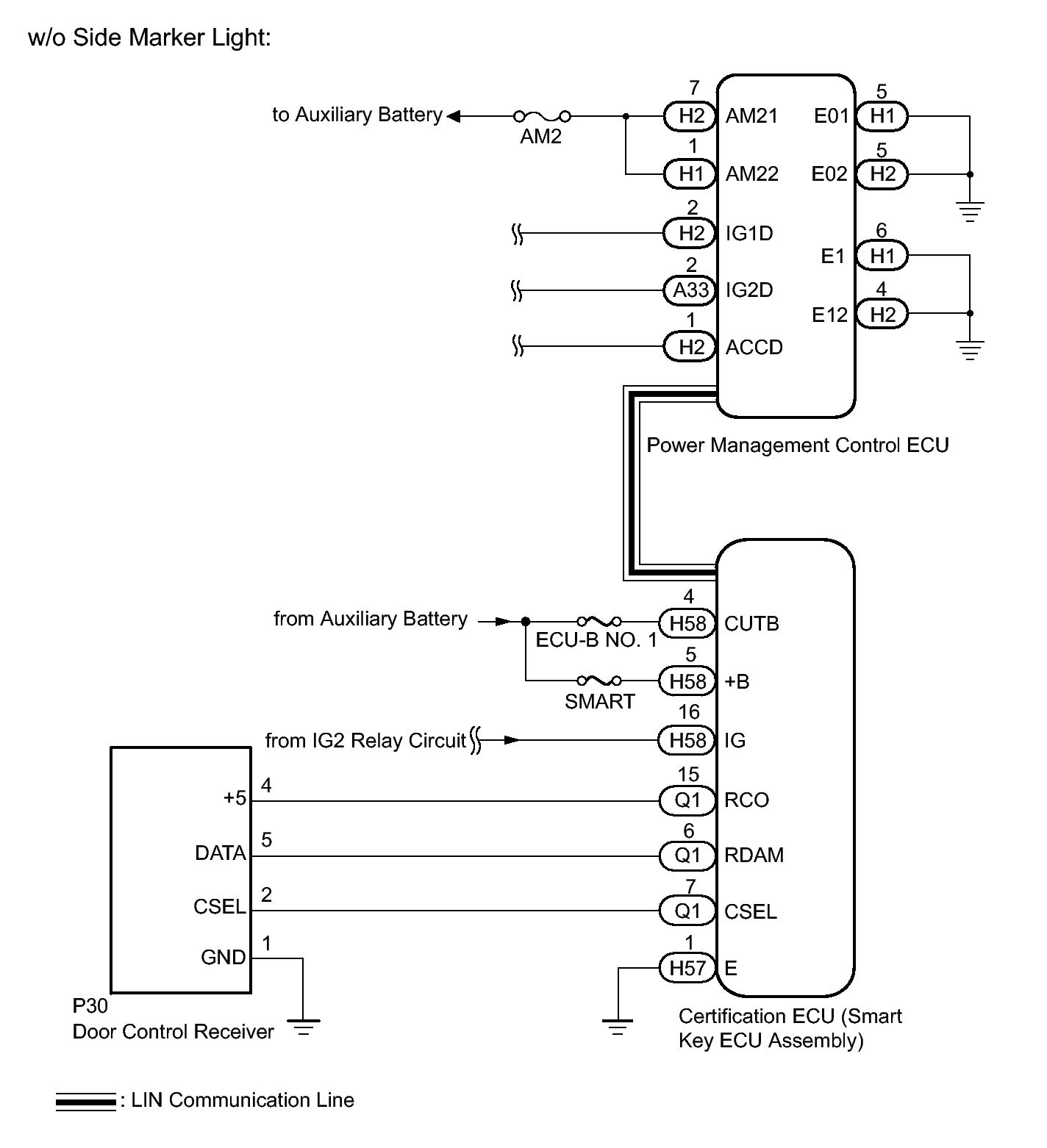

Fig 1: Door Entry Lock/Unlock Functions w/o Side Marker Light Wiring Diagram
GTY416336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

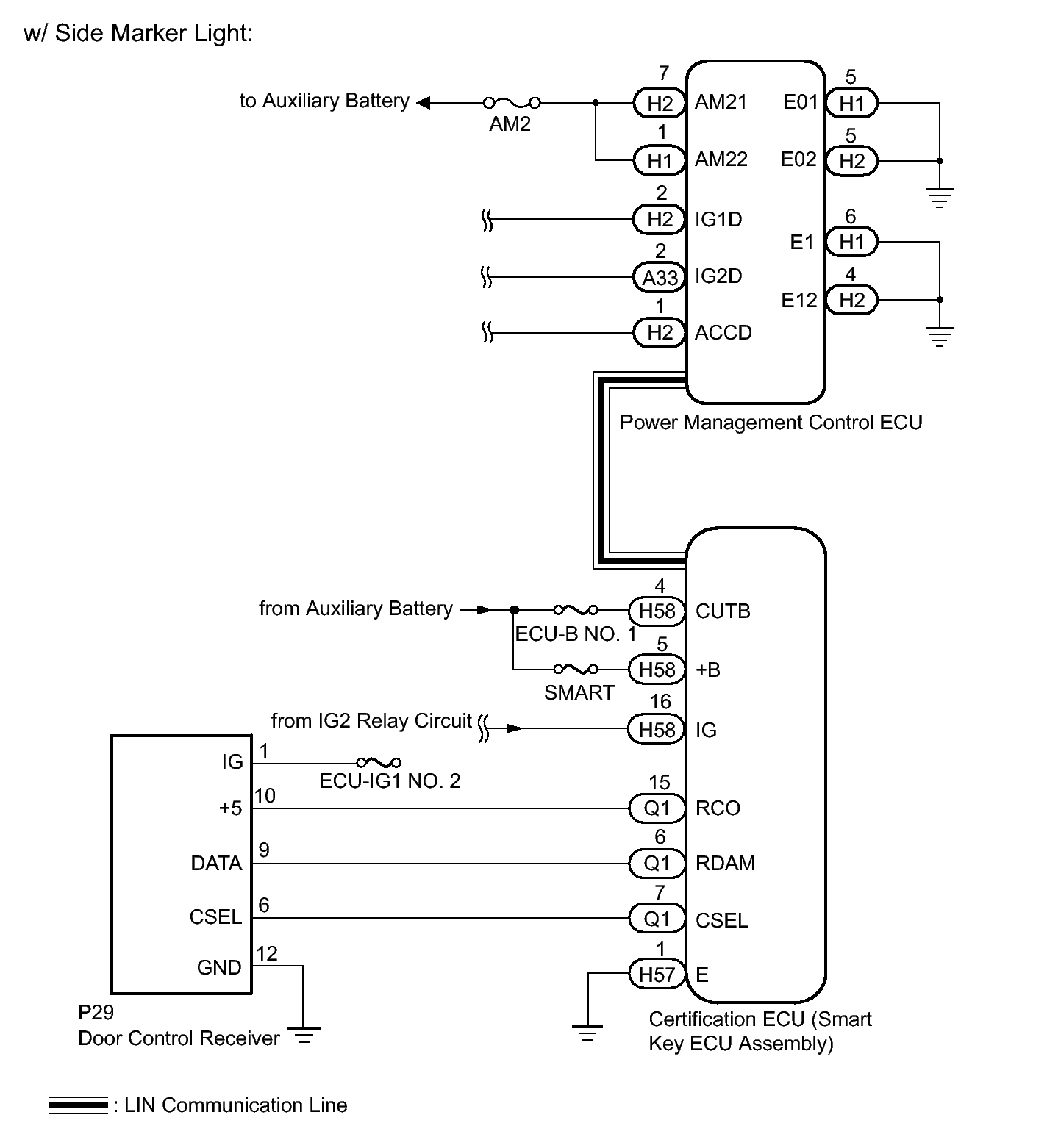

Fig 2: Door Entry Lock/Unlock Functions w/ Side Marker Light Wiring Diagram
GTY413994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
