Navigation Receiver Assembly Power Source Circuit [08/2014 - ]: Wiring Diagram

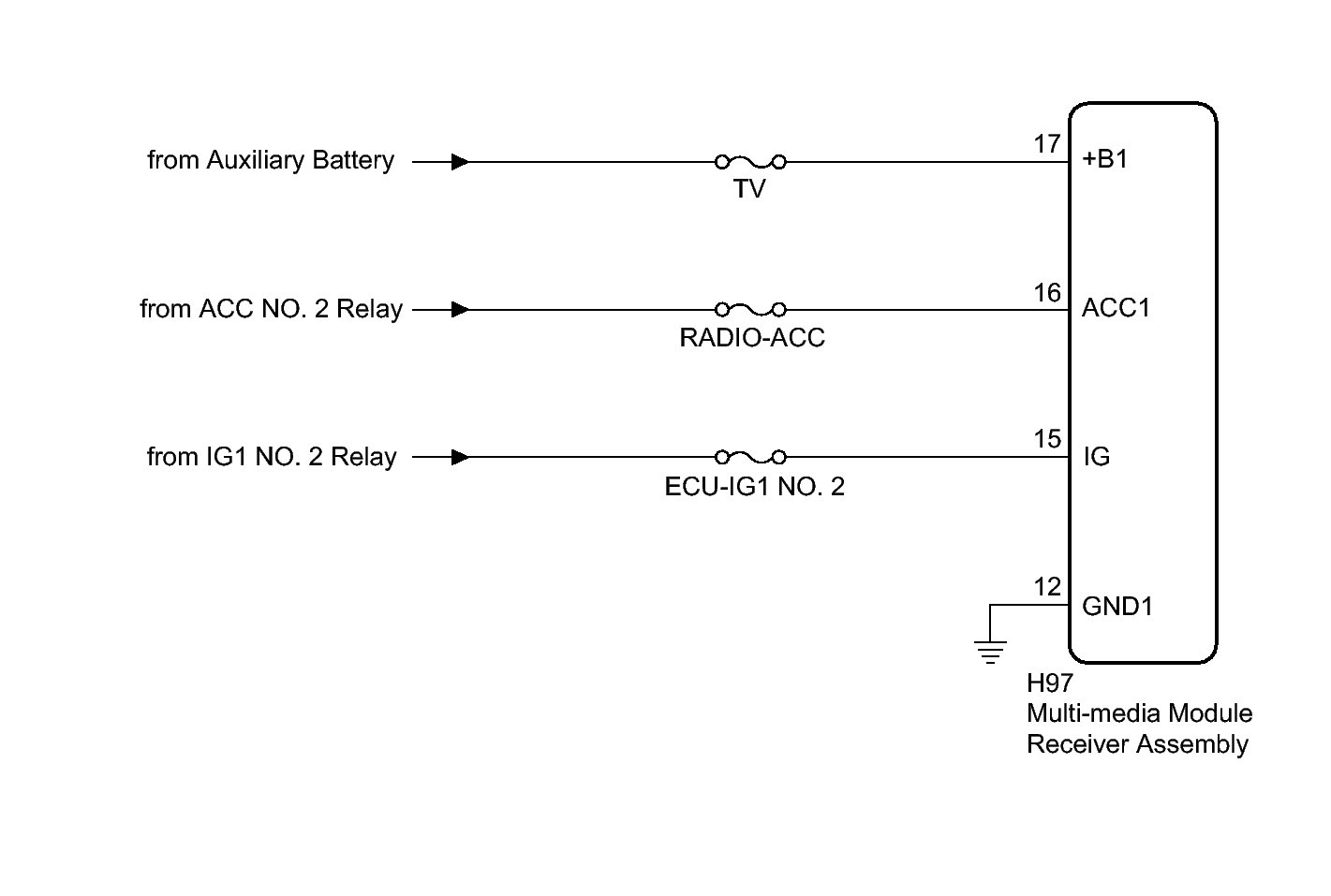

Fig 1: Navigation Receiver Assembly Power Source Circuit Wiring Diagram
GTY499794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
