DTC C1271/71: Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72: Low Output Signal of Front Speed Sensor LH (Test Mode DTC); DTC C1464/31: Front Speed Sensor RH Circuit; DTC C1465/32: Front Speed Sensor LH Circuit [08/2014 - ]: Procedure

1. Using the Techstream, check for any momentary interruptions in the wire harness and connector corresponding to a DTC. Refer to CHECK FOR INTERMITTENT PROBLEMS [08/2014 - ] .
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Speed Open	Front speed sensor RH open detection / Error or Normal	Error: Momentary interruption Normal: Normal	-
   FL Speed Open	Front speed sensor LH open detection / Error or Normal	Error: Momentary interruption Normal: Normal	-

   OK

   There are no momentary interruptions.

   HINT:

   Perform the above inspection before removing the sensor and connector.

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Select the Data List on the Techstream. Refer to DATA LIST / ACTIVE TEST [08/2014 - ] .
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Wheel Speed	Front speed sensor RH / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
   FL Wheel Speed	Front speed sensor LH / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations

2. Check the speed value output from the speed sensor displayed on the Techstream.

   HINT:

   Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart. Refer to ON-VEHICLE INSPECTION [08/2014 - ] .

   OK

   The speed value output from the speed sensor displayed on the Techstream is similar to the speed indicated on the speedometer.

NG → See step   5

OK: Go to next step

1. Turn the power switch off.
2. Perform the sensor check in Test Mode Procedure. Refer to TEST MODE PROCEDURE [08/2014 - ] .

   OK

   All Test Mode DTCs are cleared.

NG → See step   5

OK: Go to next step

1. Turn the power switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR [08/2014 - ] .
3. Turn the power switch on (READY).
4. Perform a road test.
5. Check if the same DTC is output. Refer to DTC CHECK / CLEAR [08/2014 - ] .

   Result

   Result	Proceed to
   DTCs C1464/31 and C1465/32 are not output.	A
   DTCs C1464/31 and/or C1465/32 are output.	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ] .

B → See step   10

A → See step   16

1. Turn the power switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

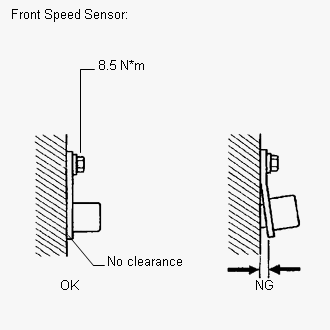

2. Check the speed sensor installation.

   OK

   There is no clearance between the sensor and the front steering knuckle.

   The installation bolt is tightened properly.

   Torque

   8.5 N*m (87 kgf*cm, 75 in.*lbf)

NG → See step   14

OK: Go to next step

1. Remove the front speed sensor. Refer to REMOVAL [08/2014 - ] .
2. Check the speed sensor tip.

   OK

   The sensor tip is free of scratches, oil, and foreign matter.

   NOTE:

   Check the speed sensor signal after cleaning or replacement. Refer to TEST MODE PROCEDURE [08/2014 - ] .

NG → CLEAN OR REPLACE FRONT SPEED SENSOR

OK: Go to next step

1. Install the front speed sensor.
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the A24 skid control ECU (brake booster with master cylinder assembly) connector.
4. Disconnect the A44 or A16 front speed sensor connector.
5. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   A24-18 (FR+) - A44-1 (FR+)	Always	Below 1 Ω
   A24-18 (FR+) - Body ground	Always	10 kΩ or higher
   A24-5 (FR-) - A44-2 (FR-)	Always	Below 1 Ω
   A24-5 (FR-) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   A24-31 (FL+) - A16-1 (FL+)	Always	Below 1 Ω
   A24-31 (FL+) - Body ground	Always	10 kΩ or higher
   A24-32 (FL-) - A16-2 (FL-)	Always	Below 1 Ω
   A24-32 (FL-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the A24 skid control ECU (brake booster with master cylinder assembly) connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the power switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   A44-1 (FR+) - Body ground	Power switch on (IG)	5.7 to 14 V

   Tester Connection	Condition	Specified Condition
   A16-1 (FL+) - Body ground	Power switch on (IG)	5.7 to 14 V

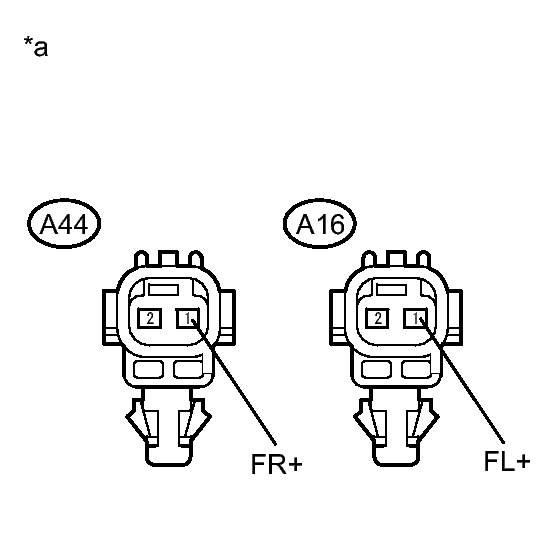

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Front Speed Sensor)

NG → See step   15

OK: Go to next step

1. Turn the power switch off.
2. Reconnect the A44 or A16 front speed sensor connector.
3. Clear the DTCs. Refer to DTC CHECK / CLEAR [08/2014 - ] .
4. Turn the power switch on (READY).
5. Perform a road test.
6. Check if the same DTC is output. Refer to DTC CHECK / CLEAR [08/2014 - ] .

   Result

   Result	Proceed to
   DTCs C1464/31 and/or C1465/32 are output.	A
   DTCs C1464/31 and C1465/32 are not output.	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ] .

B → See step   16

A: Go to next step

1. Turn the power switch off.
2. Replace the front speed sensor. Refer to REMOVAL [08/2014 - ] .
   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE [08/2014 - ] .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR [08/2014 - ] .
2. Turn the power switch on (READY).
3. Perform a road test.
4. Check if the same DTC is output. Refer to DTC CHECK / CLEAR [08/2014 - ] .

   Result

   Result	Proceed to
   DTCs C1464/31 and/or C1465/32 are output.	A
   DTCs C1464/31 and C1465/32 are not output.	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ] .

B → END

A: Go to next step

1. Turn the power switch off.
2. Replace the front speed sensor rotor (front drive outboard joint shaft assembly). Refer to DISASSEMBLY [08/2014 - ] .

   HINT:

   If the front speed sensor rotor needs to be replaced, replace the front drive outboard joint shaft assembly.

   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE [08/2014 - ] .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR [08/2014 - ] .
2. Turn the power switch on (READY).
3. Perform a road test.
4. Check if the same DTC is output. Refer to DTC CHECK / CLEAR [08/2014 - ] .

   Result

   Result	Proceed to
   DTCs C1464/31 and/or C1465/32 are output.	A
   DTCs C1464/31 and C1465/32 are not output.	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE [08/2014 - ] .

B → END

A → See step   15
