DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [08/2014 - ]: Wiring Diagram

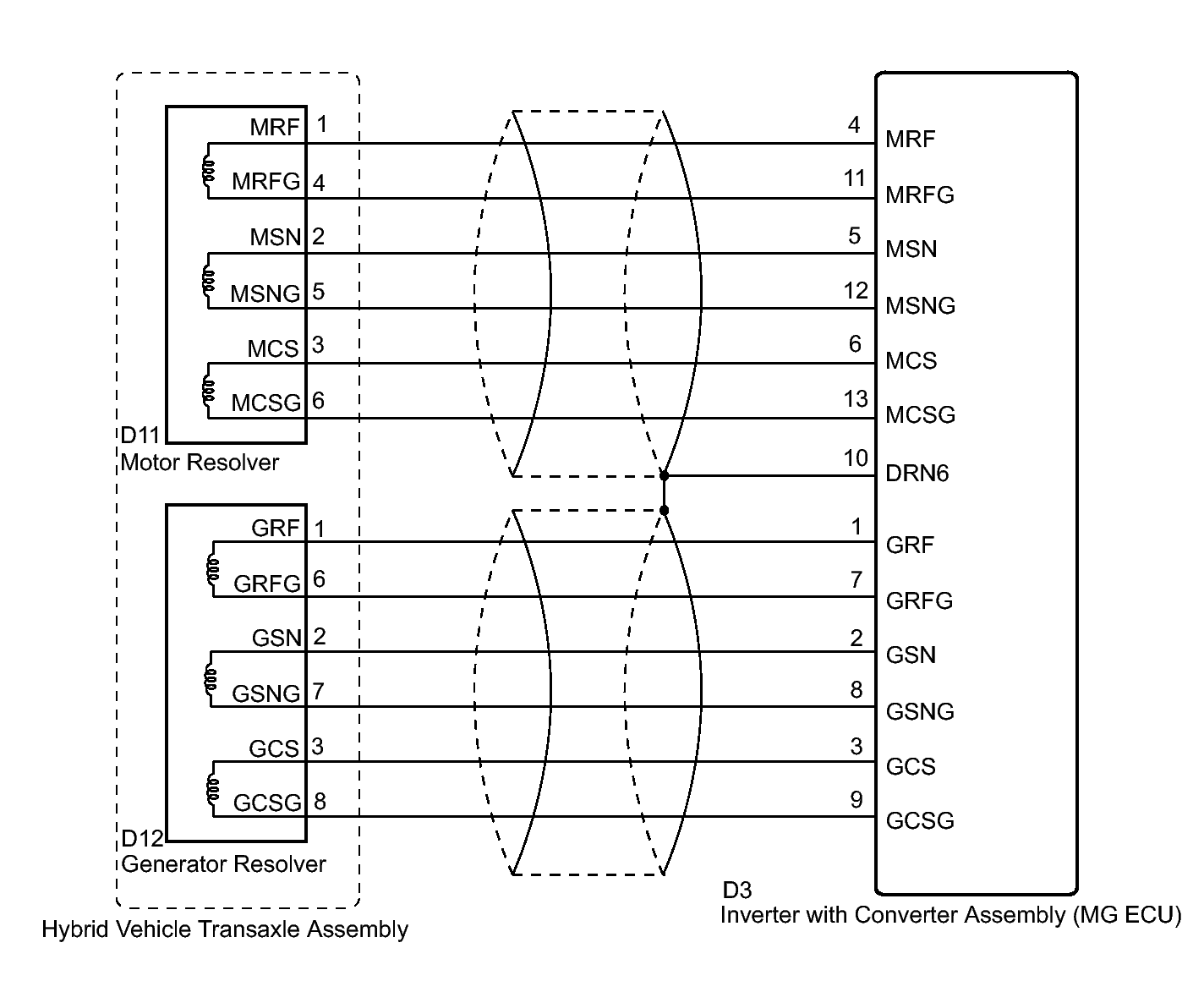

Fig 1: Generator Control Module Wiring Diagram
GTY415100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
