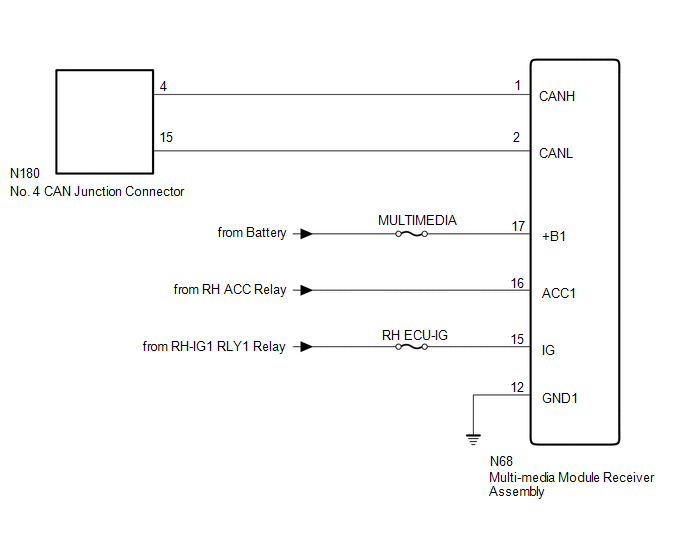

Multi-media Module Receiver Assembly Communication Stop Mode [09/2018 - ]: Wiring Diagram

GTY823302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
