Radio Receiver Power Source Circuit [09/2014 - 10/2015]: Wiring Diagram

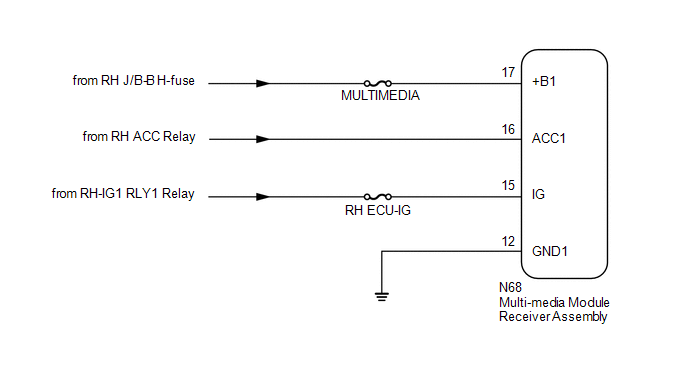

GTY412068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
