Pattern Select Switch Snow Mode Circuit [09/2014 - 10/2015]: Wiring Diagram

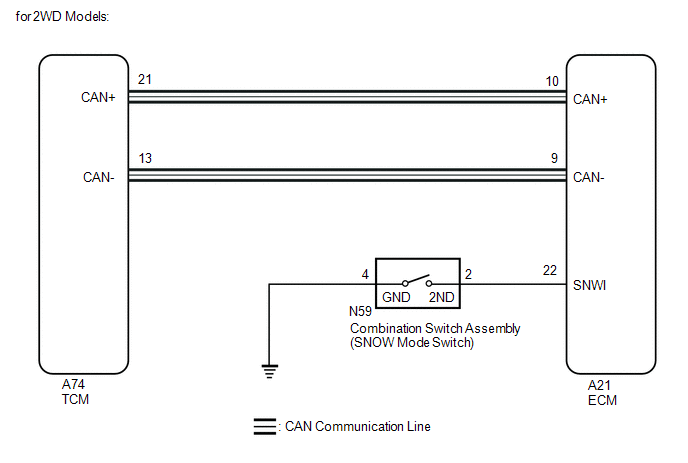

GTY625639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

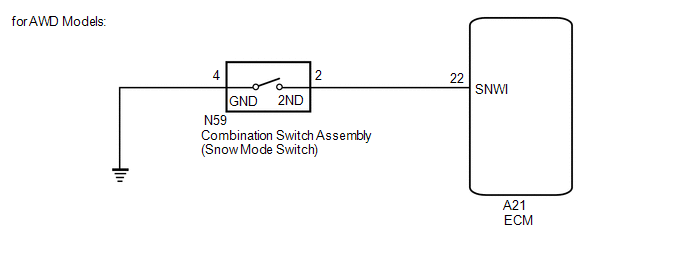

GTY679561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
