Lexus
>>
2015
>>
GS 350 Base, AWD
>>
Repair and Diagnosis (Single Page)
>>
Steering
>>
Manual Steering
>>
Variable Gear Ratio Steering System - Diagnostics - Introduction
>>
Variable Gear Ratio Steering System
>>
System Diagram [09/2014 - 10/2015]
>>
System Diagram [09/2014 - 10/2015]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

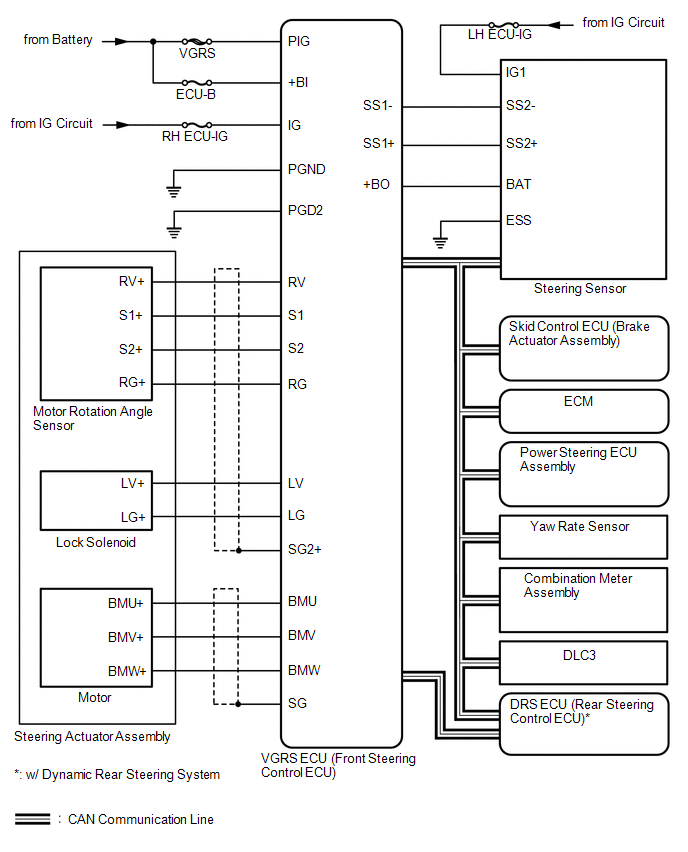

System Diagram [09/2014 - 10/2015]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
