Terminals Of Ecu [09/2014 - 10/2015]

  1. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

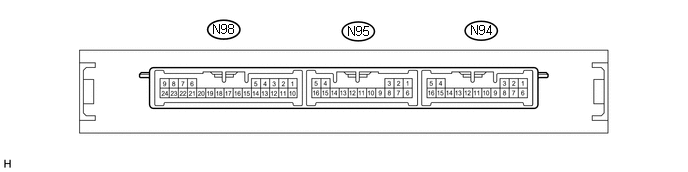

    Fig 1: Certification ECU Connector Terminal Identification
    GTY526412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N94 and N95 certification ECU (smart key ECU assembly) connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.

      HINT:

      Measure the values on the wire harness side with the connector disconnected.

      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      N94-1 (E) - Body ground - W-B - Body ground Ground Always Below 1 Ω -
      N95-5 (+B) - N94-1 (E) Input GR - W-B +B power supply Always 11 to 14 V -
      N95-4 (CUTB) - N94-1 (E) Input P - W-B Dark current cut pin* Always 11 to 14 V -
      1. *: In order to prevent the vehicle auxiliary battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is set in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle auxiliary battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of electric waves every 0.25 seconds. that form the detection area stops).

      If the result is not as specified, there may be a malfunction on the wire harness side or the fuse is removed.

    3. Reconnect the N94 and N95 certification ECU (smart key ECU assembly) connectors.
    4. Measure the voltage according to the value(s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      N95-16 (IG) - N94-1 (E) Input B - W-B IG power supply Power switch off → on (IG) Below 1 V → 11 to 14 V Power switch
      N94-5 (CLG1) - N94-1 (E) Output P - W-B Output to driver door electrical key antenna
      (request signal [challenge] is sent to door electrical key antenna from certification ECU [smart key ECU assembly] to form detection area)      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought inside detection area*1
      6. All doors locked through wireless operation

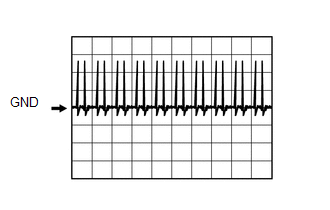

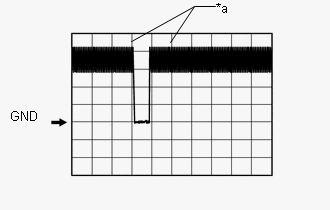

      		 Pulse generation (See waveform 1) Over Head + Driver Side (key diagnostic mode)
      Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought outside detection area*2
      6. All doors locked through wireless operation

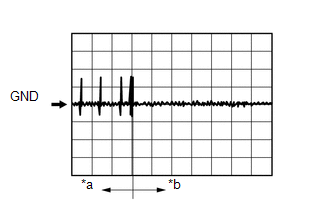

      		 Pulse generation (See waveform 2) Over Head + Driver Side (key diagnostic mode)
      N94-4 (CG1B) - N94-1 (E) Output R - W-B Output to driver door electrical key antenna (terminal on opposite side of component from CLG1 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Driver Side (key diagnostic mode)
      N94-13 (CLG2) - N94-1 (E) Output W - W-B Output to front passenger door electrical key antenna
      (request signal [challenge] is sent to door electrical key antenna from certification ECU [smart key ECU assembly] to form detection area)      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought inside detection area*1
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 1) Over Head + Passenger Side (key diagnostic mode)
      Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought outside detection area*2
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Passenger Side (key diagnostic mode)
      N94-12 (CG2B) - N94-1 (E) Output R - W-B Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG2 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Passenger Side (key diagnostic mode)
      N98-17 (CLG3) - N94-1 (E) Output P - W-B Output to rear door LH electrical key antenna
      (request signal [challenge] is sent to door electrical key antenna from certification ECU [smart key ECU assembly] to form detection area)      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought inside detection area*1
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 1) Over Head + Rear LH Side (key diagnostic mode)
      Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought outside detection area*2
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Rear LH Side (key diagnostic mode)
      N98-18 (CG3B) - N94-1 (E) Output R - W-B Output to rear door LH electrical key antenna (terminal on opposite side of component from CLG3 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Rear LH Side (key diagnostic mode)
      N98-19 (CLG4) - N94-1 (E) Output W - W-B Output to rear door RH electrical key antenna
      (request signal [challenge] is sent to door electrical key antenna from certification ECU [smart key ECU assembly] to form detection area)      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought inside detection area*1
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 1) Over Head + Rear RH Side (key diagnostic mode)
      Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought outside detection area*2
      6. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Rear RH Side (key diagnostic mode)
      N98-20 (CG4B) - N94-1 (E) Output R - W-B Output to rear door RH electrical key antenna (terminal on opposite side of component from CLG4 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked through wireless operation
      		 Pulse generation (See waveform 2) Over Head + Rear RH Side (key diagnostic mode)
      N94-11 (CLG5) - N94-1 (E) Output GR - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      		 Pulse generation (See waveform 3) Over Head + Front Room (key diagnostic mode)
      N94-10 (CG5B) - N94-1 (E) Output B - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) (terminal on opposite side of component from CLG5 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      		 Pulse generation (See waveform 3) Over Head + Front Room (key diagnostic mode)
      N95-7 (TSW1) - N94-1 (E) Input LG - W-B Driver door lock sensor signal input
      (Sends signal from door lock sensor on front door outside handle assembly to certification ECU [smart key ECU assembly]). Certification ECU (smart key ECU assembly) send 12 V pulse waveform every 40 ms. from terminal TSW. When door lock sensor is touched, the pulse is grounded.      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
      		 Pulse generation (See waveform 6) D-Door Trigger Switch
      N95-8 (TSW2) - N94-1 (E) Input Y - W-B Front passenger door lock sensor signal input
      (Sends signal from door lock sensor on front door outside handle assembly to certification ECU [smart key ECU assembly]). Certification ECU (smart key ECU assembly) sends 12 V pulse waveform every 40 ms. from terminal TSW. When door lock sensor is touched, the pulse is grounded.      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Front passenger door lock sensor not touched → touched
      		 Pulse generation (See waveform 6) P-Door Trigger Switch
      N98-10 (TSW3) - N94-1 (E) Input V - W-B Rear door LH lock sensor signal input
      (Sends signal from door lock sensor on rear door outside handle assembly to certification ECU [smart key ECU assembly]). Certification ECU (smart key ECU assembly) send 12 V pulse waveform every 40 ms. from terminal TSW. When door lock sensor is touched, the pulse is grounded.      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Rear door LH lock sensor not touched → touched
      		 Pulse generation (See waveform 6) Dr-Door Trigger Switch
      N98-11 (TSW4) - N94-1 (E) Input G - W-B Rear door RH lock sensor signal input
      (Sends signal from door lock sensor on rear door outside handle assembly to certification ECU [smart key ECU assembly]). Certification ECU (smart key ECU assembly) sends 12 V pulse waveform every 40 ms. from terminal TSW. When door lock sensor is touched, the pulse is grounded.      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Rear door RH lock sensor not touched → touched
      		 Pulse generation (See waveform 6) Pr-Door Trigger Switch
      N94-3 (SEN1) - N94-1 (E) Input B - W-B Driver door unlock sensor signal input
      (when system is in unlock standby mode and touch sensor is touched, door electrical key antenna sends touch sensor input signal [sensing] to certification ECU [smart key ECU assembly])      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Driver door unlock sensor not touched → touched
      		 Pulse generation (See waveform 6) D-Door Touch Sensor
      N94-2 (SEN2) - N94-1 (E) Input V - W-B Front passenger door unlock sensor signal input
      (when system is in unlock standby mode and touch sensor is touched, door electrical key antenna sends touch sensor input signal [sensing] to certification ECU [smart key ECU assembly])      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Front passenger door unlock sensor not touched → touched
      		 Pulse generation (See waveform 6) P-Door Touch Sensor
      N98-12 (SEN3) - N94-1 (E) Input L - W-B Rear door LH unlock sensor signal input
      (when system is in unlock standby mode and touch sensor is touched, door electrical key antenna sends touch sensor input signal [sensing] to certification ECU [smart key ECU assembly])      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Rear door LH unlock sensor not touched → touched
      		 Pulse generation (See waveform 6) Dr-Door Touch Sensor
      N98-13 (SEN4) - N94-1 (E) Input R - W-B Rear door RH unlock sensor signal input
      (when system is in unlock standby mode and touch sensor is touched, door electrical key antenna sends touch sensor input signal [sensing] to certification ECU [smart key ECU assembly])      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Rear door RH unlock sensor not touched → touched
      		 Pulse generation (See waveform 6) Pr-Door Touch Sensor
      N98-22 (TSW5) - N94-1 (E) Input SB- W-B Luggage door opening switch assembly signal input Luggage door opening switch assembly off → on Pulse generation (See waveform 6) Tr/B-Door Unlock SW
      N98-14 (CLG6) - N94-1 (E) Output Y - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      		 Pulse generation (See waveform 3) Over Head + Rear Room (key diagnostic mode)
      N98-5 (CG6B) - N94-1 (E) Output L - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) (terminal on opposite side of component from CLG6 output terminal) Proceed:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
      		 Pulse generation (See waveform 3) Over Head + Rear Room (key diagnostic mode)
      N98-4 (CLG7) - N94-1 (E) Output P - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) Proceed:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
      		 Pulse generation (See waveform 4) Over Head + Luggage (inside) (key diagnostic mode)
      N98-3 (CG7B) - N94-1 (E) Output W - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage compartment) (terminal on opposite side of component from CLG7 output terminal) Proceed:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
      		 Pulse generation (See waveform 4) Over Head + Luggage (inside) (key diagnostic mode)
      N94-15 (POS1) - N94-1 (E) Output GR - W-B Driver door unlock sensor power source (12 V [drops when power switch turned on (IG)]) Power switch off → on (IG) 9 to 14 V → Below 2 V -
      N94-16 (POS2) - N94-1 (E) Output W - W-B Front passenger door unlock sensor power source (12 V [drops when power switch turned on (IG)]) Power switch off → on (IG) 9 to 14 V → Below 2 V -
      N98-23 (POS3) - N94-1 (E) Output SB - W-B Rear door LH unlock sensor power source (12 V [drops when power switch turned on (IG)]) Power switch off → on (IG) 9 to 14 V → Below 2 V -
      N98-24 (POS4) - N94-1 (E) Output P - W-B Rear door RH unlock sensor power source (12 V [drops when power switch turned on (IG)]) Power switch off → on (IG) 9 to 14 V → Below 2 V -
      N98-15 (RCO) - N94-1 (E) Output G - W-B Output to door control receiver
      (Power supply for door control receiver. Certification ECU [smart key ECU assembly] outputs 5 V when receiver starts operating.)      		 Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. Electrical key transmitter sub-assembly brought outside detection area*2 but kept inside wireless function operational area*3
      4. Lock or unlock switches of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation (See waveform 7) -
      N98-6 (RDAM) - N94-1 (E) Input R - W-B Door control receiver verifies data received from electrical key transmitter sub-assembly. Door control receiver sends data to ECU and intermittently grounds 12 V signal from certification ECU (smart key ECU assembly). Proceed:
      1. Power switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly brought outside detection area*2 but kept inside wireless function operational area*3
      4. Lock or unlock switches of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation (See waveform 8) -
      N98-7 (CSEL) - N94-1 (E) Output P - W-B Communication channel switching circuit. Procedure:
      1. Power switch off
      2. All doors closed
      		 Below 1 V → 4.5 to 6 V → Below 1 V Key diagnostic mode
      N98-2 (CLG8) - N94-1 (E) Output Y - W-B Output to electrical key antenna (outside luggage) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage door opening switch assembly off → on
      		 Pulse generation (See waveform 5) Over Head + Luggage
      or
      Luggage + Luggage (key diagnostic mode)
      N98-1 (CG8B) - N94-1 (E) Output B - W-B Output to electrical key antenna (outside luggage) (terminal on opposite side of component from CLG8 output terminal) Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage door opening switch assembly off → on
      		 Pulse generation (See waveform 5) Over Head + Luggage
      or
      Luggage + Luggage (key diagnostic mode)
      1. *1: For details about the areas that are inside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
      2. *2: For details about the areas that are outside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
      3. *3: For details about the areas that are inside the wireless function operational area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
    5. Using an oscilloscope, check waveform 1.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

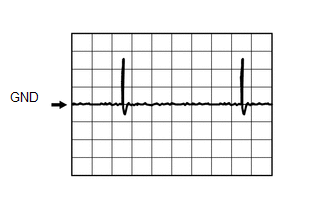

      Fig 2: Waveform 1
      GTY265256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 1 (REFERENCE)

      Item Content
      Tester Connection
      • N94-5 (CLG1) - N94-1 (E)
      • N94-13 (CLG2) - N94-1 (E)
      • N98-17 (CLG3) - N94-1 (E)
      • N98-19 (CLG4) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought inside detection area*
      6. All doors locked through wireless operation
      1. *: For details about the areas that are inside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
    6. Using an oscilloscope, check waveform 2.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 3: Waveform 2
      GTY258883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 2 (REFERENCE)

      Item Content
      Tester Connection
      • N94-5 (CLG1) - N94-1 (E)
      • N94-13 (CLG2) - N94-1 (E)
      • N98-17 (CLG3) - N94-1 (E)
      • N98-19 (CLG4) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. Electrical key transmitter sub-assembly brought outside detection area*
      6. All doors locked through wireless operation
      1. *: For details about the areas that are outside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
      WAVEFORM 2 (REFERENCE)

      Item Content
      Tester Connection
      • N94-4 (CG1B) - N94-1 (E)
      • N94-12 (CG2B) - N94-1 (E)
      • N98-18 (CG3B) - N94-1 (E)
      • N98-20 (CG4B) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Electrical key transmitter sub-assembly not inside vehicle
      5. All doors locked through wireless operation
      1. *: For details about the areas that are outside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
    7. Using an oscilloscope, check waveform 3.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 4: Waveform 3
      GTY262798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Door open
      *b After approximately 30 seconds from when the door is closed
      WAVEFORM 3 (REFERENCE)

      Item Content
      Tester Connection
      • N94-11 (CLG5) - N94-1 (E)
      • N94-10 (CG5B) - N94-1 (E)
      • N98-14 (CLG6) - N94-1 (E)
      • N98-5 (CG6B) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Door is open
      4. Door is closed
      5. Within 30 seconds
    8. Using an oscilloscope, check waveform 4.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

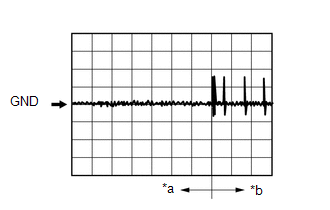

      Fig 5: Waveform 4
      GTY319039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Before driver door lock sensor touched
      *b After driver door lock sensor touched
      WAVEFORM 4 (REFERENCE)

      Item Content
      Tester Connection
      • N98-4 (CLG7) - N94-1 (E)
      • N98-3 (CG7B) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
    9. Using an oscilloscope, check waveform 5.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

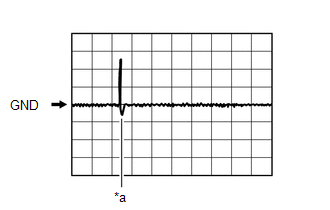

      Fig 6: Waveform 5
      GTY315145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Power switch off, all doors closed and luggage door opening switch assembly off → on
      WAVEFORM 5 (REFERENCE)

      Item Content
      Tester Connection
      • N98-2 (CLG8) - N94-1 (E)
      • N98-1 (CG8B) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage door opening switch assembly off → on
    10. Using an oscilloscope, check waveform 6.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 7: Waveform 6
      GTY279494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a In actuality, sampling is being performed
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N95-7 (TSW1) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Driver door lock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N95-8 (TSW2) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Front passenger door lock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N98-10 (TSW3) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Rear door LH lock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N98-11 (TSW4) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Rear door RH lock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N94-3 (SEN1) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Driver door unlock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N94-2 (SEN2) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Front passenger door unlock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N98-12 (SEN3) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Rear door LH unlock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N98-13 (SEN4) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not sufficiently close to vehicle
      5. Rear door RH unlock sensor not touched → touched
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection N98-22 (TSW5) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV
      Condition Luggage door opening switch assembly off → on
    11. Using an oscilloscope, check waveform 7.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

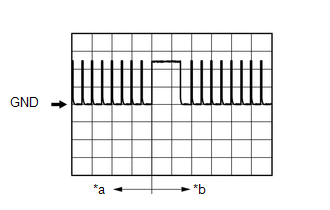

      Fig 8: Waveform 7
      GTY278665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Before lock or unlock switches of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switches of electrical key transmitter sub-assembly pressed
      WAVEFORM 7 (REFERENCE)

      Item Content
      Tester Connection N98-15 (RCO) - N94-1 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Power switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. Electrical key transmitter sub-assembly brought outside detection area*1 but kept inside wireless function operational area*2
      4. Lock or unlock switches of electrical key transmitter sub-assembly not pressed → pressed
      1. *1: For details about the areas that are outside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
      2. *2: For details about the areas that are inside the wireless function operational area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
    12. Using an oscilloscope, check waveform 8.

      HINT:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

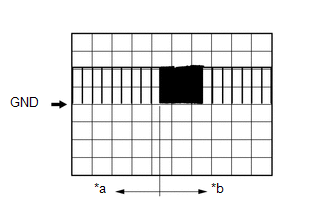

      Fig 9: Waveform 8
      GTY277201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Before lock or unlock switches of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switches of electrical key transmitter sub-assembly pressed
      WAVEFORM 8 (REFERENCE)

      Item Content
      Tester Connection N98-6 (RDAM) - N94-1 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Proceed:
      1. Power switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly brought outside detection area*1 but kept inside wireless function operational area*2
      4. Lock or unlock switches of electrical key transmitter sub-assembly not pressed → pressed
      1. *1: For details about the areas that are outside the entry function detection area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
      2. *2: For details about the areas that are inside the wireless function operational area, refer to Operation Check (OPERATION CHECK [09/2014 - ] ).
  2. CHECK COWL SIDE JUNCTION BLOCK LH AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

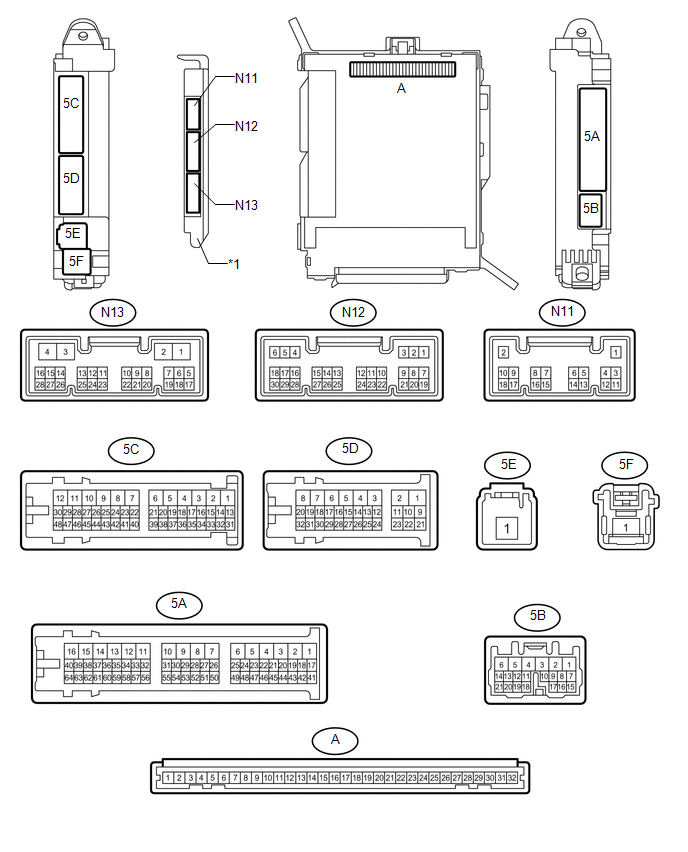

    Fig 10: Cowl Side Junction Block LH, Main Body ECU Connector Terminal Identification
    GTY536862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TEXT IN ILLUSTRATION

    *1 Main Body ECU (Multiplex Network Body ECU) - -
    1. Remove the main body ECU (multiplex network body ECU) from the cowl side junction block LH (Refer to REMOVAL [09/2014 - ] ).
    2. Connect the cowl side junction block LH connectors.
    3. Measure the voltage and resistance according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      A-11 (GND1) - Body ground None - Body ground Ground Always Below 1 Ω
      A-29 (ACC) - Body ground None - Body ground ACC power supply Power switch on (ACC) 11 to 14 V
      Power switch off Below 1 V
      A-30 (BECU) - Body ground None - Body ground Auxiliary battery power supply Always 11 to 14 V
      A-31 (ALTB) - Body ground None - Body ground Auxiliary battery power supply Always 11 to 14 V
      A-32 (IG) - Body ground None - Body ground IG power supply Power switch on (IG) 11 to 14 V
      Power switch off Below 1 V
    4. Install the main body ECU (multiplex network body ECU) to the cowl side junction block LH (Refer to INSTALLATION [09/2014 - ] ).
    5. Measure the voltage according to the value(s) in the table below.
      Tester Connection Wiring Color Terminal Description Condition Specified Condition
      5A-11 (ACT-) - Body ground LG - Body ground Door lock motor unlock drive output signal (front passenger side door and rear door RH) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder unlocked 11 to 14 V
      5A-13 (ACT+) - Body ground G - Body ground Door lock motor lock drive output signal (front passenger side door and and rear door RH) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder locked 11 to 14 V
      5A-33 (FRCY) - Body ground R - Body ground Front door courtesy light switch assembly RH input signal Front door RH open Below 1 V
      Front door RH closed Pulse generation
      5C-8 (ACT+) - Body ground G - Body ground Door lock motor lock drive output signal (rear door RH) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder locked 11 to 14 V
      5C-9 (ACT+) - Body ground G - Body ground Door lock motor lock drive output signal (driver) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder locked 11 to 14 V
      5C-10 (ACTD) - Body ground L - Body ground Door lock motor lock drive output signal (driver door) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder locked 11 to 14 V
      5C-12 (ACT-) - Body ground LG - Body ground Door lock motor unlock drive output signal (rear door LH) Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder off Below 1 V
      Multiplex network master switch assembly (door control switch), power window regulator switch assembly (door control switch) or driver door key cylinder unlocked 11 to 14 V
      5C-30 (LSWL) - Body ground B - Body ground Rear door LH unlock detection switch input signal Rear door LH unlocked Below 1 V
      Power switch off, all doors closed and rear door LH locked Pulse generation
      5C-44 (FLCY) - Body ground R - Body ground Front door courtesy light switch assembly LH input signal Front door LH open Below 1 V
      Front door LH closed Pulse generation
      5D-27 (BZR) - Body ground G - Body ground Wireless door lock buzzer output signal Power switch off, all doors closed and electrical key transmitter sub-assembly switch OFF → ON Below 1 V → Pulse generation
      N11-3 (LCTY) - Body ground G - Body ground Rear door courtesy light switch assembly LH input signal Rear door LH open Below 1 V
      Rear door LH closed Pulse generation
      N12-6 (RCTY) - Body ground G - Body ground Rear door courtesy light switch assembly RH input signal Rear door RH open Below 1 V
      Rear door RH closed Pulse generation
      N12-7 (LSFL) - Body ground SB - Body ground Front door LH unlock detection switch input signal Front door LH unlocked Below 1 V
      Power switch off, all doors closed and front door LH locked Pulse generation
      N12-18 (LSFR) - Body ground SB - Body ground Front door RH unlock detection switch input signal Front door RH unlocked Below 1 V
      Power switch off, all doors closed and front door RH locked Pulse generation
      N13-2 (LSWR) - Body ground B - Body ground Rear door RH unlock detection switch input signal Rear door RH unlocked Below 1 V
      Power switch off, all doors closed and rear door RH locked 11 to 14 V
scientia non olet · About LEMON Manuals
