Operation Check [10/2015 - ]

1. When the key is in a detection area inside the vehicle and the brake pedal is depressed, the hybrid control system is started by pressing the power switch.
2. When the key is in a detection area inside the vehicle and the brake pedal is not depressed, the power source mode is changed by pressing the power switch. The power source mode changes in the following order every time the power switch is pressed: off → on (ACC) → on (IG) → off.
3. After getting into the vehicle while carrying the key when the power switch is off, if the power switch is pressed while not depressing the brake pedal, the power source mode changes to on (ACC).
4. After getting into the vehicle while carrying the key when the power switch is off, if the power switch is pressed 2 times without depressing the brake pedal, the power source mode changes to on (IG).
5. After getting into the vehicle while carrying the key when the power switch is off, if the brake pedal is depressed while the shift lever is in P, the smart warning light is displayed.

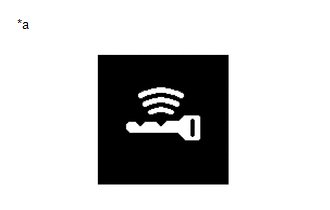

   Fig 1: Smart Warning Light

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. The hybrid control system starts if the power switch is pressed when the smart warning light is displayed.
   TEXT IN ILLUSTRATION



   *a	Smart Warning Light displayed

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the key.
2. While depressing the brake pedal, and facing the logo side of the key towards the power switch, hold the key near the power switch.
3. A buzzer in the combination meter assembly sounds and the power source mode changes to on (IG). Pressing the power switch without depressing the brake pedal turns the power source mode from on (IG) to off.

1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the key.
2. While depressing the brake pedal with the shift lever in P, while facing the logo side of the key towards the power switch, hold the key near the power switch.
3. A buzzer in the combination meter assembly sounds, the power source mode changes to on (IG) and the smart warning light is displayed.
4. Press the power switch with the brake pedal depressed to start the hybrid control system.

1. Get into the vehicle while carrying the key with the power switch off. With the shift lever in P, check that the smart warning light is displayed when the brake pedal is depressed. Then check that the hybrid control system starts when the power switch is pressed after the smart warning light is displayed.
2. While the brake pedal is released and the key is being carried, check that the power source mode changes in the following order when the power switch is pressed: off → on (ACC) → on (IG) → off.

   HINT:

   When the power switch is pressed with the power switch on (IG) and the shift lever not in P, the power source mode does change to off.

3. With the shift lever in P, check that the steering lock operates when a door is opened.

   HINT:

   When the power switch is pressed after the vehicle is stopped, the hybrid control system stops and all the power turns off. However, if the shift lever is not in P when the power switch is pressed with the vehicle stopped, the power source mode does not change to off, but changes to on (ACC).

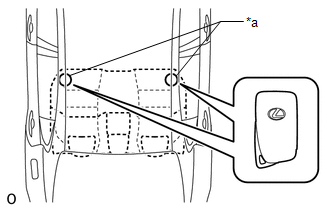

4. Check the push-button start function operation range for the front side. Place the key in either of the two locations making sure that the key is oriented as shown in the illustration, and then check that the hybrid control system can be started.
   Fig 2: Identifying Inspection Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   NOTE:

   • Even if the key is in a vehicle interior key detection area, the key may not be properly detected if the key is on the instrument panel, in the glove box or on the floor.
   • If the key is within 0.2 m (0.66 ft.) of the shift lever, communication may not be possible.

   HINT:

   Perform this inspection for both inspection points.

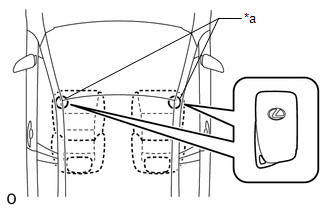

5. Check the push-button start function operation range for the rear side. Place the key in either of the two locations making sure that the key is oriented as shown in the illustration, and then check that the hybrid control system can be started.
   Fig 3: Identifying Rear Inspection Points

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *a	Inspection Point

   NOTE:

   • Even if the key is in a vehicle interior key detection area, the key may not be properly detected if the key is on the instrument panel, in the glove box or on the floor.
   • If the key is within 0.2 m (0.66 ft.) of the center of the rear seat, communication may not be possible.

   HINT:

   Perform this inspection for both inspection points.

1. Press the unlock switch of the electrical key transmitter sub-assembly twice while pressing the lock switch and check that the electrical key transmitter sub-assembly LED blinks 4 times and enters transmitter battery saving mode.
2. Check that the smart access system with push-button start does not operate while in transmitter battery saving mode.

   HINT:

   To cancel transmitter battery saving mode, press a button of the electrical key transmitter sub-assembly.

1. Check that the power source mode changes according to the chart below.

   Shift Position	Brake Pedal	Power Source Mode when Power Switch Pressed
   P	Released	Off → on (ACC) → on (IG) → off
   P	Released	On (READY) → off
   P	Released	On (ACC)* → off
   P	Depressed	Off → on (READY)
   P	Depressed	On (ACC) → on (READY)
   P	Depressed	On (IG) → on (READY)
   P	Depressed	On (READY) → off
   P	Depressed	On (ACC)* → off
   Not P	Released	Off → on (ACC) → on (IG) (after power source mode changes to on (IG), power source mode changes between on (IG) and on (ACC) every time power switch is pressed)
   Not P	Released	On (READY) → on (ACC)
   Not P	Depressed	Off → on (IG)
   Not P	Depressed	On (ACC) → on (IG)
   Not P	Depressed	On (READY) → on (ACC)

   HINT:

   *: This situation is only applicable when the power source mode has changed from on (IG) to on (ACC). However, this situation is not applicable when an emergency stop is performed by pressing and holding the power switch for 2 seconds or more or by quickly pressing the power switch 3 times or more.

Fig 4: Smart Warning Light

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*1: Indicates the condition in which the hybrid control system can be started by pressing the power switch while all of the following conditions are met:

• The power source mode was not turned from on (IG) to on (ACC).
• Key verification is OK*2 or immobilizer is unset (power switch is on (ACC) or on (IG)).
• The stop light switch is on.
• The shift lever is in P.

*2: When the key is in the vehicle, the ID code sent as a result from communication between the key and certification ECU (smart key ECU assembly) and the ID code calculated by the certification ECU (smart key ECU assembly) are compared. If the ID codes match each other, the vehicle recognizes that the key is in the vehicle.
