Installation [10/2015 - ]: Procedure

  1. INSTALL RADIATOR ASSEMBLY

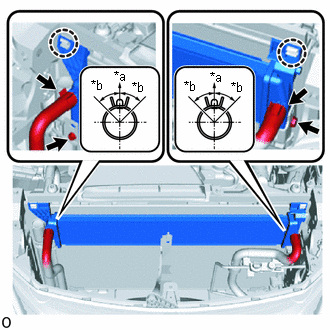

    1. Attach the 2 claws to temporarily install the radiator assembly.
      GTY538279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper
      *b 30°
    2. Install the radiator assembly with the 2 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    3. Connect the 2 water hoses.
      NOTE:
      • Make sure that the clip is positioned as shown in the illustration.
      • Do not remove the tape or plastic bags from the pipes and disconnected hoses until installation.
  2. INSTALL UPPER RADIATOR SUPPORT

    Refer to PROCEDURE - Step 4

  3. CONNECT NO. 2 ENGINE ROOM WIRE

    Refer to PROCEDURE - Step 5

  4. INSTALL HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  5. INSTALL HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 3

  6. ADD COOLANT (for Inverter)

    See step  5

  7. INSPECT FOR COOLANT LEAK (for Inverter)

    See step  1

  8. INSTALL NO. 1 AIR CLEANER INLET

    Refer to PROCEDURE - Step 75

  9. INSTALL COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 116

  10. INSTALL ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 117

  11. INSTALL NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 110

  12. INSTALL FRONT SUSPENSION MEMBER BRACE

    Refer to PROCEDURE - Step 111

  13. INSTALL ENGINE UNDER COVER

    Refer to PROCEDURE - Step 114
