Front Passenger Side Door Entry Lock Function does not Operate [08/2013 - ]: Procedure
- CHECK POWER DOOR LOCK OPERATION
- When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [08/2013 - ]
.
OK
Door locks operate normally.
NG → See step 6
OK: Go to next step
- When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [08/2013 - ]
.
- READ VALUE USING TECHSTREAM (DOOR LOCK POSITION SWITCH)
- When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the Data List using the Techstream. Refer to DATA LIST / ACTIVE TEST [08/2013 - ]
.MAIN BODY
Tester Display Measurement Item/Range Normal Condition Diagnostic Note FR Door Lock Pos Front RH side door lock position switch signal / UNLOCK or LOCK UNLOCK: Front RH side door unlocked
LOCK: Front RH side door locked- OK
The Techstream display changes correctly in response to the operation of the front door lock assembly RH.
NG → See step 6
OK: Go to next step
- When the door control switch on the multiplex network master switch assembly on the driver side door is operated, check that the Data List using the Techstream. Refer to DATA LIST / ACTIVE TEST [08/2013 - ]
.
- READ VALUE USING TECHSTREAM (LOCK SENSOR)
- Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [08/2013 - ]
.SMART ACCESS
Tester Display Measurement Item/Range Normal Condition Diagnostic Note P-Door Trigger Switch Front door outside handle assembly RH (lock sensor) / ON or OFF ON: Front door outside handle assembly RH (lock sensor) touched
OFF: Front door outside handle assembly RH (lock sensor) not touched- Displays whether the lock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily).
- Use this Data List item to help determine if there is a lock sensor malfunction when the entry lock function does not operate.
OK
The Techstream display changes correctly in response to the operation of the front door outside handle assembly RH.
NG → See step 4
OK → See step 7
- Using the Techstream, read the Data List. Refer to DATA LIST / ACTIVE TEST [08/2013 - ]
.
- CHECK HARNESS AND CONNECTOR (FRONT DOOR OUTSIDE HANDLE RH - CERTIFICATION ECU)
- Disconnect the N1 front door outside handle assembly RH connector.
- Disconnect the G26 certification ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition N1-1 (TRG+) - G26-19 (TSW2) Always Below 1 Ω G26-15 (E) - Body ground Always Below 1 Ω N1-1 (TRG+) or G26-19 (TSW2) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: Go to next step
- CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH (FRONT PASSENGER SIDE LOCK SENSOR SIGNAL INPUT)

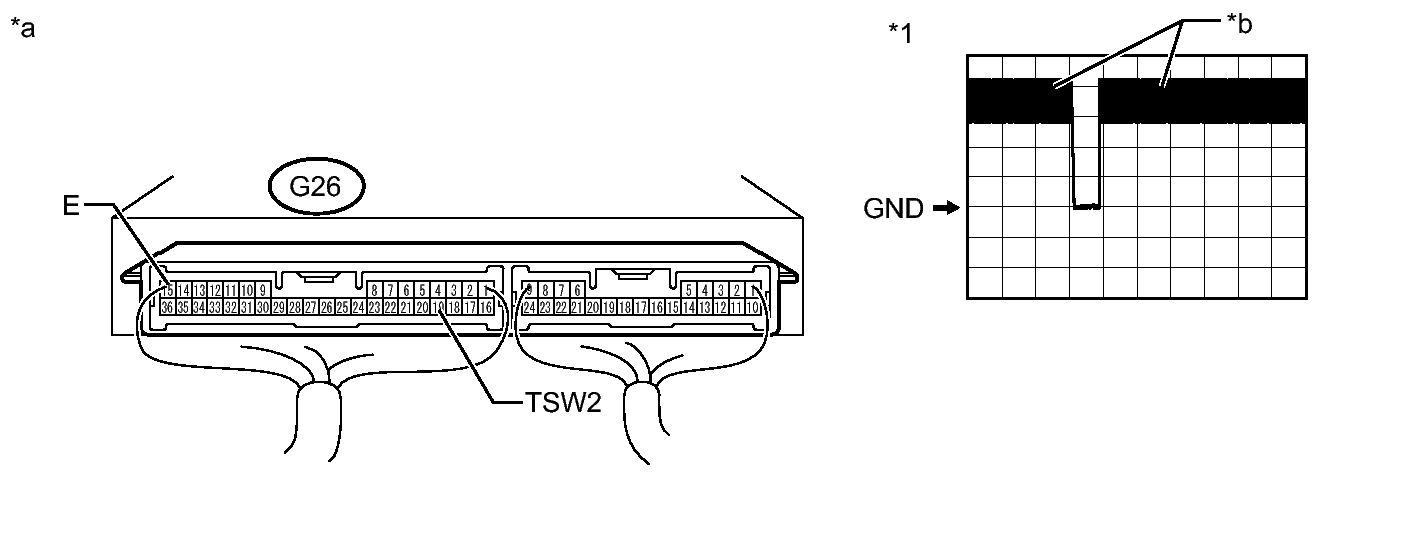

- Connect the N1 front door outside handle assembly RH connector.TEXT IN ILLUSTRATION
*1 Waveform - - *a Component with harness connected
(Certification ECU)*b In actuality, sampling is being performed - Connect the G26 certification ECU connector.
- Using an oscilloscope, check the waveform.
OK
Tester Connection Switch Condition Tool Setting Specified Condition G26-19 (TSW2) - G26-15 (E) Procedure: - Engine switch off
- Key brought outside vehicle
- All doors closed
- Front passenger side door lock sensor not touched → touched
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
NG → See step 8
OK → See step 7
- Connect the N1 front door outside handle assembly RH connector.
- Go to POWER DOOR LOCK CONTROL SYSTEM. Refer to PROBLEM SYMPTOMS TABLE [08/2013 - ]
- REPLACE CERTIFICATION ECU. Refer to REMOVAL [08/2013 - ]
- REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH. Refer to DISASSEMBLY [08/2013 - ]
