DCM Data Signal Circuit between Navigation ECU and DCM [08/2013 - ]: Wiring Diagram

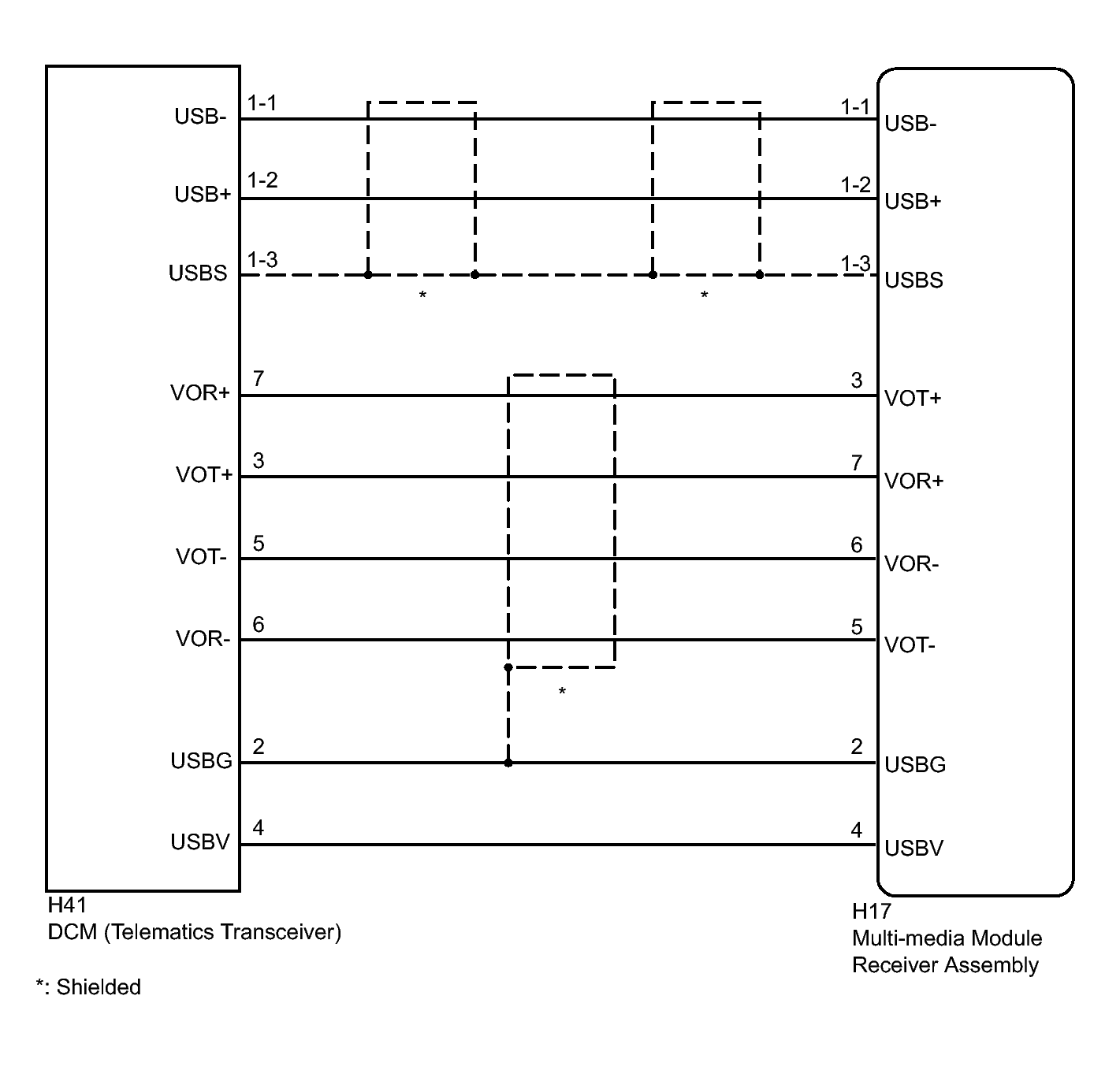

Fig 1: DCM Wiring Diagram
GTY470019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
