DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [08/2013 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
5. Read the value displayed on the Techstream.

   OK

   Same as actual intake air temperature.

   RESULT



   Result	Proceed to
   -40°C (-40°F)	A
   140°C (284°F) or higher	B
   Same as actual intake air temperature	C

   HINT:

   • If there is an open circuit, the Techstream indicates -40°C (-40°F).
   • If there is a short circuit, the Techstream indicates 140°C (284°F) or higher.

B → See step   4

C → See step   6

A: Go to next step

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the mass air flow meter connector.
2. Connect terminals 4 (THA) and 5 (E2) of the mass air flow meter wire harness side connector.
3. Connect the Techstream to the DLC3.
4. Turn the engine switch on (IG).
5. Turn the Techstream on.
6. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
7. Read the value displayed on the Techstream.

   Standard value

   140°C (284°F) or higher

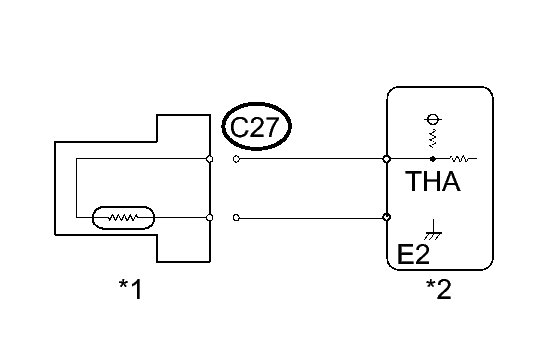

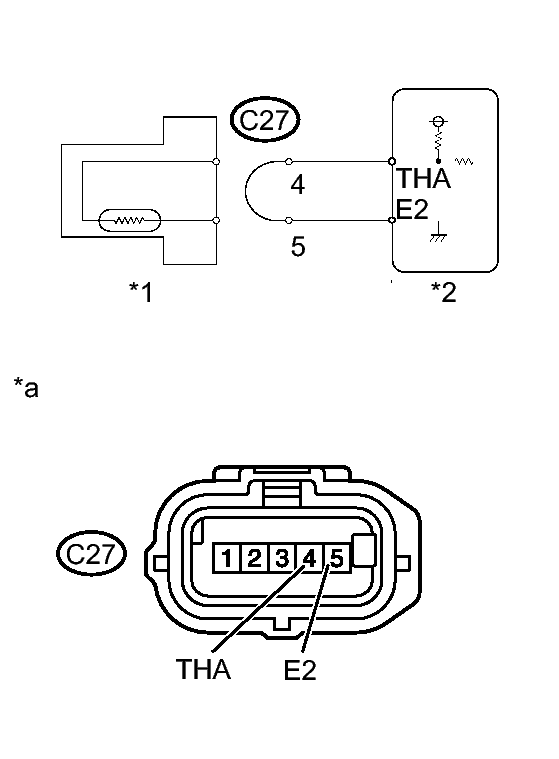

   TEXT IN ILLUSTRATION



   *1	Mass air flow meter assembly
   *2	ECM
   *a	Front view of wire harness connector (to Mass Air Flow Meter Assembly)

   HINT:

   Perform "Inspection After Repairs" after replacing the mass air flow meter. Refer to INITIALIZATION [08/2013 - ] .

NG → See step   3

OK → See step   7

1. Disconnect the mass air flow meter connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C27-4 (THA) - C29-15 (THA)	Always	Below 1 Ω
   C27-5 (E2) - C29-7 (E2)	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   8

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the mass air flow meter connector.
2. Connect the Techstream to the DLC3.
3. Turn the engine switch on (IG).
4. Turn the Techstream on.
5. Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
6. Read the value displayed on the Techstream.

   Standard value

   -40°C (-40°F)

   TEXT IN ILLUSTRATION



   *1	Mass Air Flow Meter Assembly
   *2	ECM

   HINT:

   Perform "Inspection After Repairs" after replacing the mass air flow meter. Refer to INITIALIZATION [08/2013 - ] .

NG → See step   5

OK → See step   9

1. Disconnect the mass air flow meter connector.
2. Disconnect the ECM connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C27-4 (THA) or C29-15 (THA) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   10
