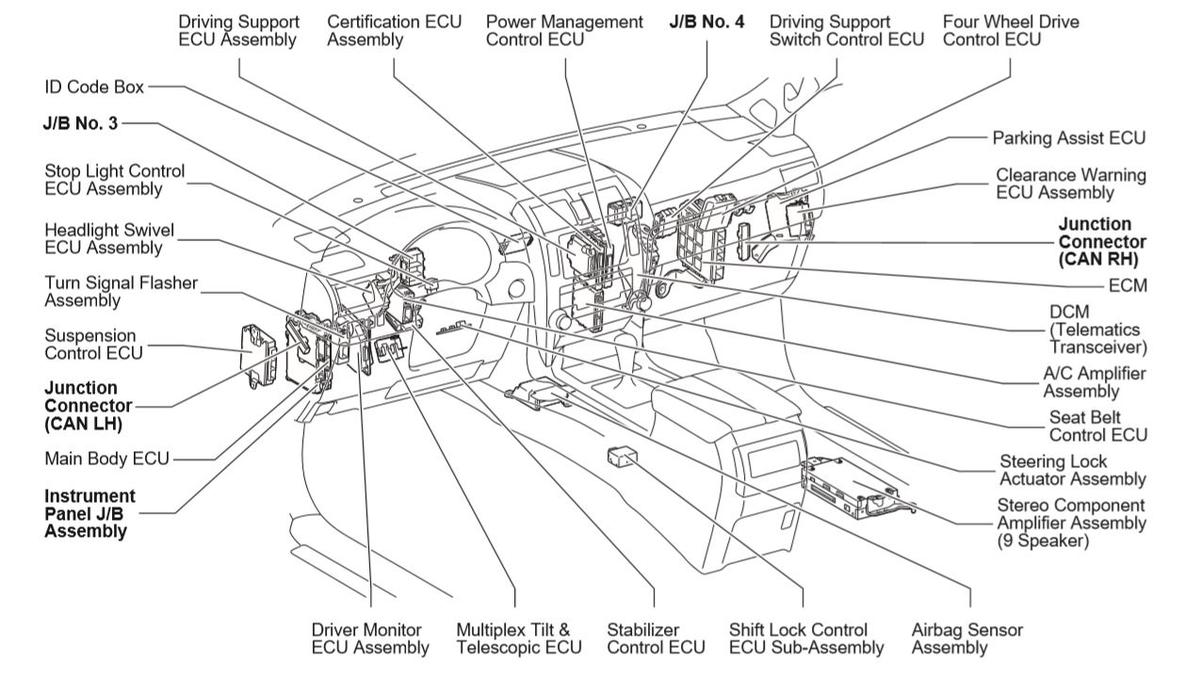

Instrument Panel Junction Block Assembly Instrument Panel Reinforcement: Notes

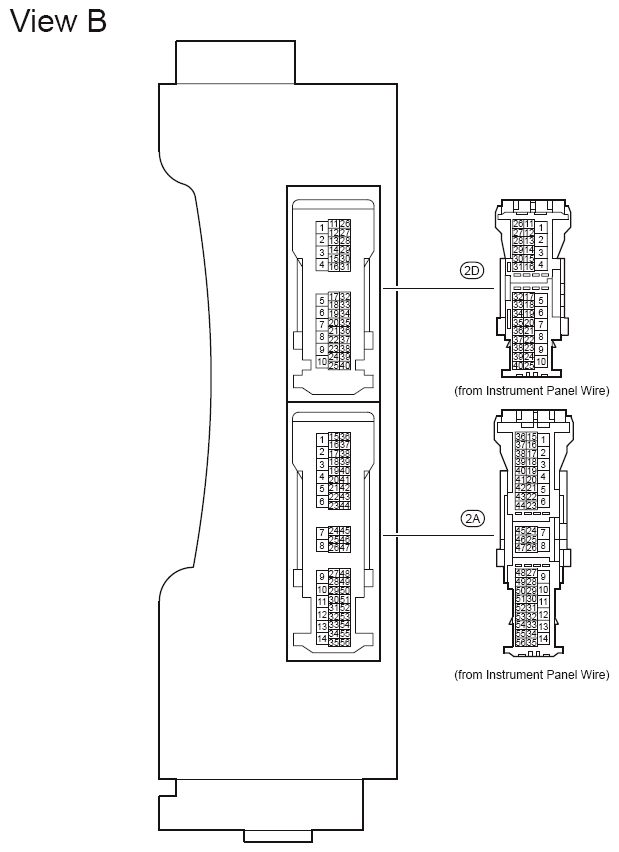

For additional information, refer to Figure.

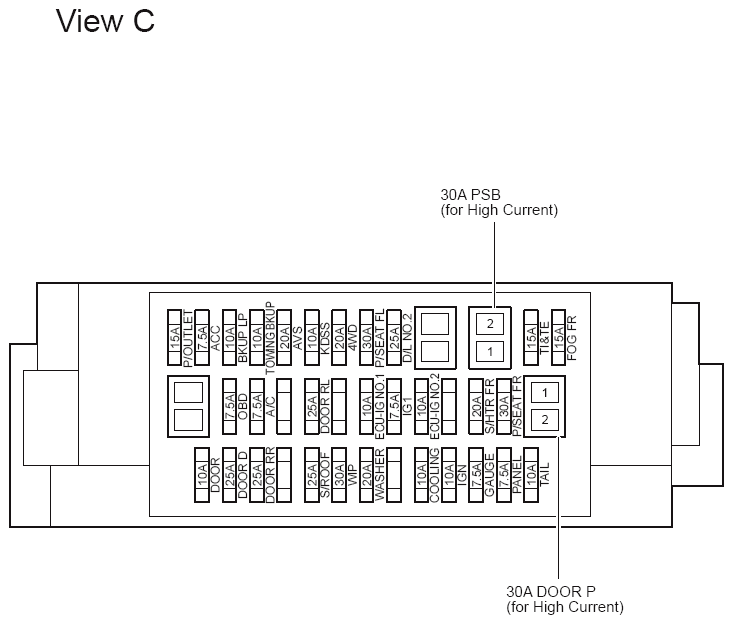

INSTRUMENT PANEL J/B FUSE IDENTIFICATION LEGEND (VIEW C)
| Fuse | System | |
|---|---|---|
| 7.5A | A/C | Air Conditioning |
| 7.5A | ACC | Adaptive Front-Lighting System |
| Air Conditioning | ||
| Audio System (17 Speaker w/LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/LEXUS Navigation System) | ||
| Audio System (9 Speaker w/LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (9 Speaker w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back-Up Light | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Electronic Modulated Air Suspension | ||
| Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Glass Hatch Opener | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| Trailer Towing | ||
| 7.5A | GAUGE | ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD, Hill-Start Assist Control, Multi-Terrain Select and VSC |
| Adaptive Front-Lighting System | ||
| Audio System (17 Speaker w/LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/LEXUS Navigation System) | ||
| Audio System (9 Speaker w/LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (9 Speaker w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Center Differential Lock | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Electronic Modulated Air Suspension | ||
| Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Headlight | ||
| Illumination and Taillight | ||
| Kinetic Dynamic Suspension System | ||
| LEXUS ENFORM or Safety Connect | ||
| Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Pre-Collision System | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Tire Pressure Warning System | ||
| 7.5A | IG1 | ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD, Hill-Start Assist Control, Multi-Terrain Select and VSC |
| Air Conditioning | ||
| Charging | ||
| Condenser Fan | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Electronic Modulated Air Suspension | ||
| Heated Steering Wheel System | ||
| Pre-Collision System | ||
| Seat Heater (Rear) | ||
| Stop Light | ||
| Trailer Towing | ||
| Turn Signal and Hazard Warning Light | ||
| 7.5A | OBD | Data Link Connector 3 |
| 7.5A | PANEL | Illumination and Taillight |
| 10A | BKUP LP | Back-Up Light |
| 10A | COOLING | Cool Box |
| 10A | DOOR | Door Lock Control |
| Power Window | ||
| Theft Deterrent | ||
| 10A | ECU-IG NO. 1 | ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD, Hill-Start Assist Control, Multi-Terrain Select and VSC |
| Adaptive Front-Lighting System | ||
| Audio System (17 Speaker w/LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/LEXUS Navigation System) | ||
| Audio System (9 Speaker w/LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (9 Speaker w/LEXUS Navigation System) | ||
| Back-Up Light | ||
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Front Wiper and Washer | ||
| Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Pre-Collision System | ||
| Remote Control Mirror | ||
| Shift Lock | ||
| Tire Pressure Warning System | ||
| Trailer Towing | ||
| 10A | ECU-IG NO. 2 | ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD, Hill-Start Assist Control, Multi-Terrain Select and VSC |
| Adaptive Front-Lighting System | ||
| Air Conditioning | ||
| Audio System (17 Speaker w/LEXUS Navigation System), LEXUS Navigation System (17 Speaker), Multi-Terrain Monitor (17 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (17 Speaker w/LEXUS Navigation System) | ||
| Audio System (9 Speaker w/LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (9 Speaker w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Automatic Glare-Resistant EC Mirror with Compass | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Center Differential Lock | ||
| Climate Control Seat and Seat Heater (Front) | ||
| Combination Meter | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Electric Tension Reducer | ||
| Electronic Modulated Air Suspension | ||
| Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Window Deicer | ||
| Front Wiper and Washer | ||
| Garage Door Opener | ||
| Glass Hatch Opener | ||
| Headlight | ||
| Headlight Cleaner | ||
| Heated Steering Wheel System | ||
| Illumination and Taillight | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Mirror Heater and Rear Window Defogger | ||
| Multi Information Display, Multi-Terrain Monitor (w/o LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (w/o LEXUS Navigation System) | ||
| Parking Assist (Intuitive Parking Assist) | ||
| Power Outlet (120V-100W) | ||
| Power Rear No. 2 Seat with Stowing Function | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Seat Belt Warning | ||
| Seat Heater (Rear) | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 10A | FOG FR | Front Fog Light |
| 10A | IGN | ABS, A-TRAC, Brake Assist, Crawl, Downhill Assist Control, EBD, Hill-Start Assist Control, Multi-Terrain Select and VSC |
| Cruise Control, Electronically Controlled Transmission and A/T Indicator and Engine Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| LEXUS ENFORM or Safety Connect | ||
| SRS | ||
| 10A | KDSS | Kinetic Dynamic Suspension System |
| 10A | TAIL | Front Fog Light |
| Illumination and Taillight | ||
| Trailer Towing | ||
| 10A | TOWING BKUP | Trailer Towing |
| 15A | P/OUTLET | Power Outlet (12V) |
| 15A | TI&TE | Power Tilt and Power Telescopic |
| 20A | 4WD | Center Differential Lock |
| 20A | AVS | Electronic Modulated Air Suspension |
| 20A | S/HTR FR | Climate Control Seat and Seat Heater (Front) |
| 20A | WASHER | Dynamic Radar Cruise Control and Lane Departure Alert |
| Front Wiper and Washer | ||
| Rear Wiper and Washer | ||
| 25A | D/L NO. 2 | Adaptive Front-Lighting System |
| Air Conditioning | ||
| Audio System (9 Speaker w/LEXUS Navigation System), LEXUS Navigation System (9 Speaker), Multi-Terrain Monitor (9 Speaker w/LEXUS Navigation System) and Parking Assist (Rear View Monitor and Wide-View Front & Side Monitor) (9 Speaker w/LEXUS Navigation System) | ||
| Audio System (w/o LEXUS Navigation System) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Combination Meter | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control and Lane Departure Alert | ||
| Electronic Modulated Air Suspension | ||
| Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock and Wireless Door Lock Control | ||
| Front Fog Light | ||
| Front Wiper and Washer | ||
| Glass Hatch Opener | ||
| Headlight | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| LEXUS ENFORM or Safety Connect | ||
| Power Seat (Driver's Seat) | ||
| Power Tilt and Power Telescopic | ||
| Power Window | ||
| Rear Wiper and Washer | ||
| Remote Control Mirror | ||
| Sliding Roof | ||
| Theft Deterrent | ||
| 25A | DOOR D | Mirror Heater and Rear Window Defogger |
| Power Window | ||
| Remote Control Mirror | ||
| 25A | DOOR RL | Power Window |
| 25A | DOOR RR | Power Window |
| 25A | S/ROOF | Sliding Roof |
| 30A | DOOR P | Mirror Heater and Rear Window Defogger |
| Power Window | ||
| Remote Control Mirror | ||
| 30A | P/SEAT FL | Power Seat (Driver's Seat) |
| 30A | P/SEAT FR | Power Seat (Front Passenger's Seat) |
| 30A | PSB | Pre-Collision System |
| 30A | WIP | Front Wiper and Washer |
