Instrument Panel Junction Block Assembly Instrument Panel Reinforcement: Overview

For additional information, refer to Figure.

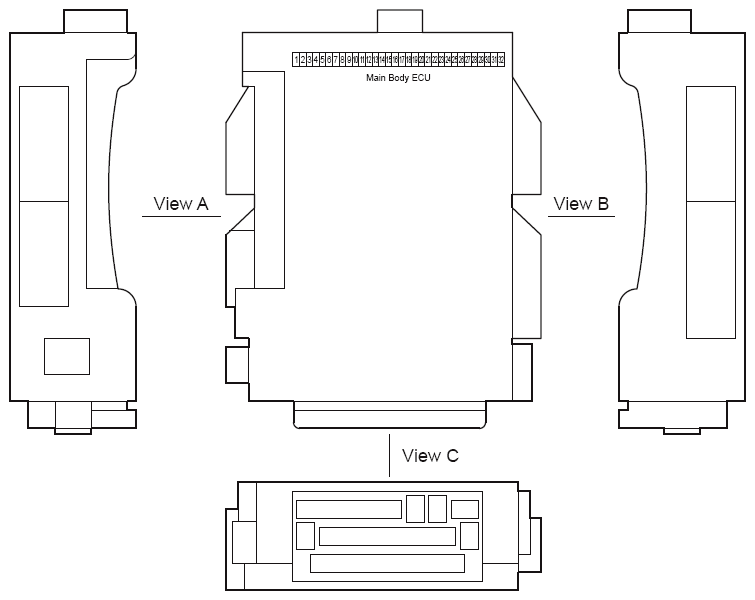

Fig 1: View of Instrument Panel J/B Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

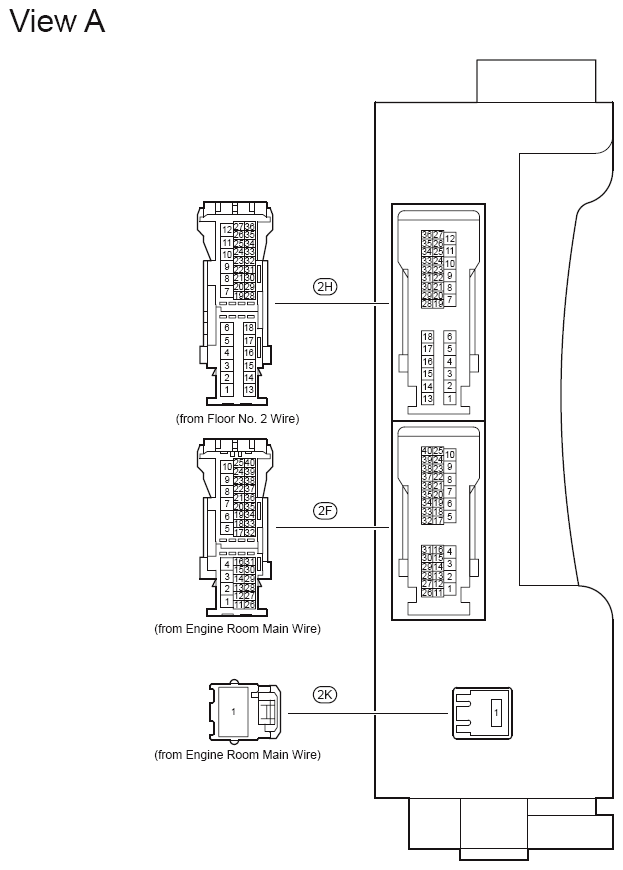

Fig 2: Instrument Panel J/B Assembly (View A) Connector Locations

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
