DTC B1788: Rear Occupant Classification Sensor RH Collision Detection [08/2013 - ]: Wiring Diagram

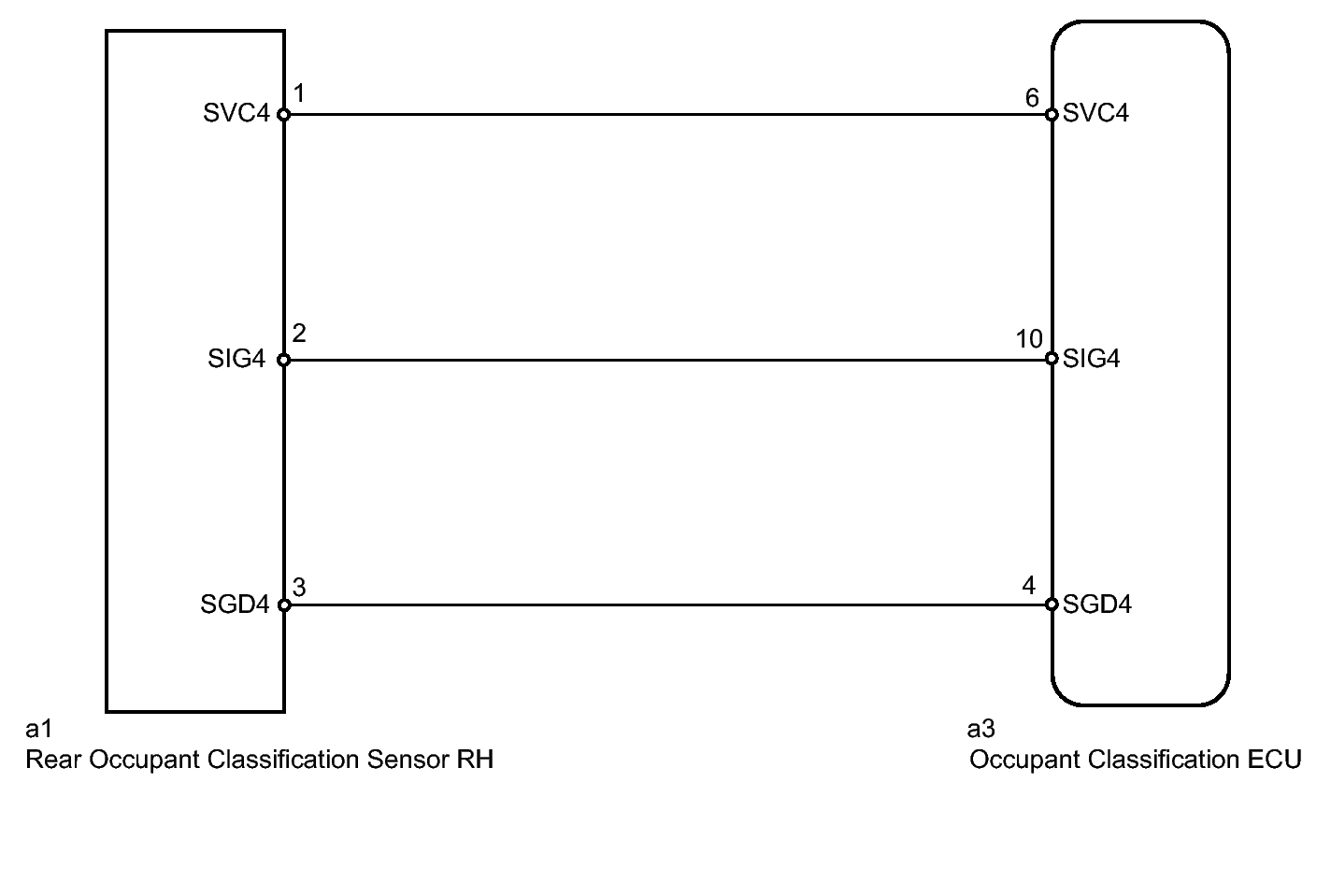

Fig 1: Occupant Classification ECU Wiring Diagram
GTY284352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
