System Diagram [10/2016 - 09/2018]

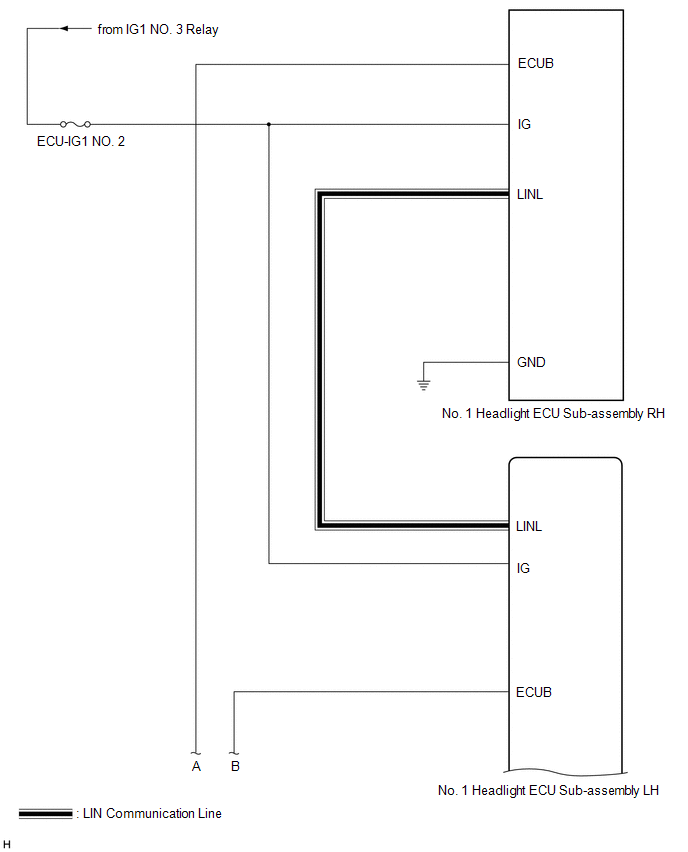

Fig 1: Automatic Headlight Beam Level Control System Diagram (1 Of 2)
GTY652641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

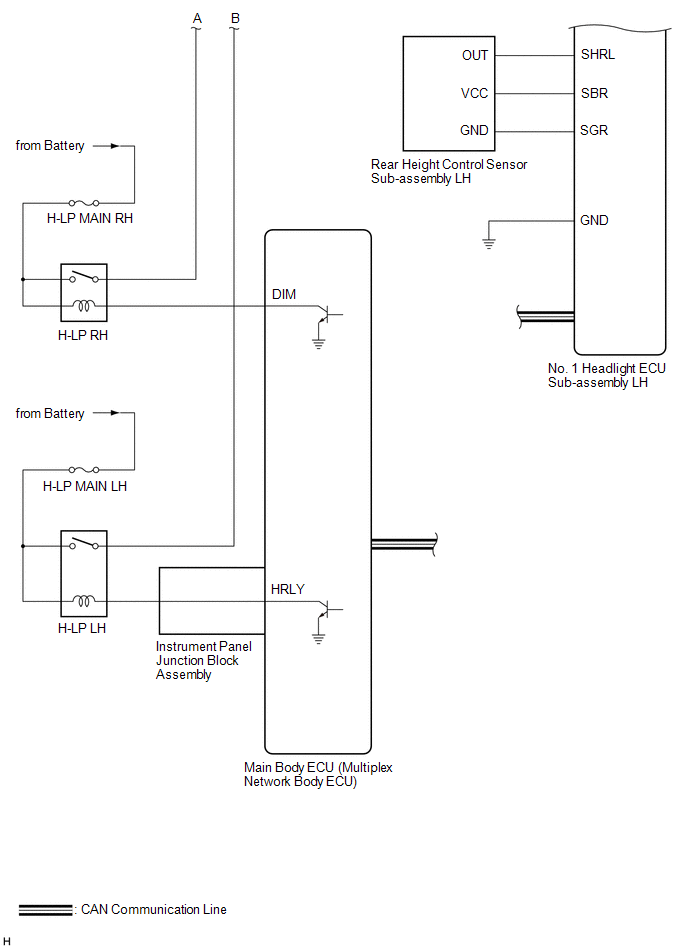

Fig 2: Automatic Headlight Beam Level Control System Diagram (2 Of 2)
GTY674726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. HEADLIGHT ASSEMBLY CIRCUIT

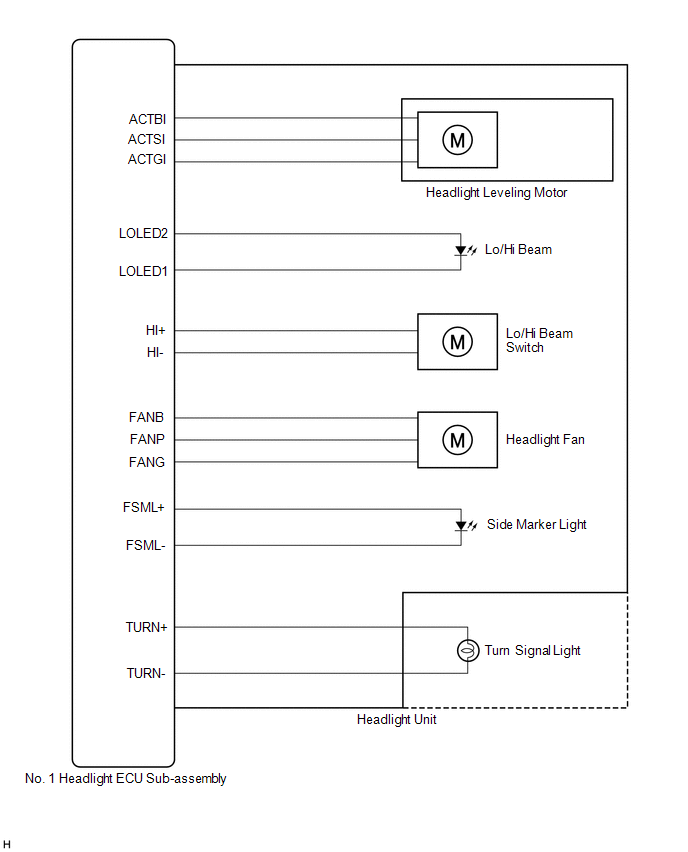

    Fig 3: Headlight Assembly Circuit Wiring Diagram
    GTY683750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
