Power Source Mode does not Change [10/2014 - ]: Wiring Diagram

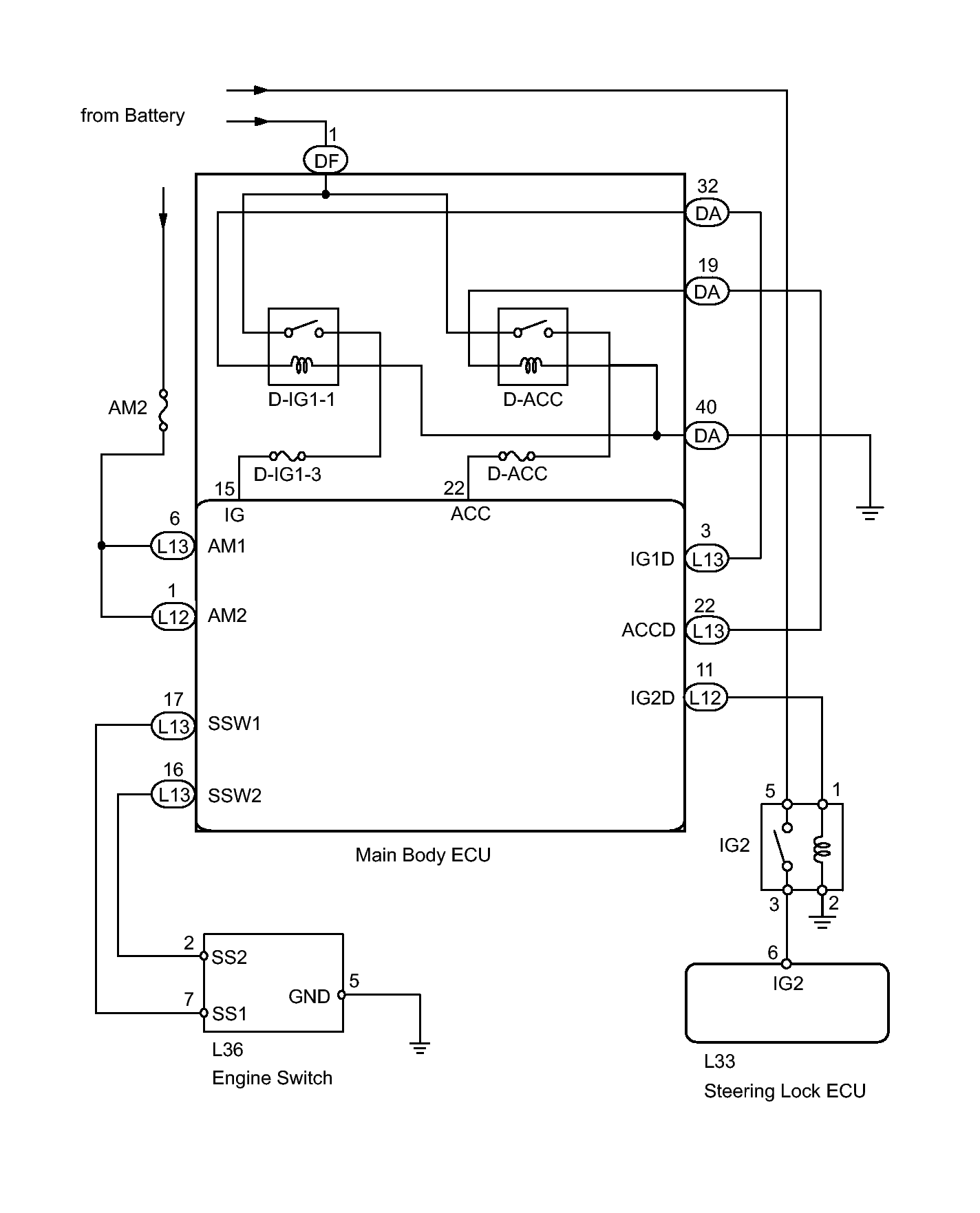

Fig 1: Engine Switch Wiring Diagram
GTY411526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
