Multi-media Module Receiver Assembly Communication Stop Mode [10/2014 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multi-media Module Receiver Assembly Communication Stop Mode [10/2014 - ]: Wiring Diagram

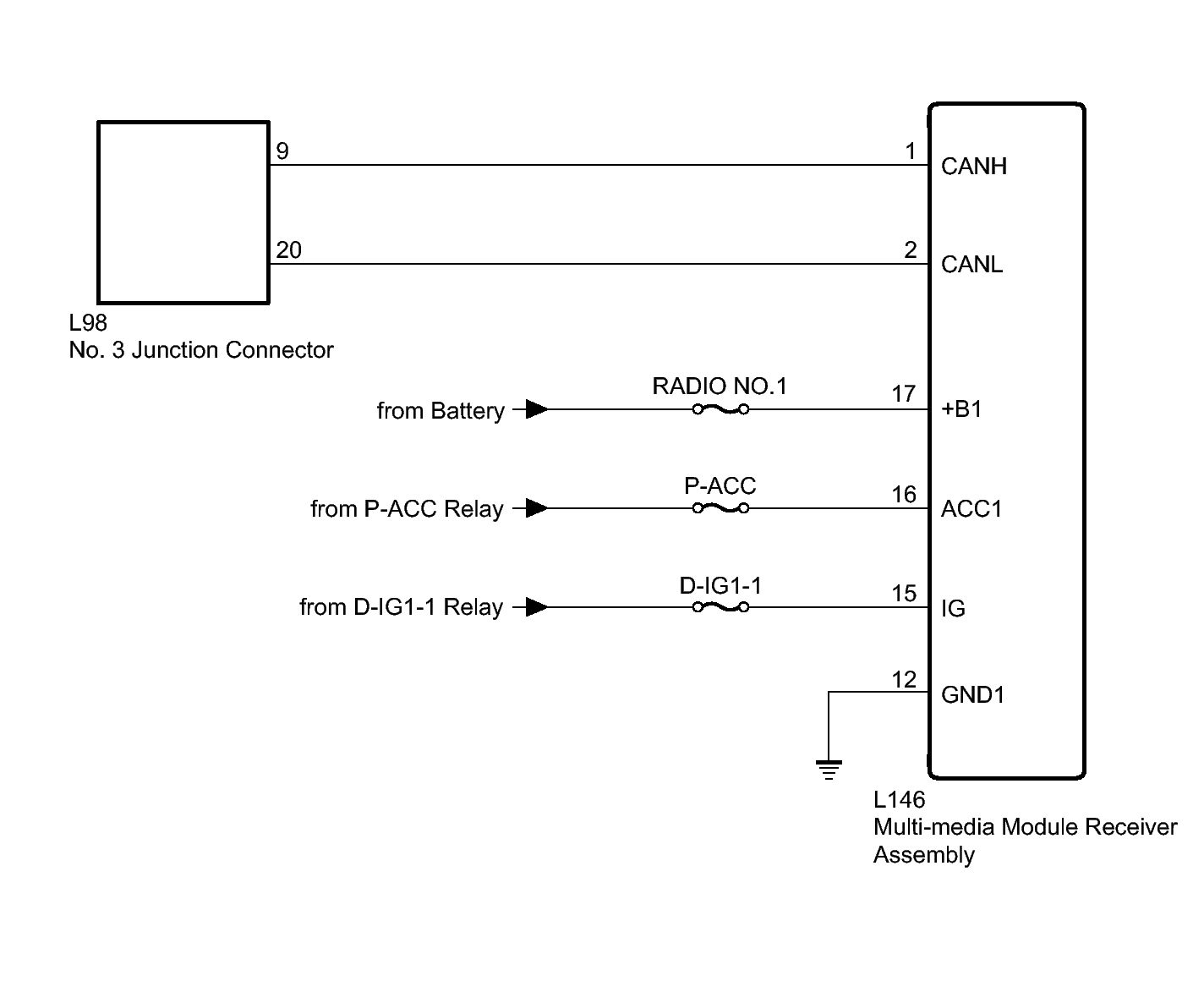

Fig 1: Multi-media Module Receiver Assembly Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
