DTC B2602: Key Unlock Warning Switch Circuit Malfunction; DTC B2606: Key Code Confirm Signal Malfunction [10/2014 - ]: Wiring Diagram

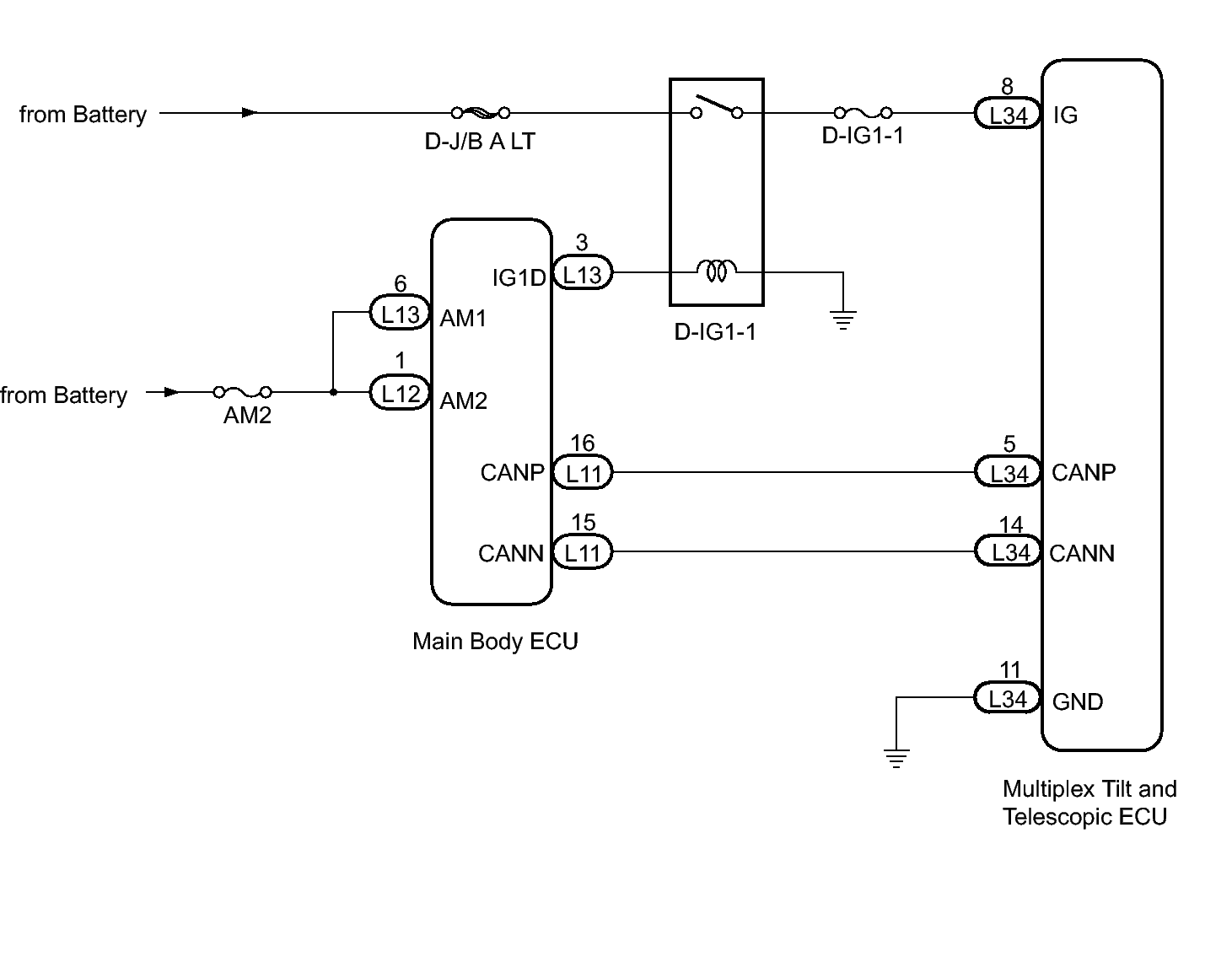

Fig 1: Multiplex Tilt And Telescopic ECU Wiring Diagram
GTY408535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
