All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate [08/2013 - ]: Procedure

  1. READ VALUE USING TECHSTREAM (AUTO ENTRY CANCEL SW)
    1. Using the Techstream, read the Data List.
      SMART ACCESS

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Auto Entry Cancel SW Entry function cancel/ON or OFF Mode status displayed -
      RESULT

      Result Proceed to
      Entry function cancel is OFF A
      Entry function cancel is ON B

    B → See step   6

    A: Go to next step

  2. CHECK WAVE ENVIRONMENT
    1. Move the electrical key transmitter as described below and perform the operation inspection. Refer to OPERATION CHECK [08/2013 - ] .

      HINT:

      • When the electrical key transmitter is brought near the door outside handle or electrical key antenna, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • The transmitting wave of the wireless function and entry function are the same, but the wave logic is different. As a result, it is possible that only the wireless function or only the entry function is affected by wave interference.

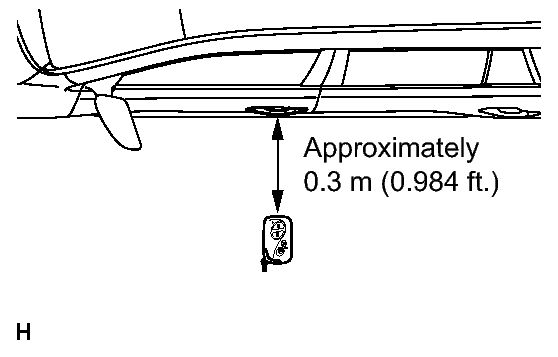

      1. Bring the electrical key transmitter near the door outside handle (for driver side), and perform a driver door entry lock and unlock operation check.
        GTY114930Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not be possible.

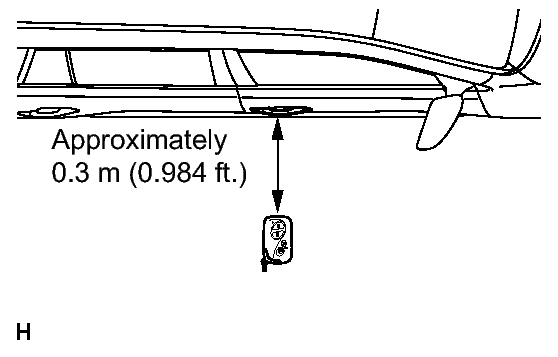

      2. Bring the electrical key transmitter near the door outside handle (for front passenger side), and perform a front passenger door entry lock and unlock operation check.
        GTY114931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not be possible.

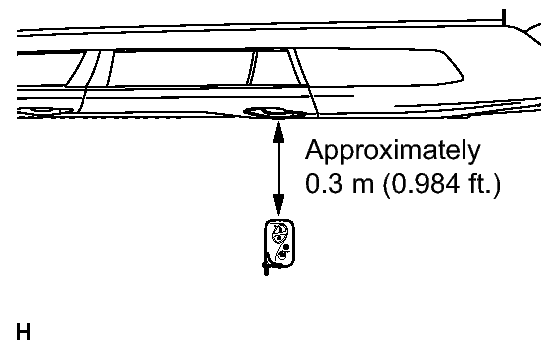

      3. Bring the electrical key transmitter near the rear door outside handle LH, and perform a rear left door entry lock and unlock operation check.
        GTY114932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not be possible.

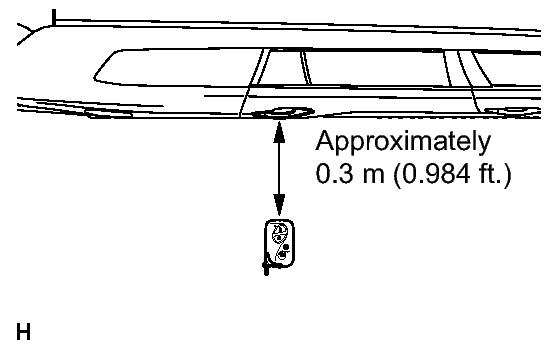

      4. Bring the electrical key transmitter near the rear door outside handle RH, and perform a rear right door entry lock and unlock operation check.
        GTY114934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the door handle, communication may not be possible.

      5. Bring the electrical key transmitter near the indoor electrical key antenna (in center console), and perform an engine start check.
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the center console, communication may not be possible.

      6. Bring the electrical key transmitter near the indoor electrical key antenna (in rear No. 1 seat cushion), and perform an engine start check.
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the rear No. 1 seat cushion, communication may not be possible.

      7. Bring the electrical key transmitter near the indoor electrical key antenna (in rear No. 2 seat cushion), and perform an engine start check.
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the rear No. 2 seat cushion, communication may not be possible.

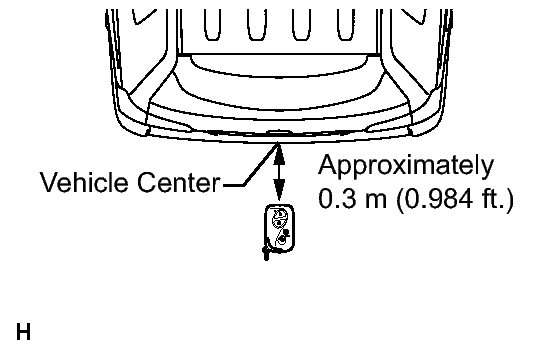

      8. Bring the electrical key transmitter near the electrical key antenna (in rear bumper), and perform an entry back door open function check.
        GTY114935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:

        If the key is brought within 0.2 m (0.656 ft.) of the rear bumper, communication may not be possible.

        HINT:

        If the inspection result is that the problem only occurs in certain locations or times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

        RESULT

        Result Proceed to
        All operation checks fail A
        Some operation checks are normal B

    B → AFFECTED BY WAVE INTERFERENCE

    A: Go to next step

  3. KEY DIAGNOSTIC MODE

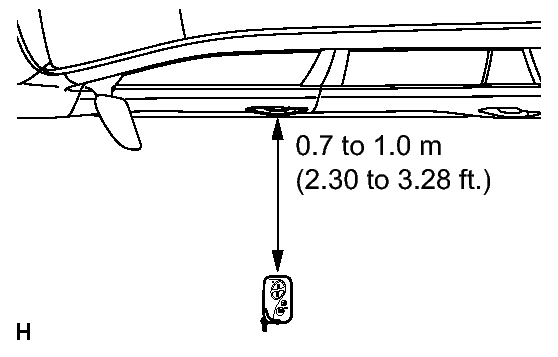

    1. Diagnostic mode inspection (door electrical key oscillator).
      GTY114936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Driver Side.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

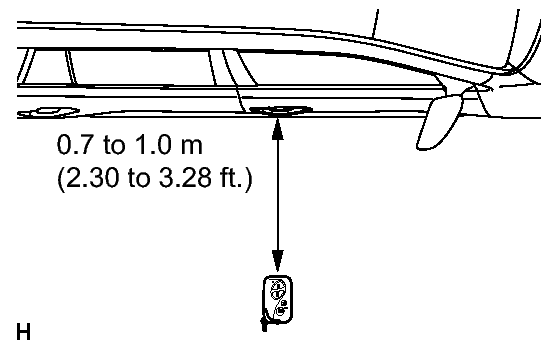

    2. Diagnostic mode inspection (door electrical key oscillator).
      GTY114937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Passenger Side.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

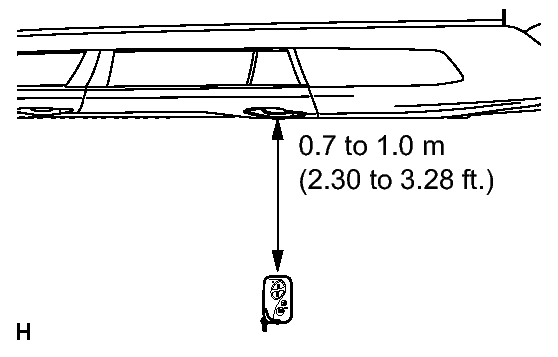

    3. Diagnostic mode inspection (door electrical key oscillator).
      GTY114938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Driver Side Rear.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.

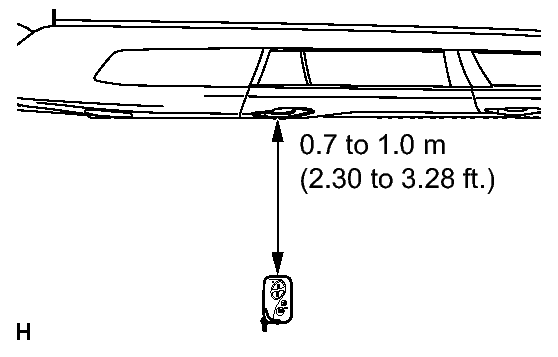

    4. Diagnostic mode inspection (door electrical key oscillator).
      GTY114939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Passenger Side Rear.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    5. Diagnostic mode inspection (indoor electrical key antenna [for Front Floor]).
      GTY114941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Front Room.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    6. Diagnostic mode inspection (indoor electrical key antenna [for Rear Floor]).
      GTY114942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Rear Room.
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    7. Diagnostic mode inspection (indoor electrical key antenna [for Luggage Compartment]).
      GTY114943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Back Door (inside).
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
    8. Diagnostic mode inspection (electrical key antenna [for Outside Luggage Compartment]).
      GTY114940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Smart Access / Smart Communication Check / Overhead + Back Door (outside).
      5. When the electrical key transmitter is in the position shown in the illustration, check that the wireless door lock buzzer sounds.
        RESULT

        Result Proceed to
        All diagnostic mode inspections fail A
        Some diagnostic mode inspections fail (door) B
        Some diagnostic mode inspections fail (interior) C
        Some diagnostic mode inspections fail (back door) D
        All diagnostic mode inspections are normal E

    B → See step   7

    C → See step   8

    D → See step   9

    E → See step   10

    A: Go to next step

  4. REPLACE ELECTRICAL KEY TRANSMITTER
    1. Replace the electrical key transmitter with a new one.
    2. Perform the registration procedure. Refer to REMOVAL [08/2013 - ] .

    NEXT: Go to next step

  5. CHECK OPERATION
    1. Check the operation of the entry lock function. Refer to OPERATION CHECK [08/2013 - ] .

      OK

      Operates normally

    NG → See step   11

    OK → END

  6. PERFORM CANCELLATION OF ENTRY KEY CANCEL FUNCTION. Refer to  CUSTOMIZE PARAMETERS [08/2013 - ]
  7. GO TO DTC OF OTHER COMPONENTS (PROCEED TO PROBLEM SYMPTOM FLOWCHART FOR EACH DOOR). Refer to  PROBLEM SYMPTOMS TABLE [08/2013 - ]
  8. GO TO OTHER FLOWCHART. Refer to  Room Oscillator does not Recognize Key [08/2013 - ]
  9. GO TO OTHER FLOWCHART. Refer to  Back Door Entry Lock and Unlock Functions do not Operate [08/2013 - ]
  10. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2013 - ]
  11. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [08/2013 - ]
