Back Door Entry Lock Function does not Operate [08/2013 - ]: Wiring Diagram

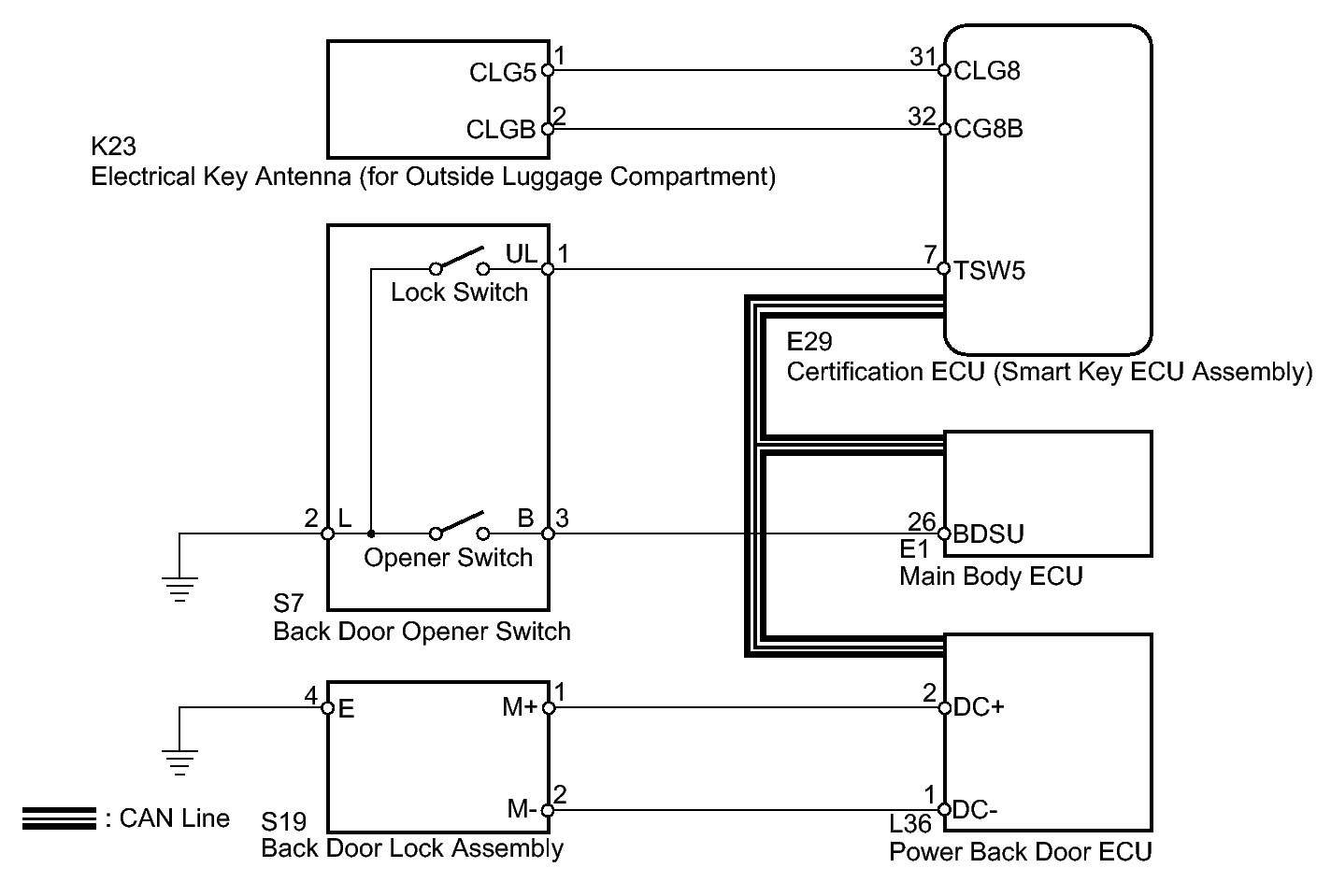

Fig 1: Back Door Entry Wiring Diagram
GTY414764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
