On-Vehicle Inspection [10/2014 - ]: Procedure

  1. INSPECT INTAKE SYSTEM

    HINT:

    Perform "Inspection After Repair" after repairing air leaks in the intake system.

    Refer to INITIALIZATION [10/2014 - 05/2019] , or refer to INITIALIZATION [05/2019 - ]

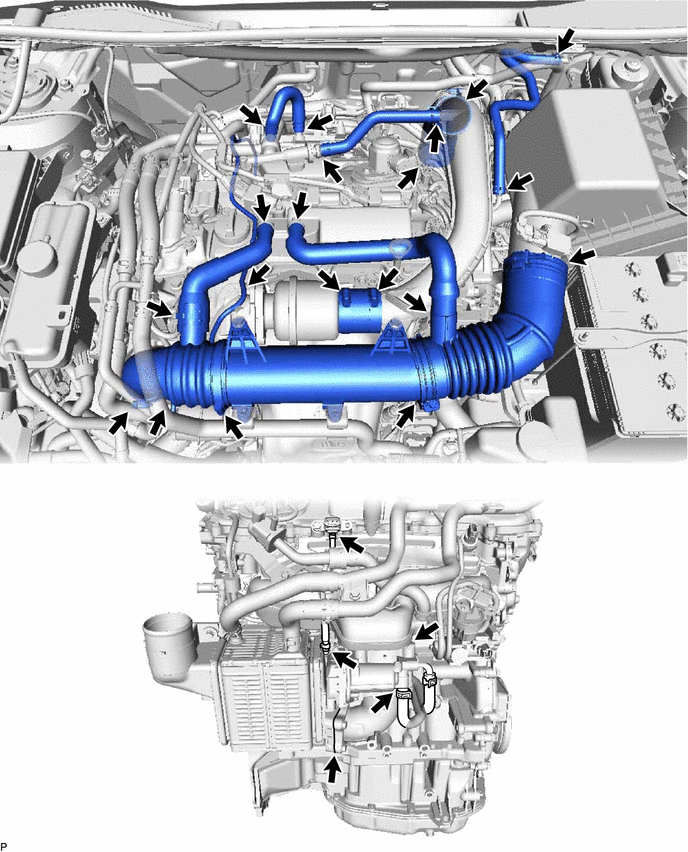

    1. Check that there are no vacuum leaks at the points shown in the illustration.
      GTY948154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
