Removal [10/2014 - ]: Procedure

  1. REMOVE AIR FUEL RATIO SENSOR

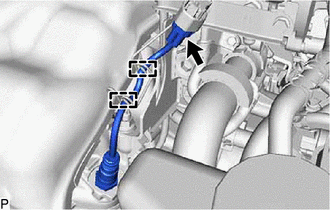

    1. Disconnect the air fuel ratio sensor connector.
      GTY506764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the 2 wire harness clamps.

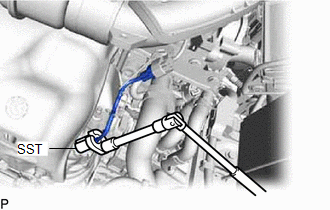

    3. Using SST, remove the air fuel ratio sensor.
      • SST: 09224-00011
      GTY510898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
