System Diagram [03/2014 - ]

  1. MOST NETWORK COMMUNICATION LINE

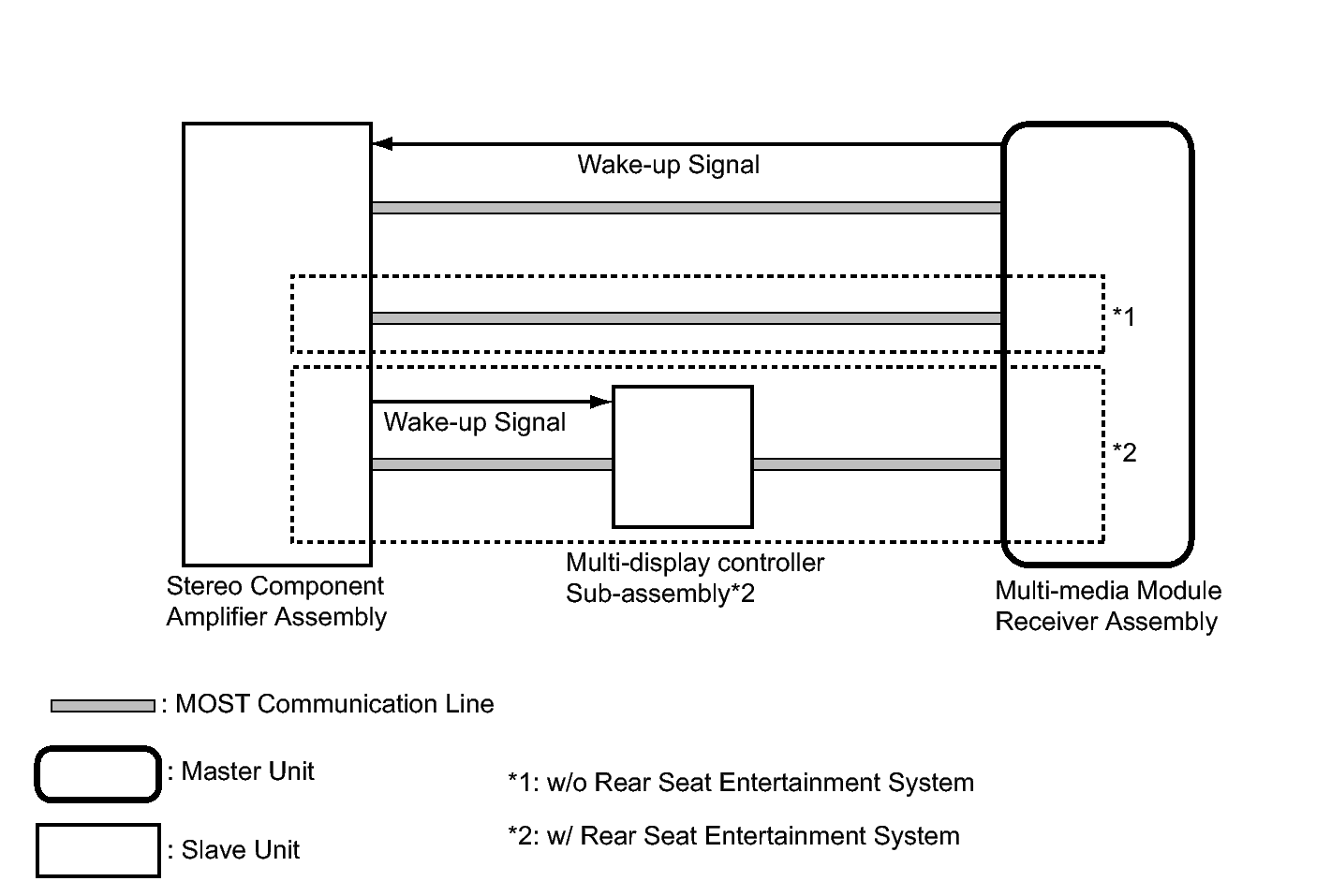

    Fig 1: Lexus Enform System Diagram (MOST Network Communication Line)
    GTY414096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. OTHER

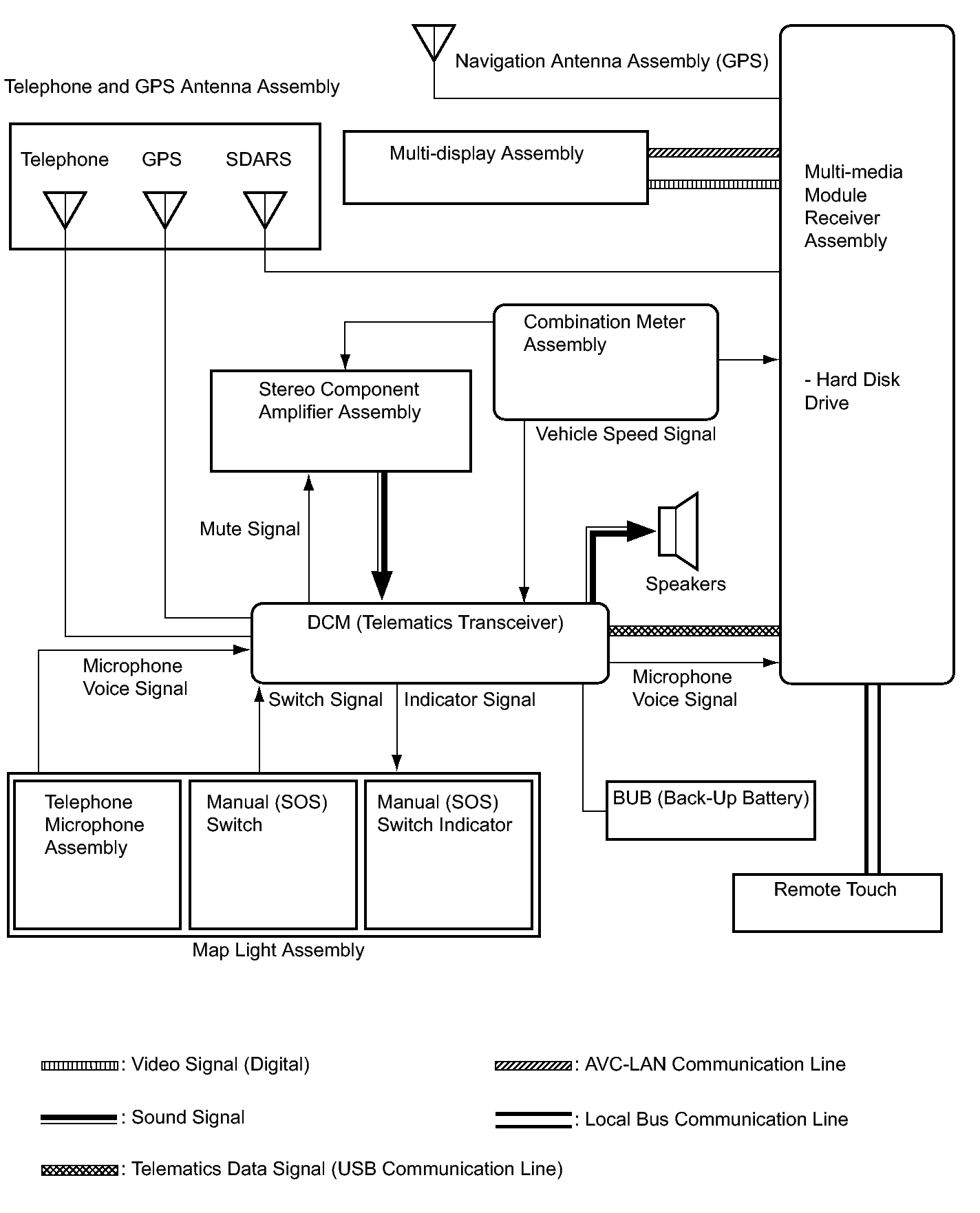

    Fig 2: Lexus Enform System Diagram (Other)
    GTY415876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
