Inspection [07/2015 - ]: Procedure

  1. INSPECT ATF TEMPERATURE SENSOR ASSEMBLY
    1. Measure the resistance according to the value(s) in the table below.

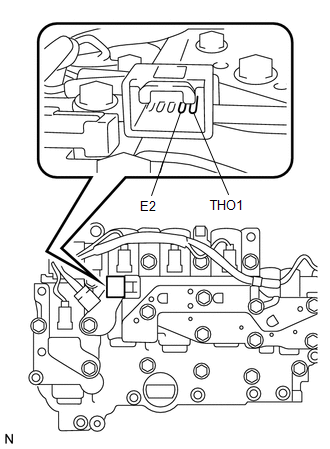

      GTY171980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      THO1 - E2 10°C (50°F) 5 to 8 kΩ
      THO1 - E2 25°C (77°F) 2.5 to 4.5 kΩ
      THO1 - E2 110°C (230°F) 0.22 to 0.28 kΩ
      THO1 - Body ground Always 10 kΩ or higher

      If the resistance is out of the specified range with the ATF temperature shown in the preceding table, replace the ATF temperature sensor assembly. Otherwise, the driveability of the vehicle may decrease.
