Multi-media Module Receiver Assembly Communication Stop Mode [09/2014 - 10/2015]: Procedure

1. Disconnect the cable from the negative (-) battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the multi-media module receiver assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N68-1 (CANH) - N68-2 (CANL)	Cable disconnected from negative (-) battery terminal	54 to 69 Ω

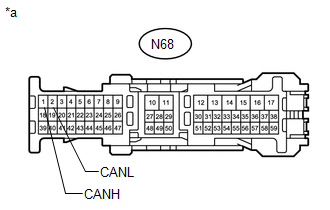

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

Result:

NG

REPAIR OR REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY CAN BRANCH WIRE OR CONNECTOR (CANH, CANL)

Result:

OK

See step  2

1. Connect the cable to the negative (-) battery terminal.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   When connecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] ).

2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   N68-17 (+B1) - Body ground	Always	11 to 14 V
   N68-16 (ACC1) - Body ground	Engine switch on (ACC)	11 to 14 V
   N68-15 (IG) - Body ground	Engine switch on (IG)	11 to 14 V

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   N68-12 (GND1) - Body ground	Always	Below 1 Ω

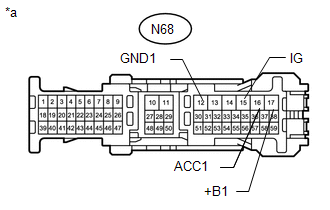

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

Result:

OK

REPLACE MULTI-MEDIA MODULE RECEIVER ASSEMBLY

(Refer to REMOVAL [09/2014 - 09/2017] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
