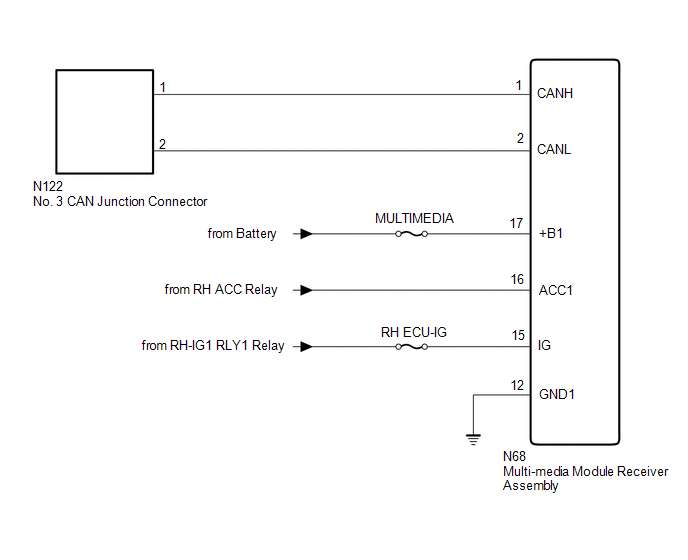

Multi-media Module Receiver Assembly Communication Stop Mode [09/2014 - 10/2015]: Wiring Diagram

GTY668175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
