System Diagram [09/2014 - 09/2017]

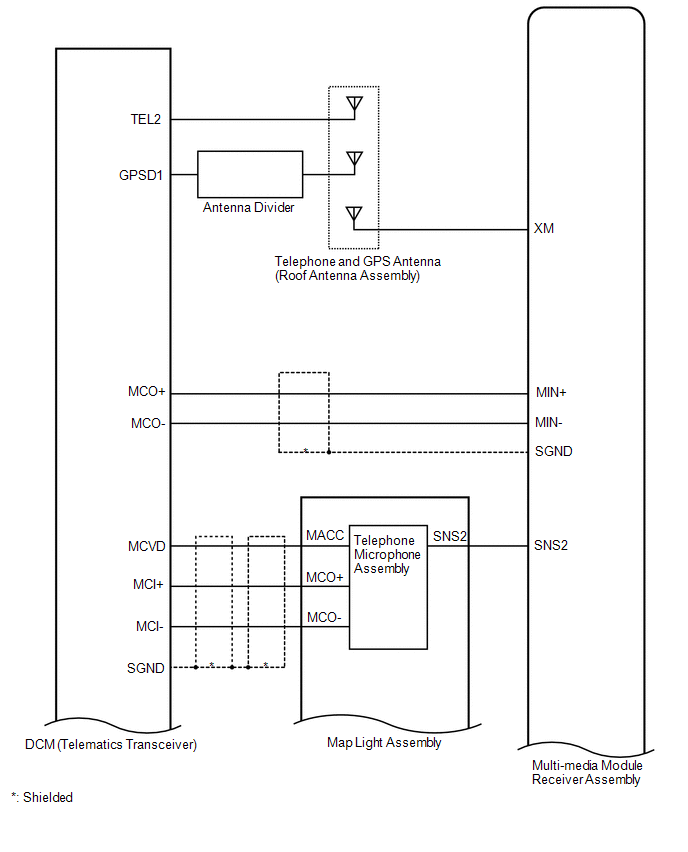

GTY521579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

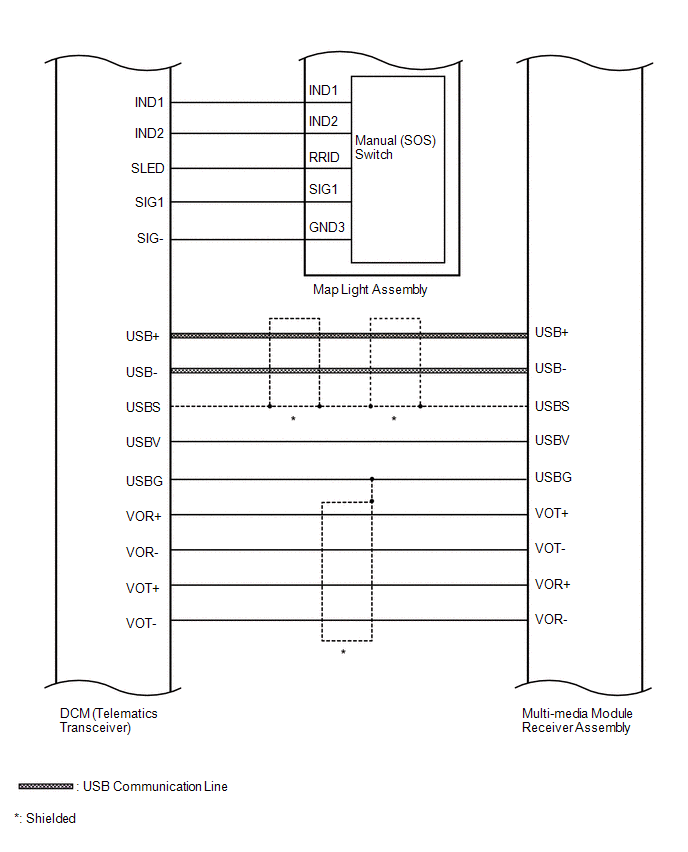

GTY514825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

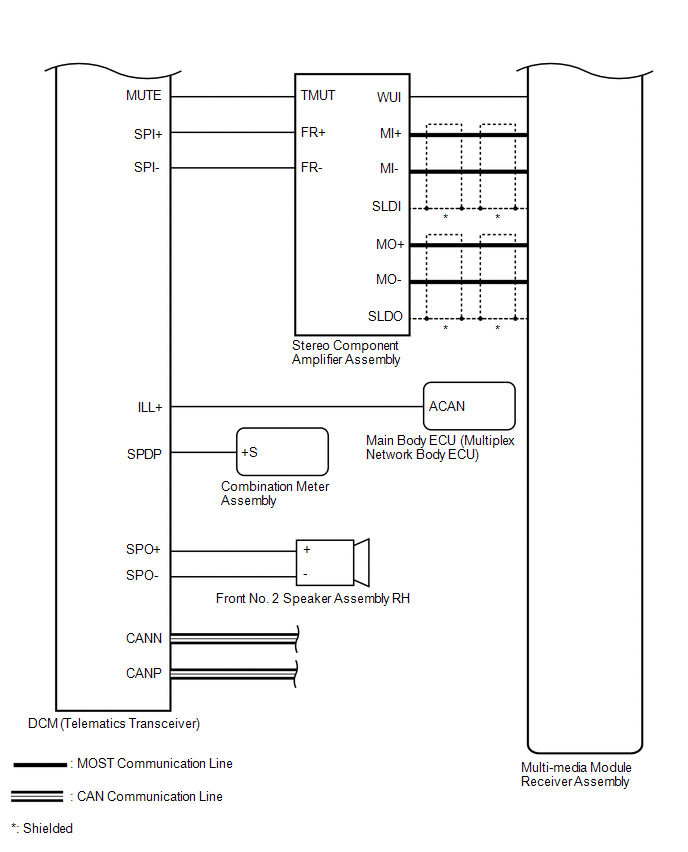

GTY497381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
