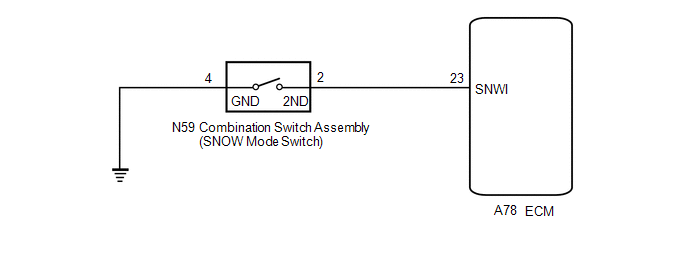

Pattern Select Switch Snow Mode Circuit [10/2015 - ]: Wiring Diagram

GTY644536

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
