Parts Location [09/2014 - 10/2015]: Illustration

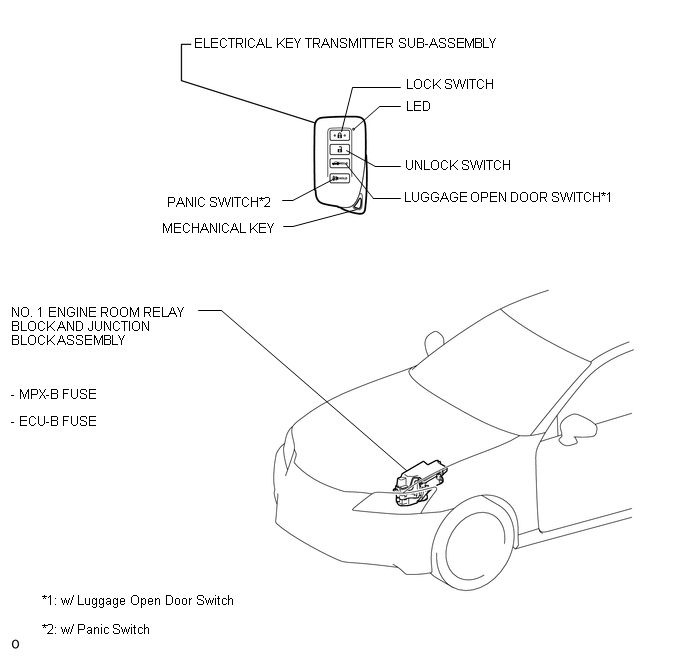

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

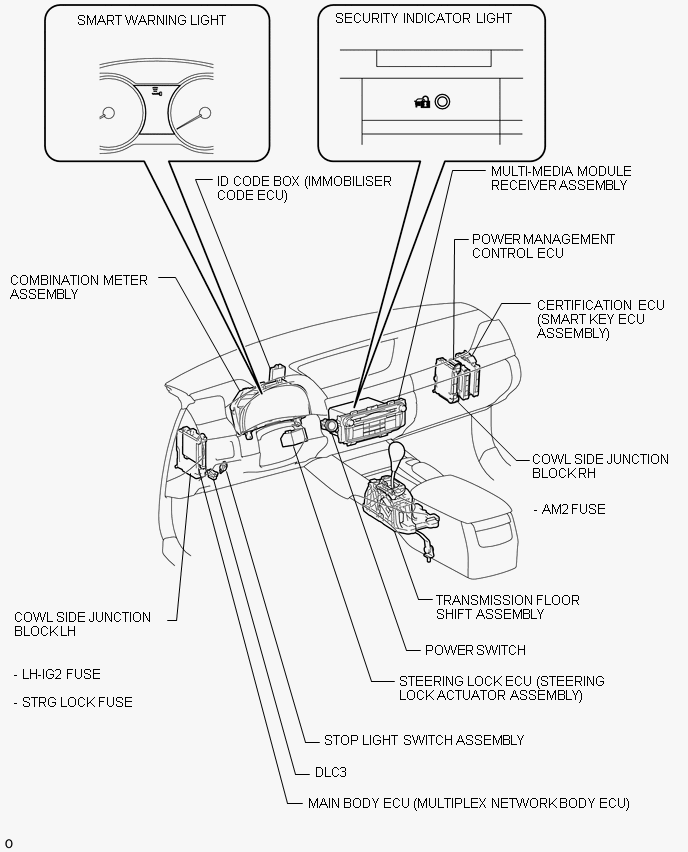

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

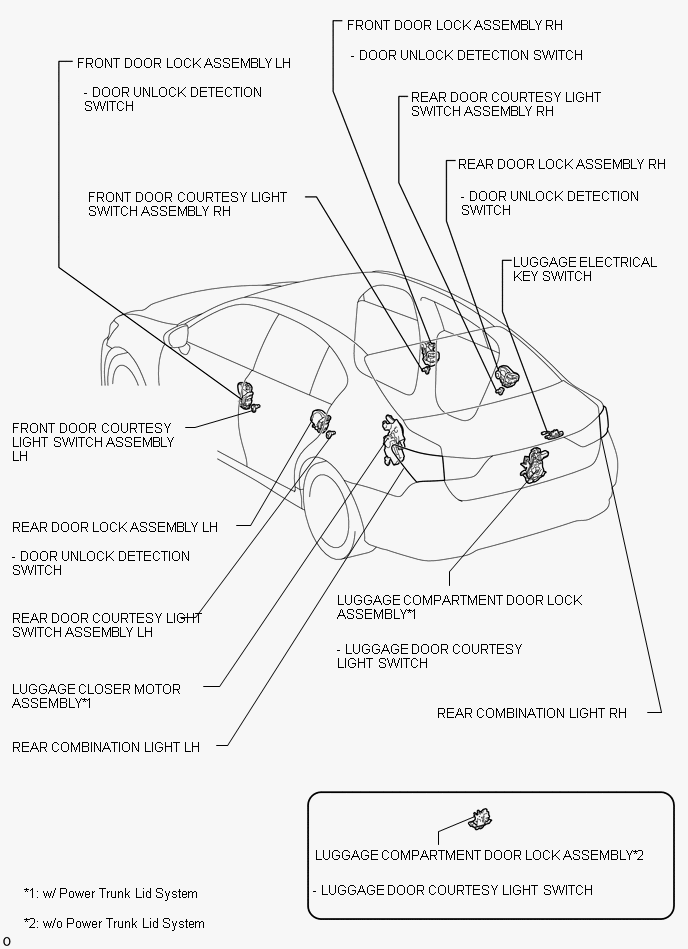

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

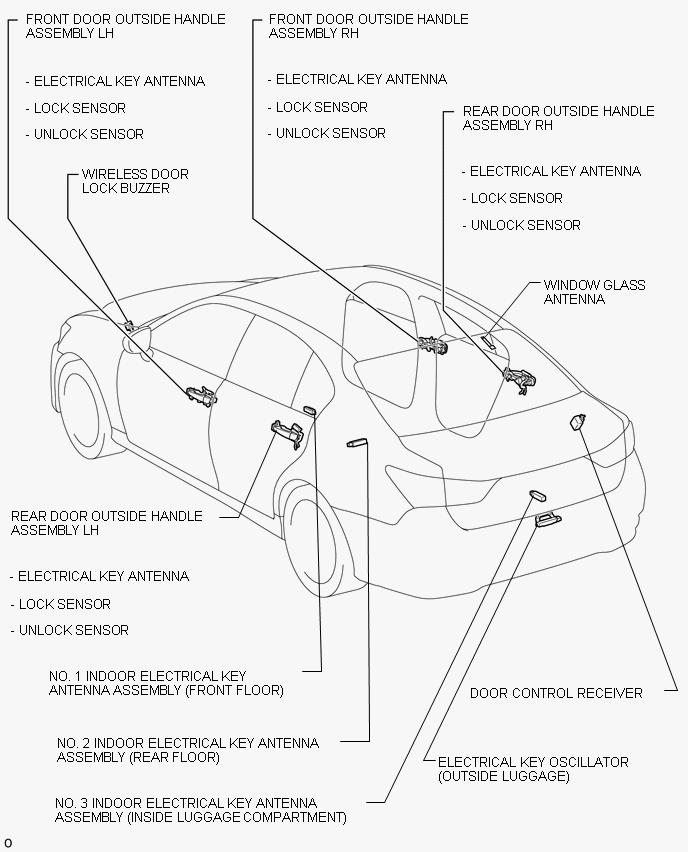

Fig 1: Smart Access System With Push-Button Start (For Entry Function) Components Location (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
