System Diagram [09/2014 - ]

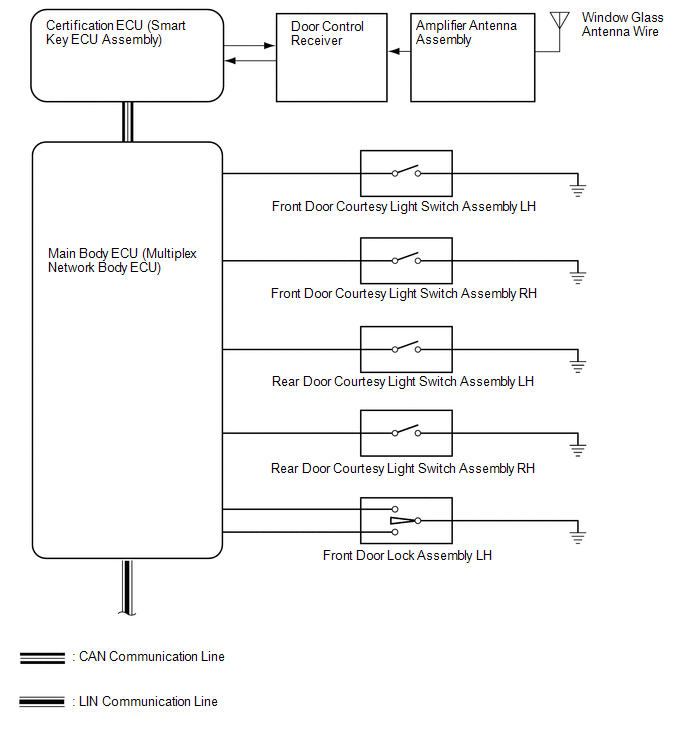

Fig 1: Power Window Control System Wiring Diagram (1 Of 2)
GTY405740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

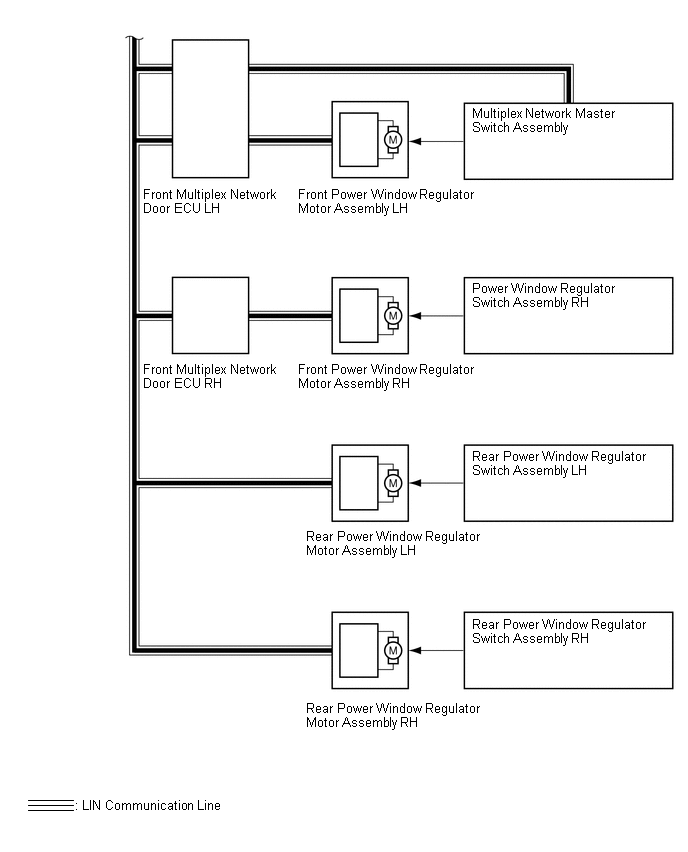

Fig 2: Power Window Control System Wiring Diagram (2 Of 2)
GTY396328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU Receiving ECU Signal Communication Method
Multiplex network master switch assembly Front power window regulator motor assembly LH Power window auto up and down signal LIN
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH
 Power window remote up and down signal LIN
Main body ECU (Multiplex network body ECU)
  • Front power window regulator motor assembly LH
  • Front power window regulator motor assembly RH
  • Rear power window regulator motor assembly LH
  • Rear power window regulator motor assembly RH
 Power window operation permission signal LIN
Certification ECU (Smart key ECU assembly) Main body ECU (Multiplex network body ECU) Wireless power window up and down signal CAN
