DTC C1271/71: Low Output Signal of Front Speed Sensor RH (Test Mode DTC); DTC C1272/72: Low Output Signal of Front Speed Sensor LH (Test Mode DTC); DTC C1464/31: Front Speed Sensor RH Circuit; DTC C1465/32: Front Speed Sensor LH Circuit [09/2014 - 10/2015]: Procedure

1. Using the Techstream, check for any momentary interruptions in the wire harness and connector corresponding to a DTC (See page. Refer to CHECK FOR INTERMITTENT PROBLEMS [09/2014 - ] ).
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Speed Open	Front speed sensor RH open detection / Error or Normal	Error: Momentary interruption Normal: Normal	-
   FL Speed Open	Front speed sensor LH open detection / Error or Normal	Error: Momentary interruption Normal: Normal	-

   OK

   There are no momentary interruptions.

   HINT:

   Perform the above inspection before removing the sensor and connector.

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  2

1. Select the Data List on the Techstream (See page. Refer to DATA LIST / ACTIVE TEST [09/2014 - 10/2015] ).
   ABS/VSC/TRAC



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Wheel Speed	Front wheel speed sensor RH / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
   FL Wheel Speed	Front wheel speed sensor LH / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations

2. Check the speed value output from the speed sensor displayed on the Techstream.

   HINT:

   Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart (See page. Refer to OPERATION CHECK [09/2014 - 10/2015] ).

   OK

   The speed value output from the speed sensor displayed on the Techstream is similar to the speed indicated on the speedometer.

Result:  NG

NG

See step  5

Result:  OK

OK

See step  3

1. Turn the power switch off.
2. Perform the sensor check in the Test Mode procedure (See page. Refer to TEST MODE PROCEDURE [09/2014 - 10/2015] ).

   OK

   All Test Mode DTCs are cleared.

Result:  NG

NG

See step  5

Result:  OK

OK

See step  4

1. Turn the power switch off.
2. Clear the DTCs (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).
3. Turn the power switch on (READY).
4. Drive the vehicle at a speed of 10 km/h (6 mph) or more for at least 60 seconds.
5. Check if the same DTC is output (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).

   Result

   Result	Proceed to
   DTCs (C1464/31 and C1465/32) are not output	A
   DTCs (C1464/31 and/or C1465/32) are output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step (See page. Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 10/2015] ).

Result:  A

A

CHECK FOR INTERMITTENT PROBLEMS

(See page. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 10/2015] )

Result:  B

B

See step  10

1. Turn the power switch off.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

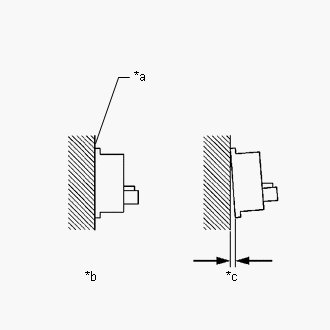

2. Check the speed sensor installation.

   OK

   There is no clearance between the sensor and the front axle hub.

   TEXT IN ILLUSTRATION



   *a	No clearance
   *b	OK
   *c	NG

Result:  NG

NG

INSTALL FRONT SPEED SENSOR CORRECTLY

(See page. Refer to INSTALLATION [09/2014 - ] )

Result:  OK

OK

See step  6

1. Make sure that there is no looseness at the locking part and the connecting part of the connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the skid control sensor wire connectors.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   Tester Connection	Condition	Specified Condition
   o1-1 (FR-) - Ao1-1	Always	Below 1 Ω
   o1-2 (FR+) - Ao1-2	Always	Below 1 Ω
   o1-1 (FR-) - o1-2 (FR+)	Always	10 kΩ or higher
   o1-1 (FR-) - Body ground	Always	10 kΩ or higher
   o1-2 (FR+) - Body ground	Always	10 kΩ or higher

   for LH

   Tester Connection	Condition	Specified Condition
   o2-1 (FL-) - oA2-2	Always	Below 1 Ω
   o2-2 (FL+) - oA2-1	Always	Below 1 Ω
   o2-1 (FL-) - o2-2 (FL+)	Always	10 kΩ or higher
   o2-1 (FL-) - Body ground	Always	10 kΩ or higher
   o2-2 (FL+) - Body ground	Always	10 kΩ or higher

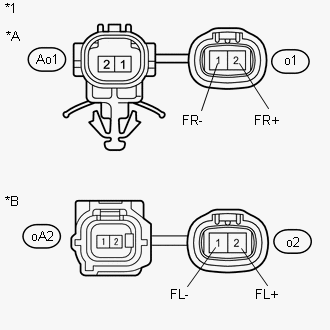

   TEXT IN ILLUSTRATION



   *A	for RH
   *B	for LH
   *1	Skid Control Sensor Wire

   NOTE:

   Check the speed sensor signal after replacement (See page. Refer to TEST MODE PROCEDURE [09/2014 - 10/2015] ).

Result:  NG

NG

REPLACE SKID CONTROL SENSOR WIRE

(See page. Refer to REMOVAL [09/2014 - ] )

Result:  OK

OK

See step  7

1. Reconnect the Ao1 or oA2 skid control sensor wire connector.
2. Make sure that there is no looseness at the locking part and the connecting part of the connector.
3. Disconnect the A14 or A16 skid control ECU assembly connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   Tester Connection	Condition	Specified Condition
   A14-16 (FR+) - o1-2 (FR+)	Always	Below 1 Ω
   A14-16 (FR+) -Body ground	Always	10 kΩ or higher
   A14-15 (FR-) - o1-1 (FR-)	Always	Below 1 Ω
   A14-15 (FR-) - Body ground	Always	10 kΩ or higher

   for LH

   Tester Connection	Condition	Specified Condition
   A16-16 (FL+) - o2-2 (FL+)	Always	Below 1 Ω
   A16-16 (FL+) - Body ground	Always	10 kΩ or higher
   A16-15 (FL-) - o2-1 (FL-)	Always	Below 1 Ω
   A16-15 (FL-) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  8

1. Reconnect the skid control ECU assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Turn the power switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   for RH

   Tester Connection	Switch Condition	Specified Condition
   o1-2 (FR+) - Body ground	Power switch on (IG)	6.7 to 14 V

   for LH

   Tester Connection	Switch Condition	Specified Condition
   o2-2 (FL+) - Body ground	Power switch on (IG)	6.7 to 14 V

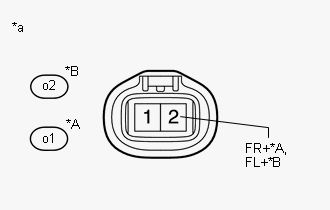

   TEXT IN ILLUSTRATION



   *A	for RH
   *B	for LH
   *a	Front view of skid control sensor wire (to Front Speed Sensor)

Result:  NG

NG

REPLACE SKID CONTROL ECU ASSEMBLY

(See page. Refer to REMOVAL [09/2014 - ] )

Result:  OK

OK

See step  9

1. Turn the power switch off.
2. Reconnect the front speed sensor connector.
3. Clear the DTCs (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).
4. Turn the power switch on (READY).
5. Drive the vehicle at a speed of 10 km/h (6 mph) or more for at least 60 seconds.
6. Check if the same DTC is output (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).

   Result

   Result	Proceed to
   DTCs (C1464/31 and/or C1465/32) are output	A
   DTCs (C1464/31 and C1465/32) are not output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step (See page. Refer to PROBLEM SYMPTOMS TABLE [09/2014 - 10/2015] ).

Result:  B

B

CHECK FOR INTERMITTENT PROBLEMS

(See page. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2014 - 10/2015] )

Result:  A

A

See step  10

1. Turn the power switch off.
2. Replace the front speed sensor and the front axle hub sub-assembly (front speed sensor rotor) (See page. Refer to REMOVAL [09/2014 - ] ).

   HINT:

   The front speed sensor rotor is incorporated into the front axle hub.

   If the front speed sensor rotor needs to be replaced, replace the front axle hub sub-assembly with front speed sensor.

   NOTE:

   Check the speed sensor signal after replacement (See page. Refer to TEST MODE PROCEDURE [09/2014 - 10/2015] ).

Result:  NEXT

NEXT

See step  11

1. Clear the DTCs (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).
2. Turn the power switch on (READY).
3. Drive the vehicle at a speed of 10 km/h (6 mph) or more for at least 60 seconds.
4. Check if the same DTC is output (See page. Refer to DTC CHECK / CLEAR [09/2014 - ] ).

   Result

   Result	Proceed to
   DTCs (C1464/31 and/or C1465/32) are output	A
   DTCs (C1464/31 and C1465/32) are not output	B

Result:  A

A

REPLACE SKID CONTROL ECU ASSEMBLY

(See page. Refer to REMOVAL [09/2014 - ] )

Result:  B

B

END
