Engine Room Relay Block Assembly No. 1 and Engine Room Junction Block Assembly No. 1 Inner Circuit

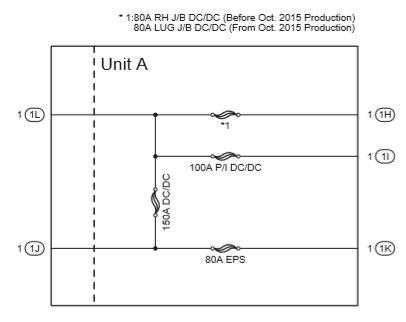

Fig 1: Engine Room R/B And J/B Assembly No. 1 Inner Circuit Diagram (Unit A)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

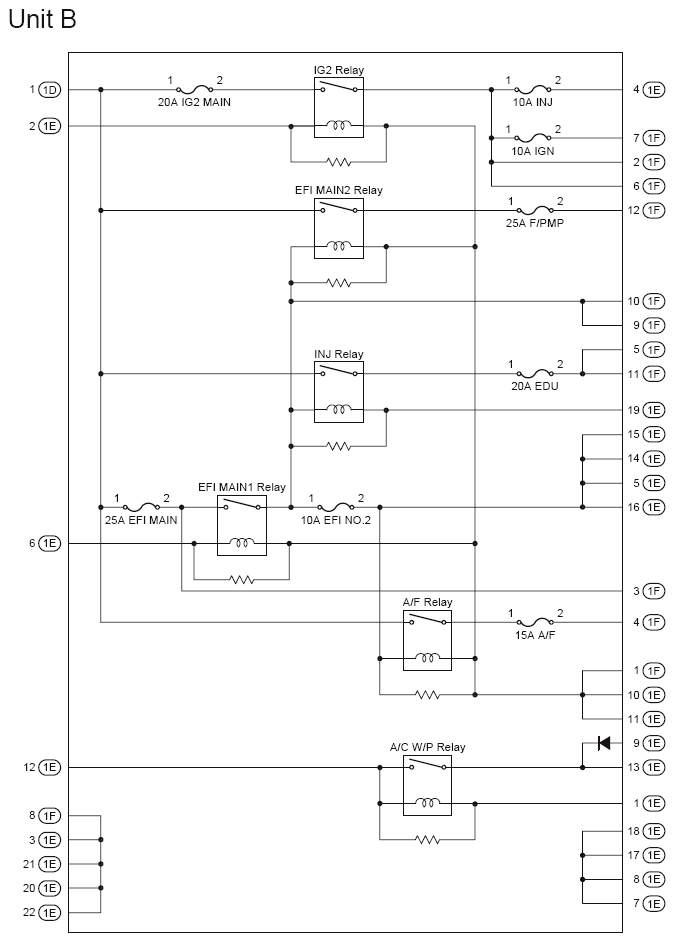

Fig 2: Engine Room R/B And J/B Assembly No. 1 Inner Circuit Diagram (Unit B) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B NO. 1 INNER CIRCUIT RELAY IDENTIFICATION (UNIT B)

RELAY DESCRIPTION
IG2 Relay
EFI Main2 Relay
INJ Relay
EFI Main1 Relay
A/F Relay
A/C W/P Relay

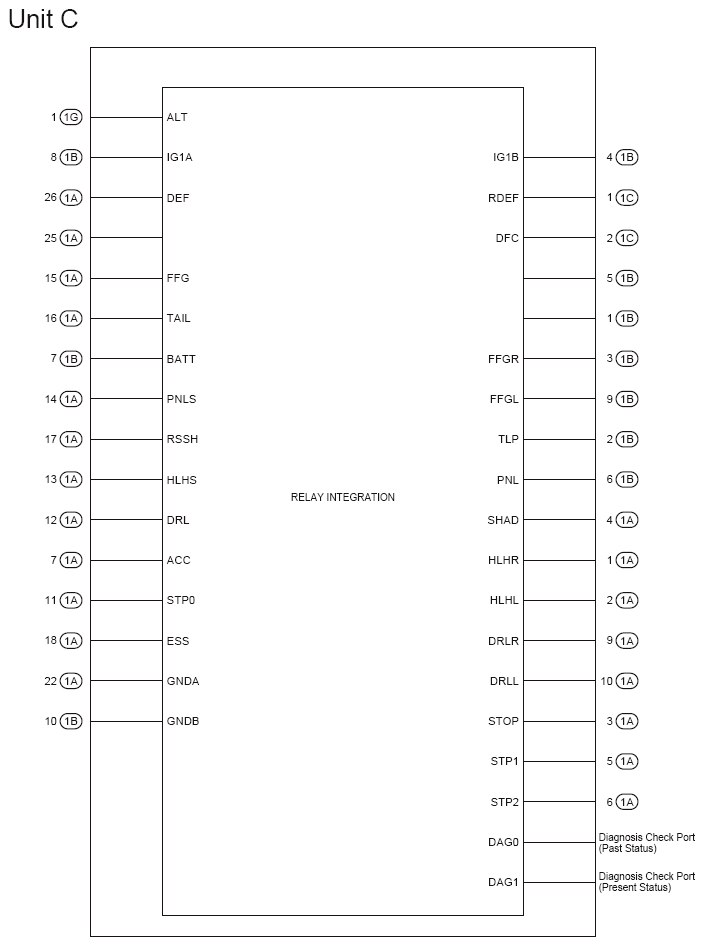

Fig 3: Engine Room R/B And J/B Assembly No. 1 Inner Circuit Diagram (Unit C)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
