Driver Side Door Entry Unlock Function does not Operate [09/2014 - ]: Wiring Diagram

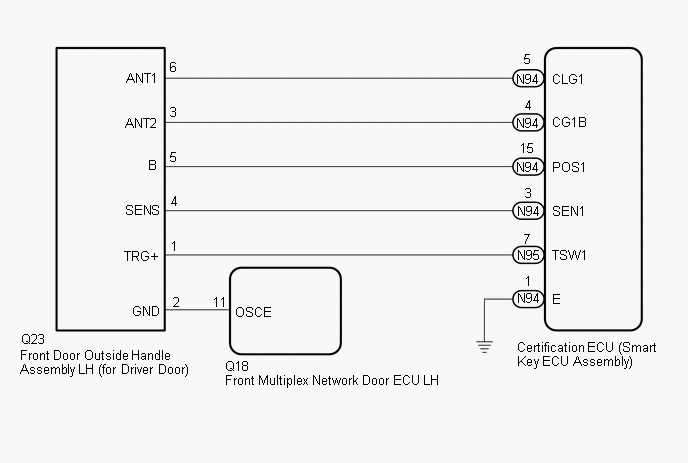

Fig 1: Driver Side Door Entry Unlock Function Wiring Diagram
GTY523957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
