DTC P0A1A-200: Generator Control Module; DTC P0A1A-792: Generator Control Module; DTC P0A1A-793: Generator Control Module [09/2014 - 10/2015]: Wiring Diagram

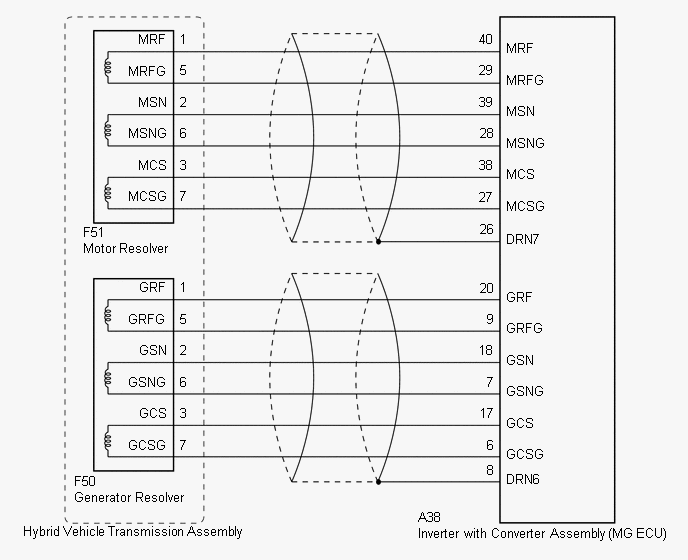

Fig 1: Inverter With Converter Assembly Wiring Diagram
GTY409483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
