DTC B27A5: Open in Front Floor Electrical Key Oscillator Circuit [08/2015 - 08/2019]: Procedure
- CHECK CONNECTOR CONNECTION
- Turn the engine switch off.
- Check that the connectors are properly connected to the certification ECU and indoor No. 1 electrical key antenna assembly (front floor).
OK
Connectors are properly connected.
Result:
NG
CONNECT CONNECTORS PROPERLY
Result:
OK
See step 2
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - INDOOR NO. 1 ELECTRICAL KEY ANTENNA)
- Disconnect the G26 certification ECU connector.
- Disconnect the i1 indoor No. 1 electrical key antenna assembly (front floor) connector.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition G26-7 (CLG5) - i1-1 (CLG3) Always Below 1 Ω G26-8 (CG5B) - i1-3 (CLGB) Always Below 1 Ω G26-15 (E) - Body ground Always Below 1 Ω G26-7 (CLG5) or i1-1 (CLG3) - Body ground Always 10 kΩ or higher G26-8 (CG5B) or i1-3 (CLGB) - Body ground Always 10 kΩ or higher
Result:
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result:
OK
See step 3
- CHECK CERTIFICATION ECU (OUTPUT TO INDOOR NO. 1 ELECTRICAL KEY ANTENNA [FRONT FLOOR])
- Connect the G26 certification ECU connector.TEXT IN ILLUSTRATION

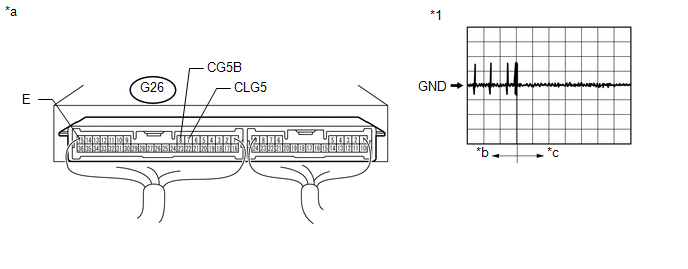

*1 Waveform - - *a Component with harness connected
(Certification ECU)*b Door is open then closed for 30 seconds *c Approximately 30 seconds from when the door is closed and after - - - Connect the i1 indoor No. 1 electrical key antenna assembly (front floor) connector.
- Using an oscilloscope, check the waveform.
OK
Tester Connection Switch Condition Tool Setting Specified Condition G26-7 (CLG5) - G26-15 (E) Procedure: - Engine switch off
- Door is open
- Door is closed
- 30 seconds elapse
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform) G26-8 (CG5B) - G26-15 (E) Procedure: - Engine switch off
- Door is open
- Door is closed
- 30 seconds elapse
2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
Result:
NG
REPLACE CERTIFICATION ECU
(Refer to REMOVAL [08/2015 - 08/2019] )
Result:
OK
See step 4
- Connect the G26 certification ECU connector.
- REPLACE INDOOR NO. 1 ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR)
- Temporarily replace the indoor No. 1 electrical key antenna assembly (front floor) with a new or normally functioning one (Refer to REMOVAL [08/2015 - 08/2021] ).
Result:
NEXT
See step 5
- CLEAR DTC
- Clear the DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019] ).
Result:
NEXT
See step 6
- CHECK FOR DTC
- Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019]
).
OK
DTC B27A5 is not output.
Result:
OK
END (INDOOR NO. 1 ELECTRICAL KEY ANTENNA ASSEMBLY IS DEFECTIVE)
Result:
NG
REPLACE CERTIFICATION ECU
(Refer to REMOVAL [08/2015 - 08/2019] )
- Check for DTCs (Refer to DTC CHECK / CLEAR [08/2015 - 08/2019]
).
