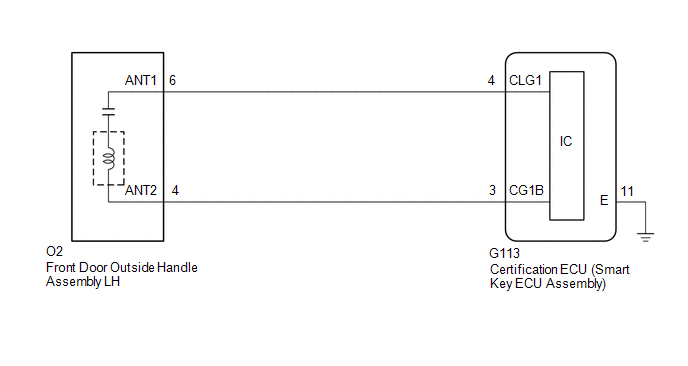

Driver Side Door Entry Lock Function does not Operate [08/2019 - ]: Wiring Diagram

GTY955157

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
