Terminals Of Ecu [08/2019 - ]

  1. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

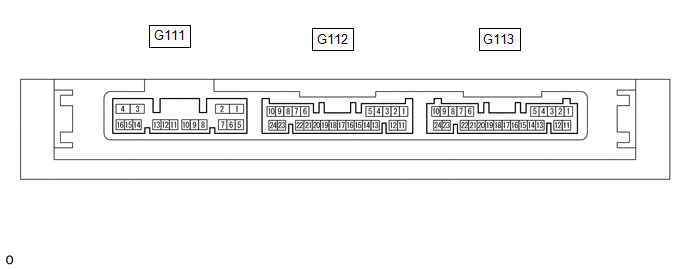

    GTY949016Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the G111 and G113 certification ECU (smart key ECU assembly) connectors.
    2. Measure the voltage and resistance according to the value(s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      G113-11 (E) - Body ground - W-B - Body ground Ground Always Below 1 Ω -
      G113-10 (+B) - G113-11 (E) Input B - W-B Power supply Always 11 to 14 V -
      G111-4 (CUTB) - G113-11 (E) Input LG - W-B Dark current cut pin* Always 11 to 14 V -
      1. *: In order to prevent the vehicle battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is installed in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of radio waves every 0.25 seconds, which form the detection area, stops).
    3. Reconnect the G111 and G113 certification ECU (smart key ECU assembly) connectors.
    4. Measure the voltage and check for pulses according to the value(s) in the table below.
      Tester Connection Input/Output Wiring Color Terminal Description Condition Specified Condition Related Data List Item
      G111-3 (IG1D) - G113-11 (E) Output Y - W-B IG power supply Engine switch off → on (IG) 1 V or less → 9 V or higher -
      G113-9 (ACCD) - G113-11 (E) Output R - W-B ACC power supply Engine switch off → on (ACC) 1 V or less → 8.5 V or higher -
      G113-4 (CLG1) - G113-11 (E) Output R - W-B Output to driver door electrical key antenna
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)

      		 Pulse generation
      (See waveform 1)      		 Overhead + Driver Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      		 Pulse generation
      (See waveform 2)
      G113-4 (CLG1) - G113-11 (E) Input R - W-B Input to driver door lock sensor
      (front door outside handle assembly LH) lock sensor ON signal is sent to the certification ECU (smart key ECU assembly)      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      5. Driver door lock sensor touched
      		 Pulse generation
      (See waveform 10)      		 D-Door Trigger Switch
      G113-4 (CLG1) - G113-11 (E) Input R - W-B Input to driver door unlock sensor
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near vehicle
      5. Driver door unlock sensor touched
      		 Pulse generation
      (See waveform 11)      		 D-Door Touch Sensor
      G113-3 (CG1B) - G113-11 (E) Output G - W-B Output to driver door electrical key antenna (terminal on opposite side of component from CLG1 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)

      		 Pulse generation
      (See waveform 3)      		 Overhead + Driver Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      		 Pulse generation
      (See waveform 4)
      G113-2 (CLG2) - G113-11 (E) Output B - W-B Output to front passenger door electrical key antenna
      (request signal (challenge) is sent to door electrical key antenna from certification ECU (smart key ECU assembly) to form detection area)      		 Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)

      		 Pulse generation
      (See waveform 1)      		 Overhead + Passenger Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      		 Pulse generation
      (See waveform 2)
      G113-2 (CLG2) - G113-11 (E) Input B - W-B Input to front passenger door lock sensor
      (front door outside handle assembly RH) lock sensor ON signal is sent to the certification ECU (smart key ECU assembly)      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      5. Front passenger door lock sensor touched
      		 Pulse generation
      (See waveform 10)      		 P-Door Trigger Switch
      G113-2 (CLG2) - G113-11 (E) Input B - W-B Input to front passenger door unlock sensor
      (when system is in unlock standby mode and unlock sensor is touched, door electrical key antenna sends unlock sensor input signal (sensing) to certification ECU (smart key ECU assembly))      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near vehicle
      5. Front passenger door unlock sensor touched
      		 Pulse generation
      (See waveform 11)      		 P-Door Touch Sensor
      G113-1 (CG2B) - G113-11 (E) Output W - W-B Output to front passenger door electrical key antenna (terminal on opposite side of component from CLG2 output terminal) Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)

      		 Pulse generation
      (See waveform 3)      		 Overhead + Passenger Side (key diagnostic mode)
      Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      		 Pulse generation
      (See waveform 4)
      G113-21 (CLG5) - G113-11 (E) Output R - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Front Room (key diagnostic mode)
      G113-20 (CG5B) - G113-11 (E) Output W - W-B Output to No. 1 indoor electrical key antenna assembly (front floor) (terminal on opposite side of component from CLG5 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Front Room (key diagnostic mode)
      G112-5 (TSW5) - G113-11 (E) Input G - W-B Luggage electrical key switch (unlock switch) signal input Luggage electrical key switch (unlock switch) off → on Pulse generation
      (See waveform 7)      		 Tr/B-Door Unlock SW
      G112-13 (TSW6) - G113-11 (E) Input L - W-B Luggage electrical key switch (lock switch) signal input Luggage electrical key switch (lock switch) off → on Pulse generation
      (See waveform 7)      		 Tr/B-Door Lock SW
      G112-15 (CLG6) - G113-11 (E) Output Y - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Rear Room (key diagnostic mode)
      G112-14 (CG6B) - G113-11 (E) Output W - W-B Output to No. 2 indoor electrical key antenna assembly (rear floor) (terminal on opposite side of component from CLG6 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Rear Room (key diagnostic mode)
      G112-4 (CLG7) - G113-11 (E) Output LG - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Back Door (inside) (key diagnostic mode)
      G112-3 (CG7B) - G113-11 (E) Output L - W-B Output to No. 3 indoor electrical key antenna assembly (inside luggage) (terminal on opposite side of component from CLG7 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
      		 Pulse generation
      (See waveform 5)      		 Overhead + Back Door (inside) (key diagnostic mode)
      G112-18 (RCO) - G113-11 (E) Output L - W-B Output to door control receiver
      (Power supply for door control receiver. Certification ECU (smart key ECU assembly) outputs 5 V when receiver starts operating.)      		 Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      3. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation
      (See waveform 8)      		 -
      G112-19 (CSEL) - G113-11 (E) Output P - W-B Communication channel switching circuit Procedure:
      1. Engine switch off
      2. All doors closed
      		 Below 1 V → pulse generation -
      G112-20 (RDAM) - G113-11 (E) Input G - W-B Door control receiver verifies data received from electrical key transmitter sub-assembly.
      Door control receiver sends data from electrical key transmitter sub-assembly to certification ECU (smart key ECU assembly) (Door control receiver intermittently grounds 12 V signal from certification ECU (smart key ECU assembly)).      		 Proceed:
      1. Engine switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
      		 Pulse generation
      (See waveform 9)      		 -
      G112-2 (CLG8) - G113-11 (E) Output B - W-B Output to electrical key antenna (outside luggage compartment) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage electrical key switch off → on
      		 Pulse generation
      (See waveform 6)      		 Overhead + Back Door (key diagnostic mode)
      G112-1 (CG8B) - G113-11 (E) Output W - W-B Output to electrical key antenna (outside luggage compartment) (terminal on opposite side of component from CLG8 output terminal) Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage electrical key switch off → on
      		 Pulse generation
      (See waveform 6)      		 Overhead + Back Door (key diagnostic mode)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    5. Using an oscilloscope, check waveform 1.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 1: Waveform 1
      GTY448796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 1 (REFERENCE)

      Item Content
      Tester Connection G113-4 (CLG1) - G113-11 (E)
      G113-2 (CLG2) - G113-11 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    6. Using an oscilloscope, check waveform 2.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 2: Waveform 2
      GTY427636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 2 (REFERENCE)

      Item Content
      Tester Connection G113-4 (CLG1) - G113-11 (E)
      G113-2 (CLG2) - G113-11 (E)
      Tool Setting 5 V/DIV., 100 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    7. Using an oscilloscope, check waveform 3.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 3: Waveform 5
      GTY504760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 3 (REFERENCE)

      Item Content
      Tester Connection G113-3 (CG1B) - G113-11 (E)
      G113-1 (CG2B) - G113-11 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought inside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    8. Using an oscilloscope, check waveform 4.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 4: Waveform 6
      GTY499393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 4 (REFERENCE)

      Item Content
      Tester Connection G113-3 (CG1B) - G113-11 (E)
      G113-1 (CG2B) - G113-11 (E)
      Tool Setting 5 V/DIV., 100 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors closed
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    9. Using an oscilloscope, check waveform 5
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 5: Waveform 3
      GTY426276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a For 30 seconds after closing any door using the door outside handle
      *b 30 seconds or more have elapsed after closing any door using the door outside handle
      WAVEFORM 5 (REFERENCE)

      Item Content
      Tester Connection G113-21 (CLG5) - G113-11 (E)
      G113-20 (CG5B) - G113-11 (E)
      G112-15 (CLG6) - G113-11 (E)
      G112-14 (CG6B) - G113-11 (E)
      G112-4 (CLG7) - G113-11 (E)
      G112-3 (CG7B) - G113-11 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door using the door outside handle
    10. Using an oscilloscope, check waveform 6.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 6: Waveform 8
      GTY432845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WAVEFORM 6 (REFERENCE)

      Item Content
      Tester Connection G112-2 (CLG8) - G113-11 (E)
      G112-1 (CG8B) - G113-11 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. Luggage electrical key switch off → on
    11. Using an oscilloscope, check waveform 7.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 7: Waveform 5
      GTY379040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Checking for switch ON signal at short intervals
      WAVEFORM 7 (REFERENCE)

      Item Content
      Tester Connection G112-5 (TSW5) - G113-11 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Luggage electrical key switch (unlock switch) off → on
      WAVEFORM 7 (REFERENCE)

      Item Content
      Tester Connection G112-13 (TSW6) - G113-11 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Luggage electrical key switch (lock switch) off → on
    12. Using an oscilloscope, check waveform 8.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 8: Waveform 1
      GTY376258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switch of electrical key transmitter sub-assembly pressed
      WAVEFORM 8 (REFERENCE)

      Item Content
      Tester Connection G112-18 (RCO) - G113-11 (E)
      Tool Setting 2 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      3. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
    13. Using an oscilloscope, check waveform 9.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 9: Waveform 2
      GTY367752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Before lock or unlock switch of electrical key transmitter sub-assembly pressed
      *b After lock or unlock switch of electrical key transmitter sub-assembly pressed
      WAVEFORM 9 (REFERENCE)

      Item Content
      Tester Connection G112-20 (RDAM) - G113-11 (E)
      Tool Setting 5 V/DIV., 500 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. All doors locked
      3. Electrical key transmitter sub-assembly not inside vehicle
      4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
      5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed
    14. Using an oscilloscope, check waveform 10.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 10: Waveform 3
      GTY430392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Lock sensor not touched
      *b Lock sensor touched
      WAVEFORM 10 (REFERENCE)

      Item Content
      Tester Connection G113-4 (CLG1) - G113-11 (E)
      G113-2 (CLG2) - G113-11 (E)
      Tool Setting 5 V/DIV., 40 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors closed
      4. All doors locked through wireless operation

        (electrical key transmitter sub-assembly brought outside detection area*)

      5. Lock sensor not touched → touched
      1. *: For details about the entry function detection area, refer to Operation Check.

        Refer to OPERATION CHECK [08/2019 - 08/2022] , or refer to OPERATION CHECK [08/2022 - ]

    15. Using an oscilloscope, check waveform 11.
      NOTE:

      The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      Fig 11: Waveform 4
      GTY438196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Unlock sensor not touched
      *b Unlock sensor touched
      WAVEFORM 11 (REFERENCE)

      Item Content
      Tester Connection G113-4 (CLG1) - G113-11 (E)
      G113-2 (CLG2) - G113-11 (E)
      Tool Setting 5 V/DIV., 50 ms/DIV.
      Condition Procedure:
      1. Engine switch off
      2. Electrical key transmitter sub-assembly brought outside vehicle
      3. All doors locked
      4. Electrical key transmitter sub-assembly not near vehicle
      5. Unlock sensor not touched → touched
  2. CHECK INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY AND MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
    1. POWER DOOR LOCK CONTROL SYSTEM

      Refer to SYSTEM DIAGRAM [08/2019 - ]

    2. WIRELESS DOOR LOCK CONTROL SYSTEM

      Refer to TERMINALS OF ECU [08/2019 - ]

    3. GLASS HATCH OPENER SYSTEM

      Refer to TERMINALS OF ECU [08/2019 - ]

scientia non olet · About LEMON Manuals
