LEXUS ENFORM System (Diagnostics - Introduction)
>>
LEXUS ENFORM System
>>
System Diagram [08/2015 - 08/2018]
>>
System Diagram [08/2015 - 08/2018]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [08/2015 - 08/2018]

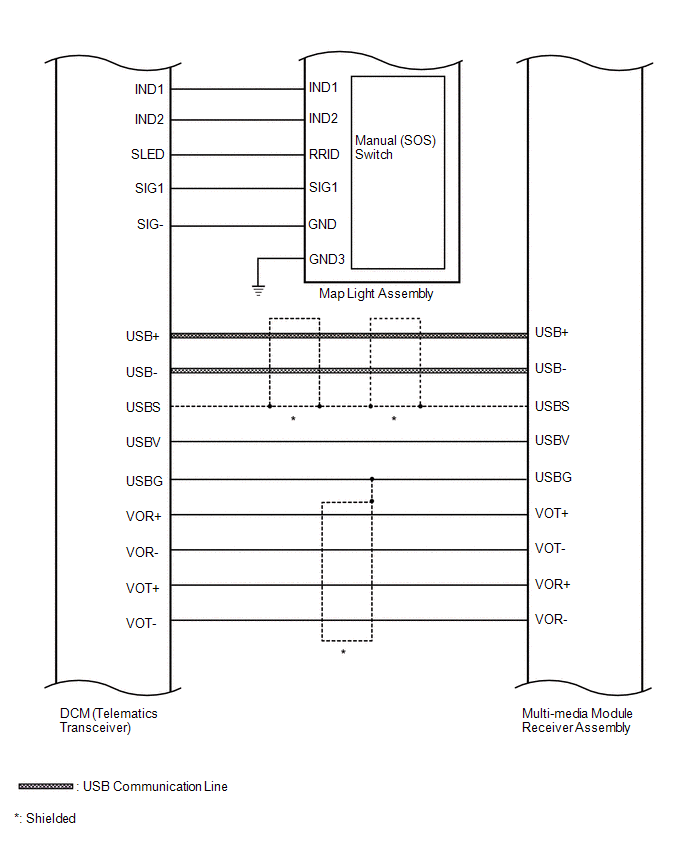

Fig 1: Lexus Enform System Wiring Diagram (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

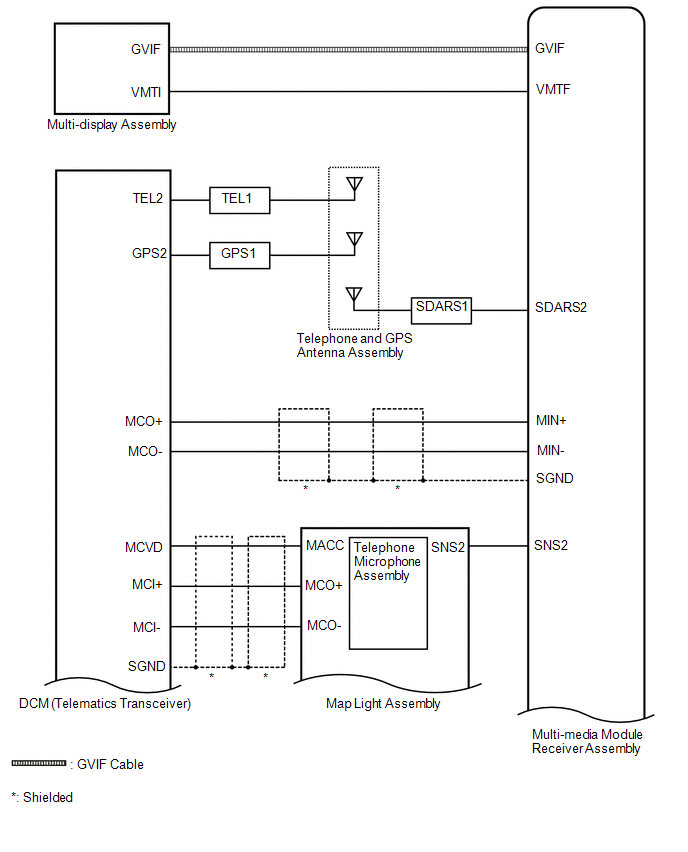

Fig 2: Lexus Enform System Diagram (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

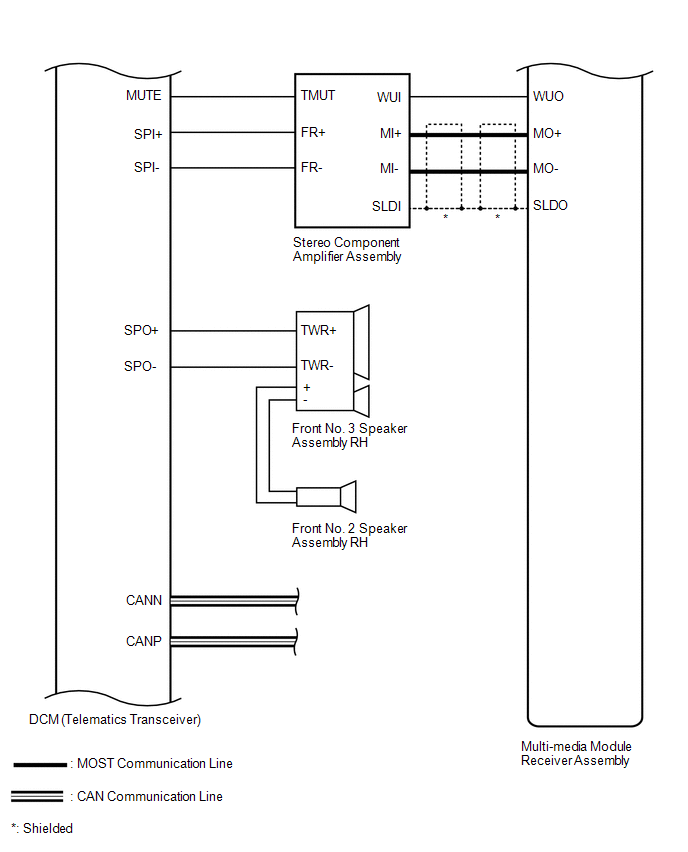

Fig 3: Lexus Enform System Diagram (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Lexus Enform System Diagram (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
