Navigation Receiver Assembly Power Source Circuit [08/2015 - 08/2019]: Procedure

1. Disconnect the multi-media module receiver assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   H11-12 (GND1) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   H11-15 (IG) - Body ground	Engine switch on (IG)	11 to 14 V
   H11-16 (ACC1) - Body ground	Engine switch on (ACC)	11 to 14 V
   H11-17 (+B1) - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION

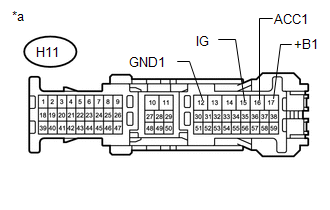

   *a	Front view of wire harness connector (to Multi-media Module Receiver Assembly)

Result:

OK

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

(Refer to PROBLEM SYMPTOMS TABLE [08/2015 - 08/2019] )

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
