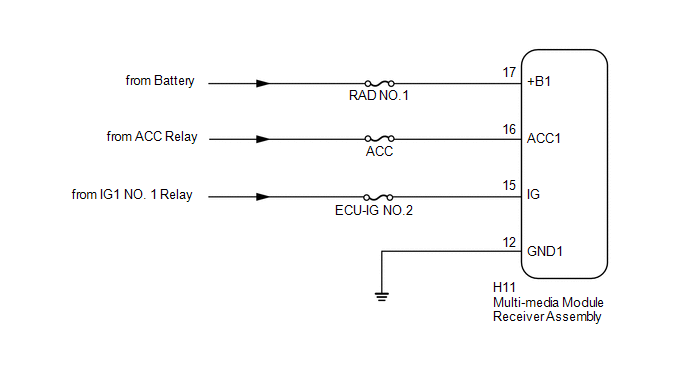

Navigation Receiver Assembly Power Source Circuit [08/2015 - 08/2019]: Wiring Diagram

GTY469558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
