System Diagram [08/2019 - 08/2021]

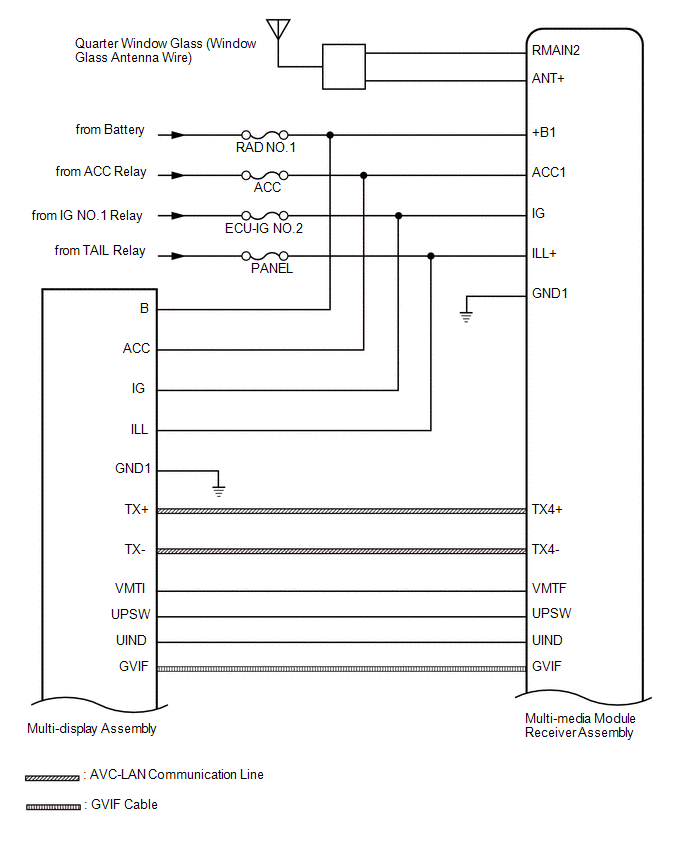

Fig 1: Audio And Visual System (W/O Navigation System) Wiring Diagram (1 Of 7) [08/2019 - 08/2021]
GTY959055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

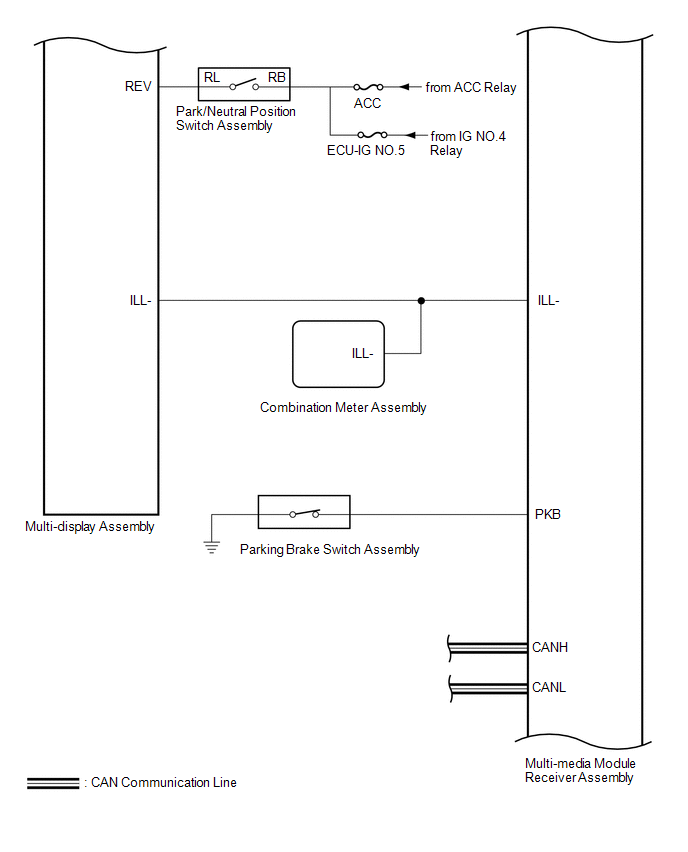

Fig 2: Audio And Visual System (W/O Navigation System) Wiring Diagram (2 Of 7) [08/2019 - 08/2021]
GTY962718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

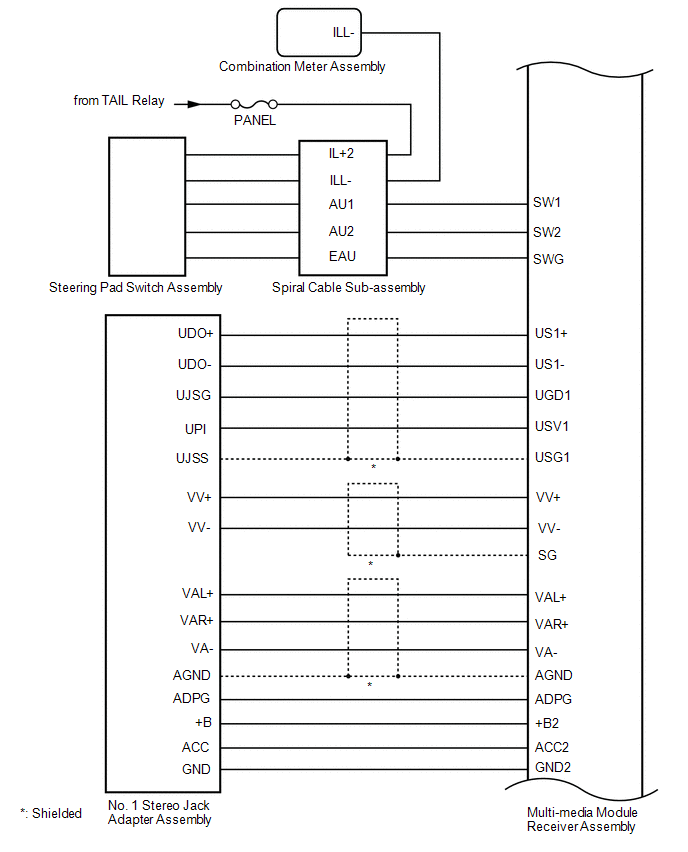

Fig 3: Audio And Visual System (W/O Navigation System) Wiring Diagram (3 Of 7) [08/2019 - 08/2021]
GTY962933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

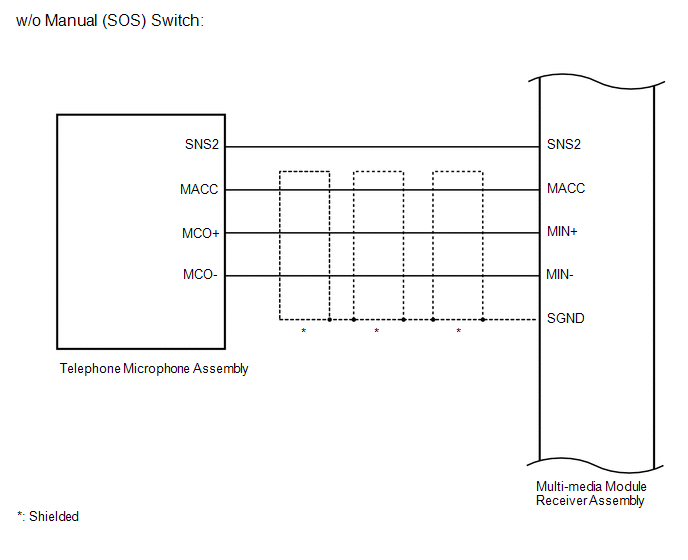

Fig 4: Audio And Visual System (W/O Navigation System) Wiring Diagram (4 Of 7) [08/2019 - 08/2021]
GTY795905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Audio And Visual System (W/O Navigation System) Wiring Diagram (5 Of 7) [08/2019 - 08/2021]

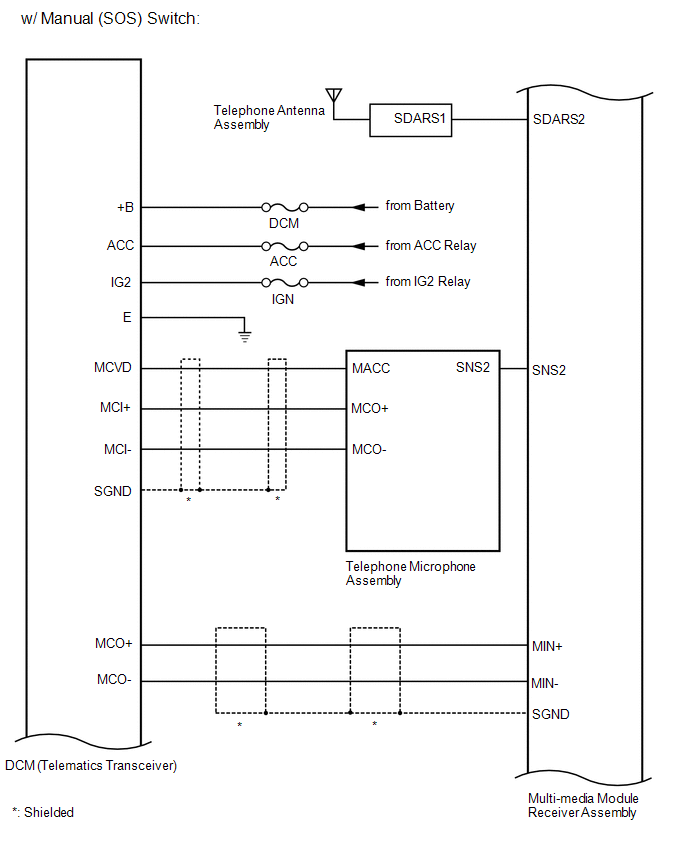

GTY960430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

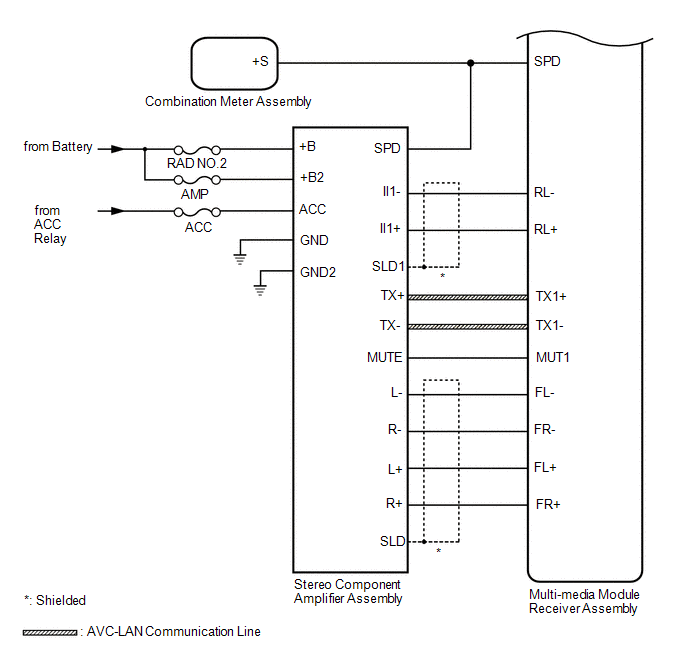

Fig 6: Audio And Visual System (W/O Navigation System) Wiring Diagram (6 Of 7) [08/2019 - 08/2021]
GTY679490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

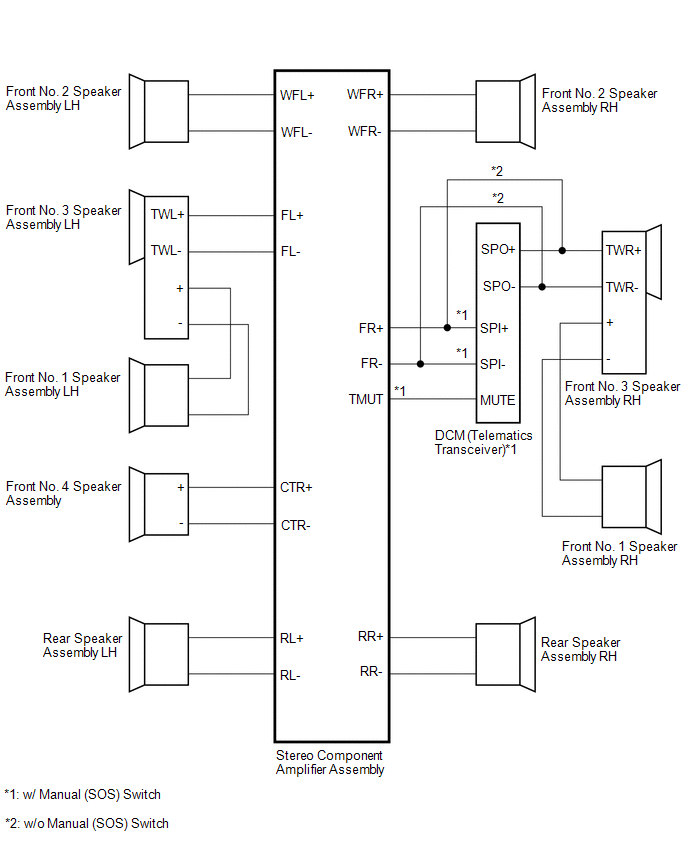

Fig 7: Audio And Visual System (W/O Navigation System) Wiring Diagram (7 Of 7) [08/2019 - 08/2021]
GTY633528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
