Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Inner Circuit

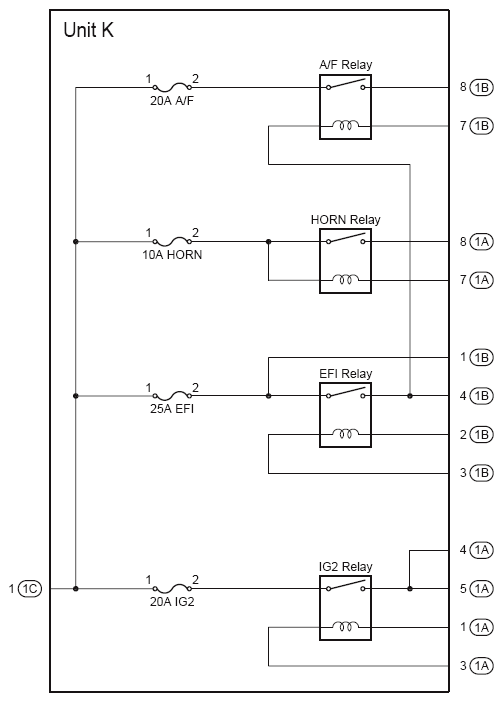

Fig 1: Engine Room Relay Block And J/B Assembly Inner Circuit Diagram (Unit K)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
A/F Relay
Horn Relay
EFI Relay
IG2 Relay
