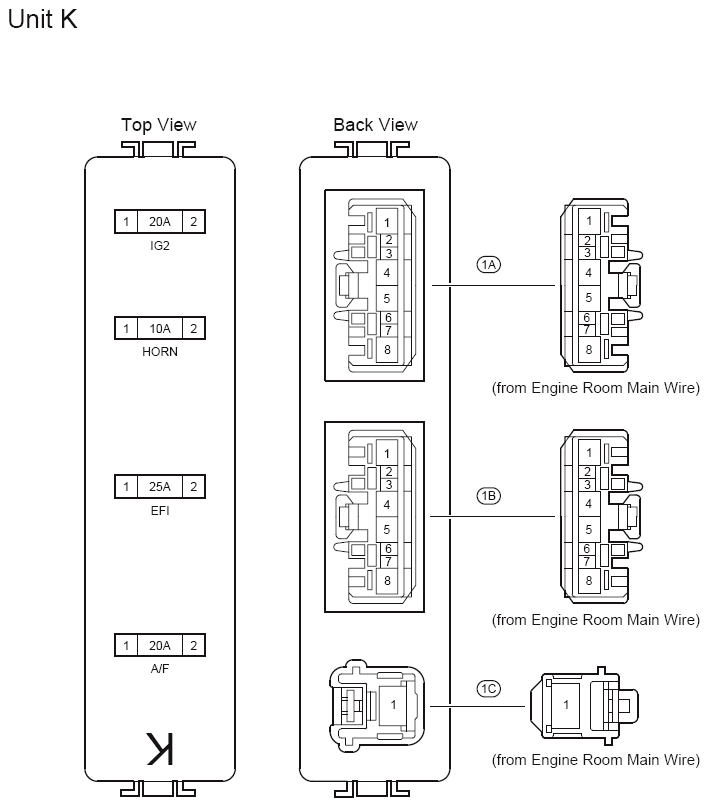

Engine Room Relay Block Assembly And Engine Room Junction Block Assembly: Front Fender Apron LH (Unit K): Notes

For additional information, refer to Figure.

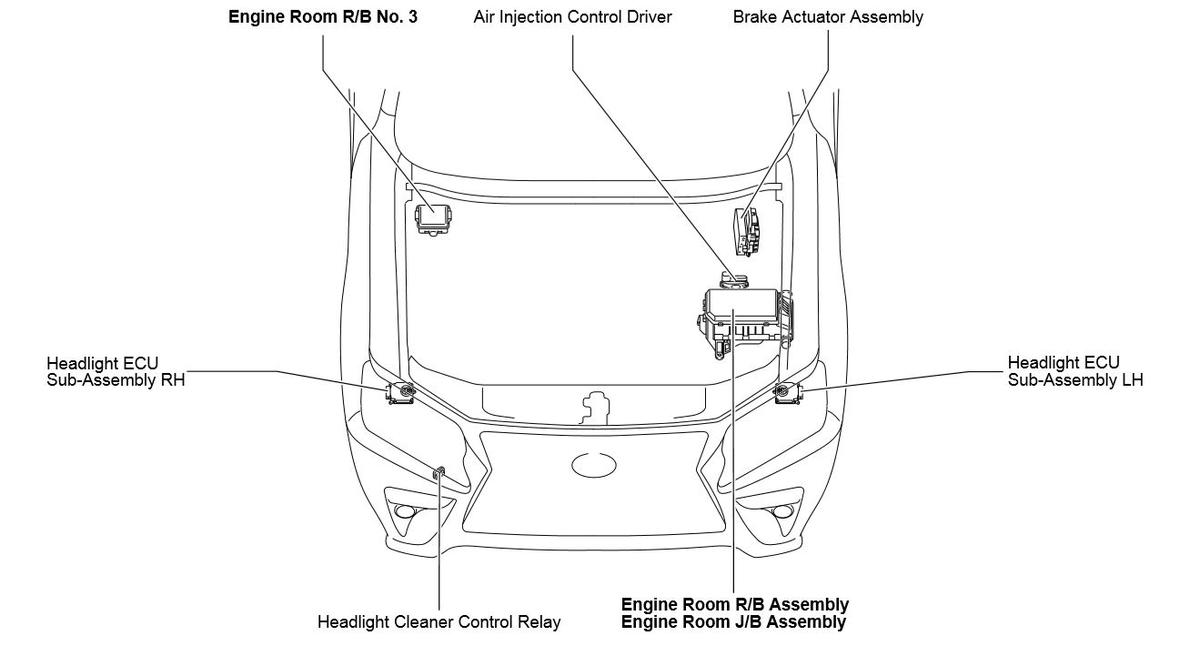

Fig 1: Engine Room R/B And J/B Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
